Description:

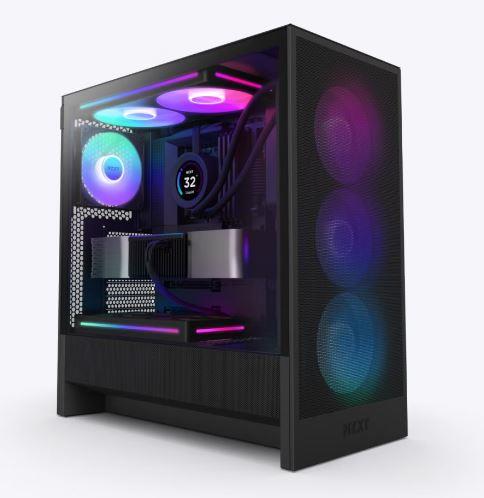

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

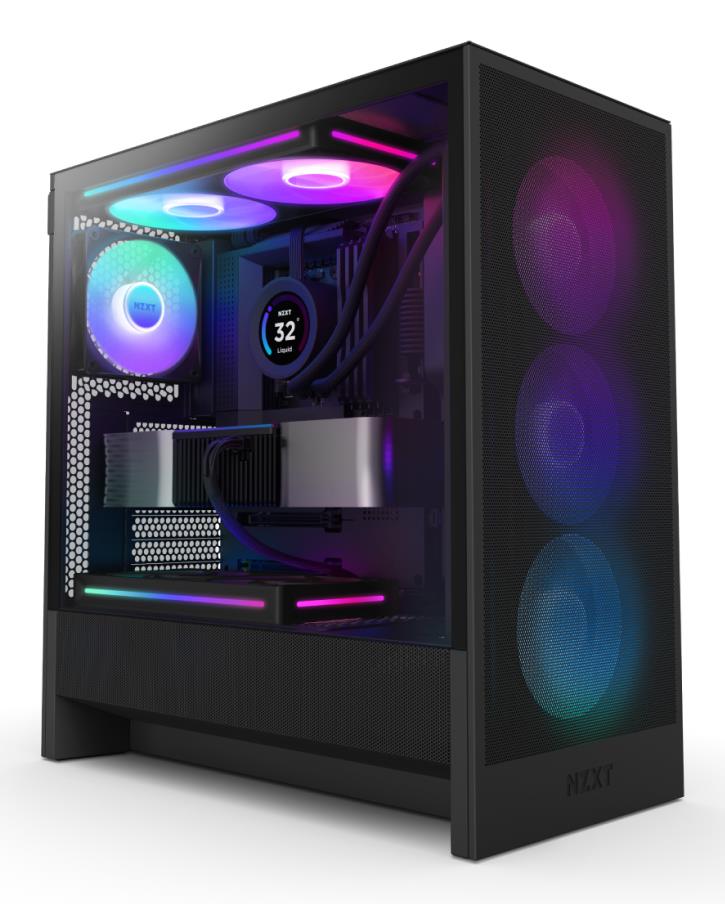

Pre-Installed Fans
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
*Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

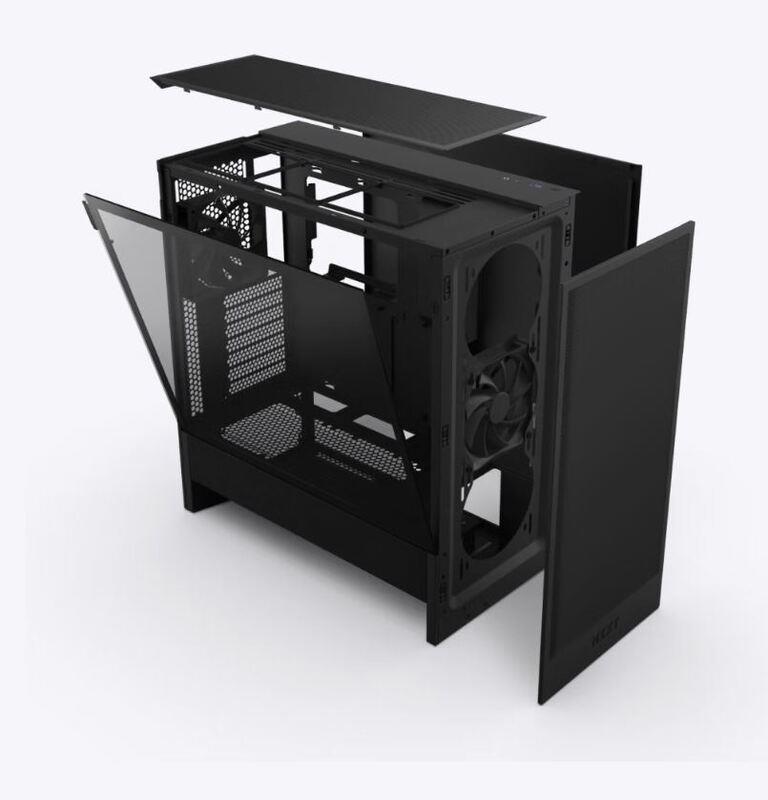

Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included)
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting
- Effortlessly route and conceal cables using the wide channels, hooks, and straps
Summary: NZXT H5 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5″. Width: 225 mm, Depth: 430 mm, Height: 465 mm. Noise level: 23.3 dB, Fan connector: 3-pin
Vendor Homepage: https://nzxt.com/product/h5-flow-rgb
Category Code: CAS
CnCode: 84733080
Unit Box Height: 0.53
Unit Box Length: 0.56
Unit Box Width: 0.31
Anti-dust filter: Yes
Cable management: Yes
Form factor: Midi Tower
Illumination: Yes
Illumination colour: Multi
Illumination location: Case fans
Material: SGCC/Tempered glass
Maximum CPU cooler height: 175
Maximum graphics card length: 410
Maximum PSU length: 200
Number of 2.5″ bays: 2
Number of 3.5″ bays: 1
Number of expansion slots: 7
On/off button: Yes
Product colour: Black
Side window: Yes
Suitable for: Gaming
Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Type: PC
Power supply included: No
Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Bottom fans diameters supported: 120
Fan 2 maximum air pressure: 1.05
Fan 2 maximum airflow: 60.2
Fan speed: 1350 – 1700
Front fans diameters supported: 120/140
Front fans installed: 3x 120 mm
Front radiator sizes supported: 360
Liquid cooling capability: Yes
Maximum air pressure: 1.27
Maximum airflow: 50.1
Number of bottom fans supported (max): 2
Number of front fans supported (max): 3
Number of rear fans supported (max): 1
Number of top fans supported (max): 2
Rear fans diameters supported: 120
Rear fans installed: 1x 120 mm
Top fans diameters supported: 120/140
Top radiator sizes supported: 240
Supported HDD sizes: 2.5/3.5
Manual: Yes
Depth: 430
Height: 465
Weight: 7630
Width: 225
Fan connector: 3-pin
Noise level: 23.3
Model name: H5 FLOW RGB 2024
Case product features: Transparent panel
Units per Shipping Box: 1
Unit Calculated Volume: 0.09201
Unit Calculated Weight: 9.6
