Description:
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
- 13th Generation Intel® Core™ i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs
- 14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
- For professional-grade performance, the 13th Gen Intel Core™ i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
- For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
- Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
- Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
- Qualified for 24×7 operation

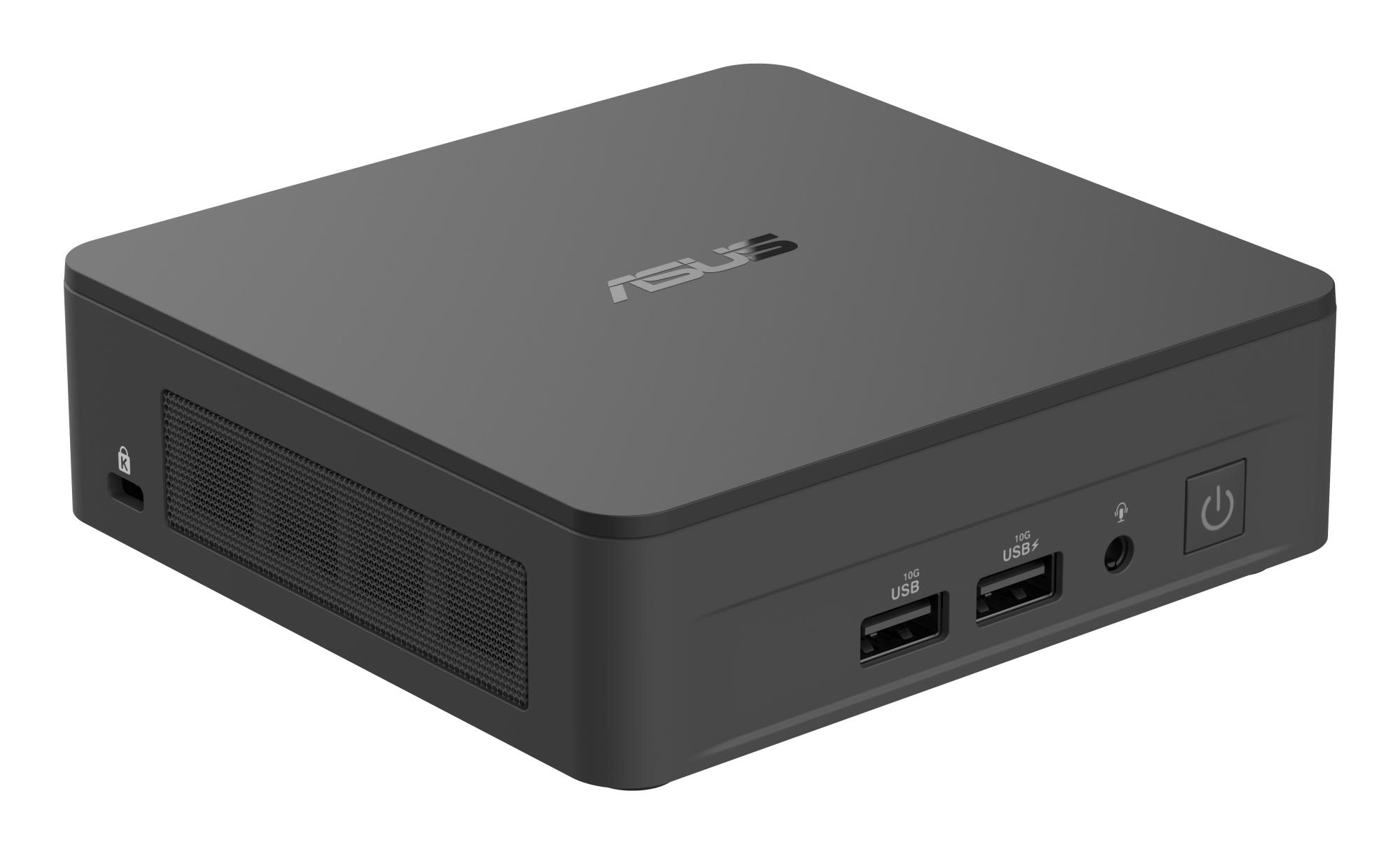

Summary: ASUS NUC 13 RNUC13ANKI500002I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
Vendor Homepage: https://www.asus.com/displays-desktops/nucs/nuc-mini-pcs/asus-nuc-13-pro/
Category Code: COK
CnCode: 84714900
Unit Box Height: 0.105
Unit Box Length: 0.195
Unit Box Width: 0.17
Chassis type: UCFF
Cooling type: Active
LED indicators: Yes
On/off switch: Yes
Product colour: Black
Product type: Mini PC barebone
VESA mounting: Yes
Built-in processor: Yes
Efficient cores: 8
Efficient-core Max Turbo Frequency: 3.4
Performance cores: 4
Performance-core Max Turbo Frequency: 4.6
Processor boost frequency: 4.6
Processor cache: 12
Processor cache type: Smart Cache
Processor cores: 12
Processor family: Intel® Core™ i5
Processor generation: 13th gen Intel® Core™ i5
Processor manufacturer: Intel
Processor model: i5-1340P
Processor threads: 16
Internal memory installed: No
Maximum internal memory: 64
Memory slots type: SO-DIMM
Number of memory slots: 2
Supported memory clock speeds: 2400/2666/3200
Supported memory types: DDR4-SDRAM
Number of storage drives supported: 2
NVMe: Yes
SSD form factor: M.2
Storage drive sizes supported: M.2
Storage drives installed: No
Supported storage drive types: SSD
Graphics card family: Intel
On-board graphics card: Yes
On-board graphics card model: Intel Iris Xe Graphics
Built-in speaker(s): No
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Combo headphone/mic port: Yes
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PCI Express slots version: 4.0
Motherboard form factor: UCFF
Number of processors supported: 1
Power supply: 120
Power supply type: External AC adapter
Depth: 112
Height: 36.81
Weight: 510
Width: 117
Power cord included: Yes
Model: RNUC13ANKI500002I
Product model code: NUC13ANBi5
Units per Shipping Box: 5
Unit Calculated Volume: 0.0059826
Product Net Weight: 0.9
Unit Calculated Weight: 1.777
