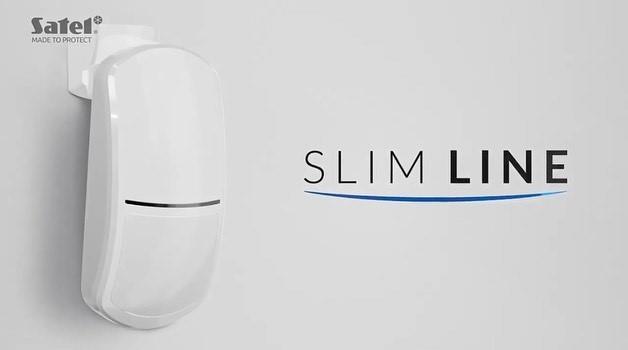

Description: Elegant, slim enclosure is made of high quality plastic.
Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same. – compliance with EN 50131 Grade 3
– configuring operating parameters: buttons and keyfob
– end-of-line resistors – 1.1 kO
– end-of-line resistors – 4.7 kO, 5.6 kO
– plug-in terminal block
– electronics board protecting cover
– number of available LED indicator colors: 7
– active IR anti-masking
– creep zone protection
Vendor Homepage: www.satel.pl/en/product/10162/SLIM-DUAL-PRO,Dual-tech-PIR+MW-motion-detector-with-IR-anti-masking-function
Detector Type: Motion
Detection technology: PIR
Detecting area: 20 m x 24 m
Alarm output: 40 mA / 24 V DC
Maximum current: 85
Operating temperature range: -10°C…+55°C
Power supply requirements: 12 V DC
Dimensions: 62 x 137 x 42 mm
Shipping box quantity: 1
Shipping Box Depth: 18
Shipping Box Height: 7
Shipping Box Weight: 0.17
Shipping Box Width: 5
Unit Brutto Volume: 0.00063
Unit Net Weight: 0.144
Unit Gross Weight: 0.17
CnCode: 85311030
Unit Box Width: 0.05
Unit Box Length: 0.18
Unit Box Height: 0.07
Full Description Line: Detector Type Motion|Detection technology PIR|Detecting area 20 m x 24 m|Alarm output 40 mA / 24 V DC|Maximum current 85 mA|Operating temperature range -10°C…+55°C|Power supply requirements 12 V DC|Dimensions 62 x 137 x 42 mm
Category Code: MDE
