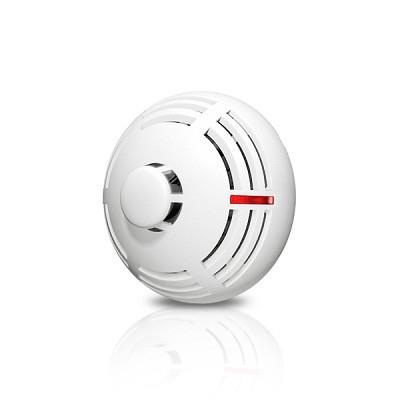

Description: The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
– unique Swirl chamber for increased smoke sensitivity
– EN54-7 compliant smoke detection
– EN54-5 compliant heat detection
– selectable operating mode (smoke, heat, multisensor)
– line type configuration (NO/NC/2EOL) with DIP switches
– precision stainless steel Hexamesh filter
– smoke chamber dirt build-up indicator
– easy installation with detachable base
– compatible with all 12V alarm panels
Vendor Homepage: http://www.satel.pl/en/produktid/466
Detector Type: Fire/Special
Operating temperature range: -10 C+55 C
Power supply requirements: 12 V DC
Current drain: 24
Dimensions: 108 x 61 mm
Shipping box quantity: 1
Shipping Box Depth: 12
Shipping Box Height: 7
Shipping Box Weight: 0.2
Shipping Box Width: 12
Unit Brutto Volume: 0.001008
Unit Net Weight: 0.164
Unit Gross Weight: 0.2
CnCode: 85311030
Unit Box Width: 0.12
Unit Box Length: 0.12
Unit Box Height: 0.07
Full Description Line: Detector Type Fire/Special|Operating temperature range -10 C+55 C|Power supply requirements 12 V DC|Current drain 24 mA|Dimensions 108 x 61 mm
Category Code: MDE
