Description:
– Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and IP Video input, Auto-detect

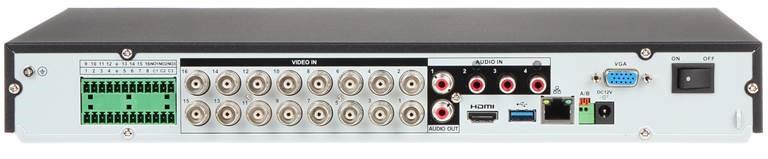

– 16-channel BNC interface
– Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
– All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);
– IP: 16+16 channels, each channel up to 8MP, Max 128 Mbps incoming bandwidth
– AI Coding/H.265+/H.265/H.264+/H.264 video compression
– G.711A, G.711U, PCM audio compression,
– 2x SATA interface up to 20 TB storage
– VGA/HDMI up to 4K output
– 1 RJ-45, 2x USB ports, RS485
– No front panel control, 4/1 Audio I/O, 16/3 Alarm I/O
– 1U case, mouse included
– ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
– Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
– AI: 16 channels Smart motion detection + Search by target classification (Human, Vehicle)
– 1 channel Perimeter Protection – Human/Vehicle secondary recognition for tripwire and intrusion, 10 IVS for each channel, Search by target classification (Human, Vehicle)
– 1 channel Face Recognition (only support analog camera), Max 12 face pictures/sec processing,
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/4K-N/5MP-Series/XVR5216A-4KL-I3
DVR type: 16 Channel
SATA: Yes/Yes
Camera Compatibility: AHD 1080P/AHD 4MP/AHD 5MP/Analog/HDCVI 1080P/HDCVI 4K/HDCVI 4MP/HDCVI 5MP/HDCVI 6MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 3MP/HD-TVI/TurboHD 4MP/HD-TVI/TurboHD 5MP/HD-TVI/TurboHD 720P/IP
15pin D-sub: 1
HDMI: 1
RS-485: 1
USB 2.0: 2
Power supply requirements: DC12V, 4A
Dimensions: 375.0 mm × 289.0 mm × 53.0 mm
Shipping box quantity: 1
Shipping Box Depth: 43
Shipping Box Height: 36.5
Shipping Box Weight: 3
Shipping Box Width: 14.2
Unit Brutto Volume: 0.02229
Unit Net Weight: 1.64
Unit Gross Weight: 3
CnCode: 85219000
Unit Box Width: 0.142
Unit Box Length: 0.43
Unit Box Height: 0.365
Full Description Line: 16 Channel|Camera Compatibility Analog/IP/AHD 1080P/AHD 4MP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4K/HDCVI 4MP/HDCVI 5MP/HDCVI 6MP/HDCVI 8MP/HD-TVI/TurboHD 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 3MP/HD-TVI/TurboHD 4MP/HD-TVI/TurboHD 5MP|SATA|1x15pin D-sub|1xHDMI|2xUSB 2.0|1xRS-485|DC12V, 4A
Category Code: STD
