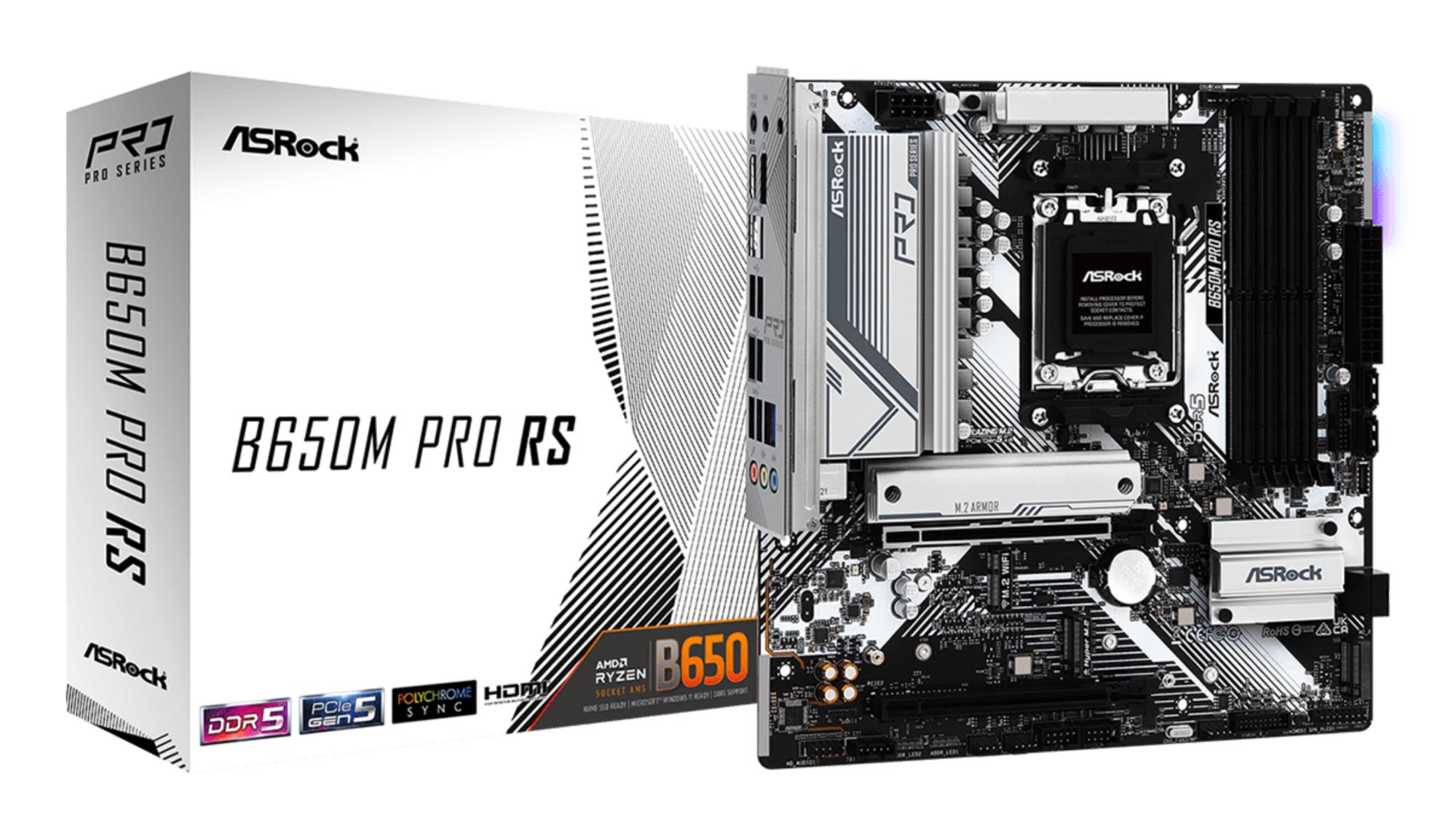

Mainboard ASROCK AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 16x 1xPCI-Express 4.0 16x 1xM.2 1xHDMI 1xDisplayPort 4xUSB 2.0 3xUSB 3.2 1xUSB-C 1xRJ45 B650MPRORS

Description: – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
– 8+2+1 Power Phase, Dr.MOS
– Supports DDR5 6000+ MHz (OC)
– 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
– Graphics Output Options: HDMI, DisplayPort
– Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
– 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4); 1 Hyper M.2 (PCIe Gen4 x4); 1 M.2 (PCIe Gen4 x2)
– 1 USB 3.2 Gen2 Type A+C (Rear); 1 USB 3.2 Gen1 Type-C (Front); 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– Dragon 2.5G LAN
Vendor Homepage: www.asrock.com/MB/AMD/B650M%20Pro%20RS/index.asp
Model: B650M Pro RS
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 6000
Memory slots: 4
M.2: 1
PCI-Express 3.0 16x: 1
PCI-Express 4.0 16x: 1
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
SATA: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10
TPM: Header
Included Accessories: – 1 x User Manual
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Shipping box quantity: 1
Shipping Box Depth: 28
Shipping Box Height: 26.5
Shipping Box Weight: 1.244
Shipping Box Width: 6.5
Unit Brutto Volume: 0.004823
Unit Net Weight: 1.2
Unit Gross Weight: 1.24
CnCode: 84733020
Unit Box Width: 0.065
Unit Box Length: 0.28
Unit Box Height: 0.265
Full Description Line: AMD B650|SAM5|Micro-ATX|DDR5|6000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
