Description: X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
7+1+1+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 4.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key for WiFi

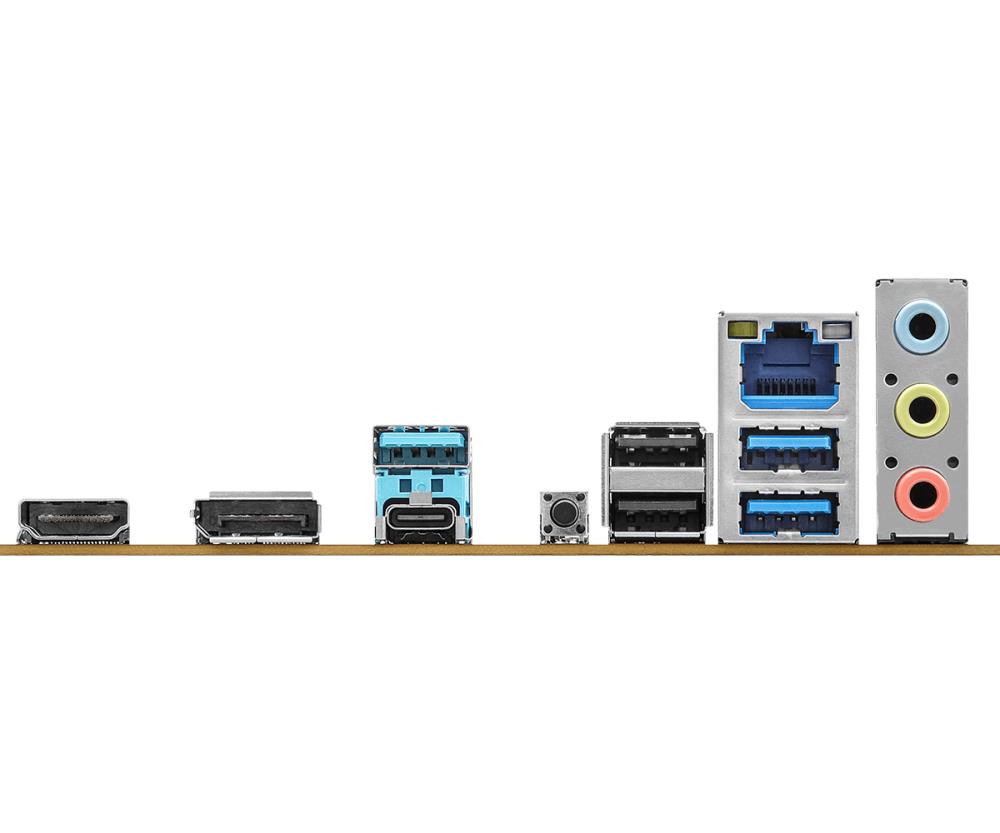

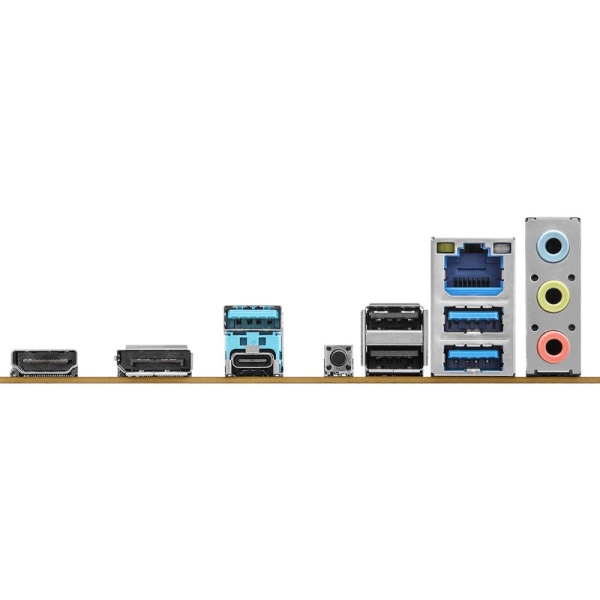

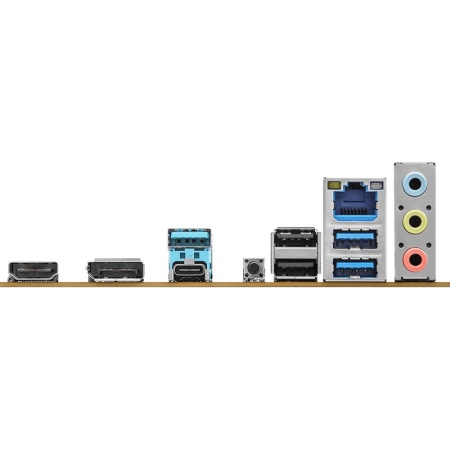

Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
Supports BIOS Flashback
Vendor Homepage: www.asrock.com/mb/Intel/B860M-X/index.asp

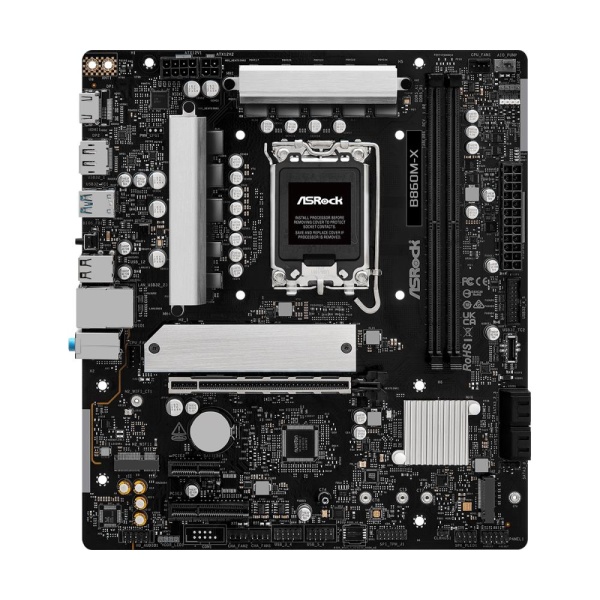

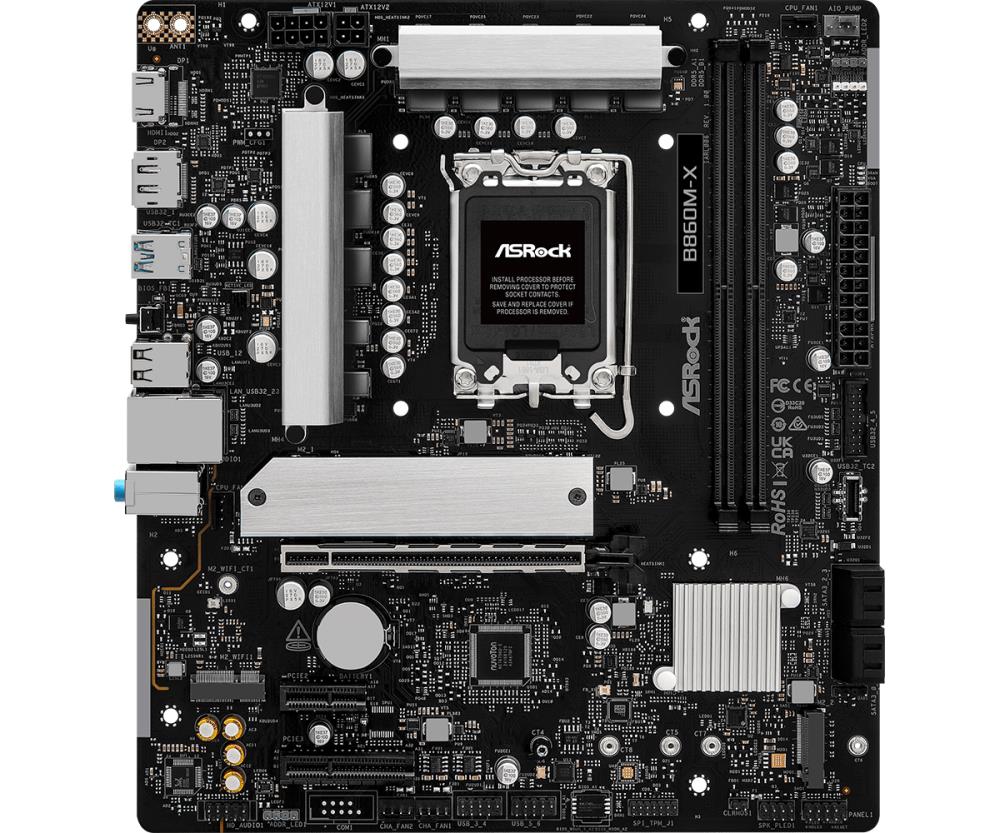

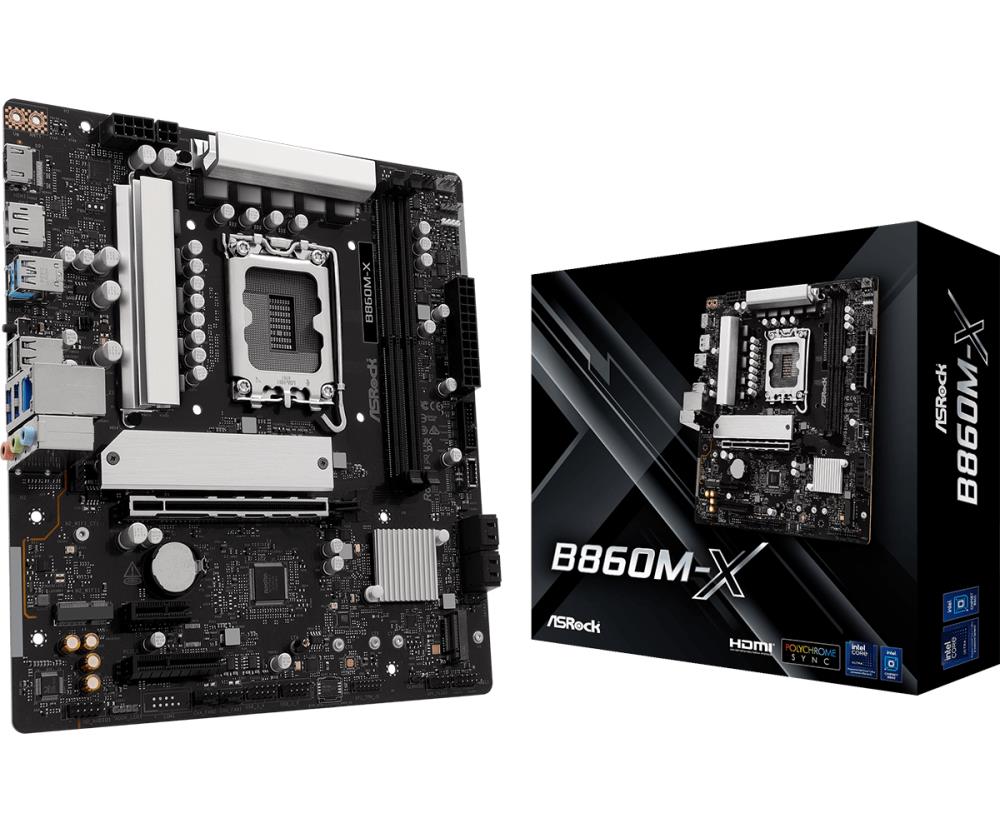

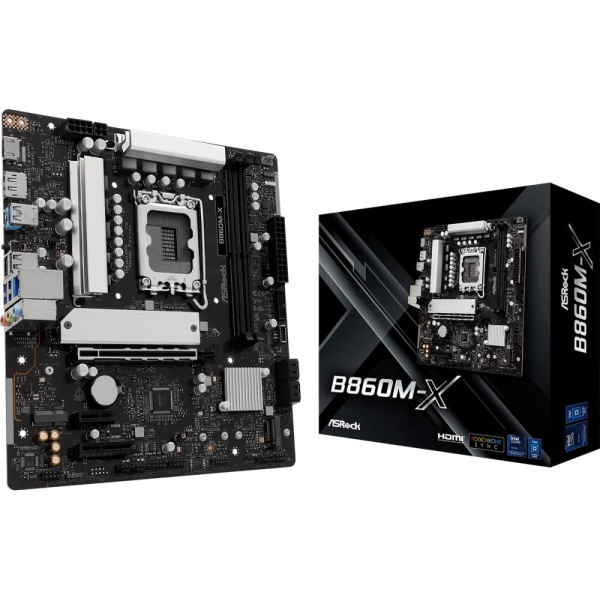

Model: B860M-X
Chipset: Intel B860 Express
Socket: LGA1851
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 9066
Memory slots: 2
M.2: 1
PCI-Express 4.0 16x: 1
PCI-Express 4.0 1x: 1
PCI-Express 4.0 4x : 1
Audio-In: 1
Audio-Out: 1
DisplayPort: 1
HDMI: 1
Microphone: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 3
USB-C: 1
SATA: Yes
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Shipping box quantity: 10
Shipping Box Depth: 54
Shipping Box Height: 32
Shipping Box Weight: 11.85
Shipping Box Width: 31
Unit Brutto Volume: 0.005357
Unit Net Weight: 0.8
Unit Gross Weight: 1.19
CnCode: 84733020
Unit Box Width: 0.265
Unit Box Length: 0.3
Unit Box Height: 0.06
Full Description Line: Intel B860 Express|LGA1851|Micro-ATX|DDR5|9066 MHz|Memory slots 2|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
