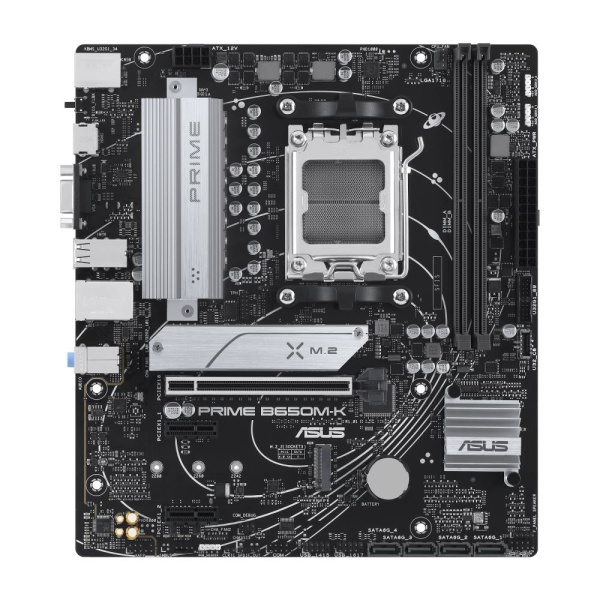

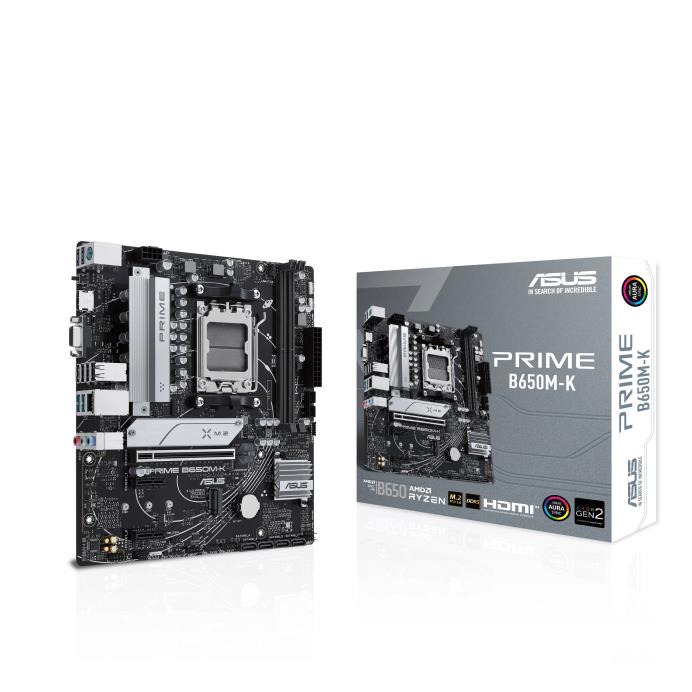

Mainboard ASUS AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 2 2xPCI-Express 4.0 1x 1xPCI-Express 4.0 16x 2xM.2 1x15pin D-sub 1xHDMI 4xUSB 2.0 4xUSB 3.2 1xPS/2 1xRJ45 3xAudio port PRIMEB650M-K

Description: AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, HDMI™, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync – AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
– Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
– ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
– Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
– Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Vendor Homepage: www.asus.com/motherboards-components/motherboards/prime/prime-b650m-k/
Model: PRIME B650M-K
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400
Memory slots: 2
M.2: 2
PCI-Express 4.0 16x: 1
PCI-Express 4.0 1x: 2
15pin D-sub: 1
Audio port: 3
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 4
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; PCIe 0, 1, 10
TPM: Header
Included Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw Package for M.2 SSD
Documentation
1 x User guide
Shipping box quantity: 1
Shipping Box Depth: 27
Shipping Box Height: 5
Shipping Box Weight: 1.073
Shipping Box Width: 26
Unit Brutto Volume: 0.00351
Unit Net Weight: 1
Unit Gross Weight: 1.07
CnCode: 84733020
Unit Box Width: 0.26
Unit Box Length: 0.27
Unit Box Height: 0.05
Full Description Line: AMD B650|SAM5|Micro-ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10|TPM Header
Category Code: MBA
