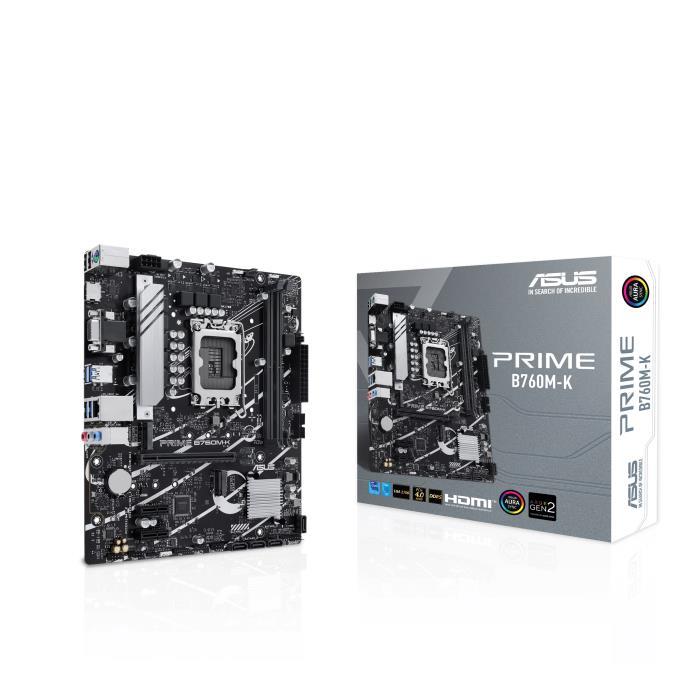

Description: ASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
– Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
– Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
– Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
– Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Vendor Homepage: www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
Model: PRIME B760M-K
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000
Memory slots: 2
M.2: 2
PCI-Express 4.0 16x: 1
PCI-Express 4.0 1x: 2
15pin D-sub: 1
Audio port: 3
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 4
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 56.5
Shipping Box Height: 29.5
Shipping Box Weight: 10.2
Shipping Box Width: 29
Unit Calculated Volume: 0.004834
Product Net Weight: 0.7
Unit Calculated Weight: 1.02
CnCode: 84733020
Unit Box Width: 0.265
Unit Box Length: 0.275
Unit Box Height: 0.055
Full Description Line: Intel B760 Express|LGA1700|Micro-ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
