Description: ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Vendor Homepage: www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P-WIFI/

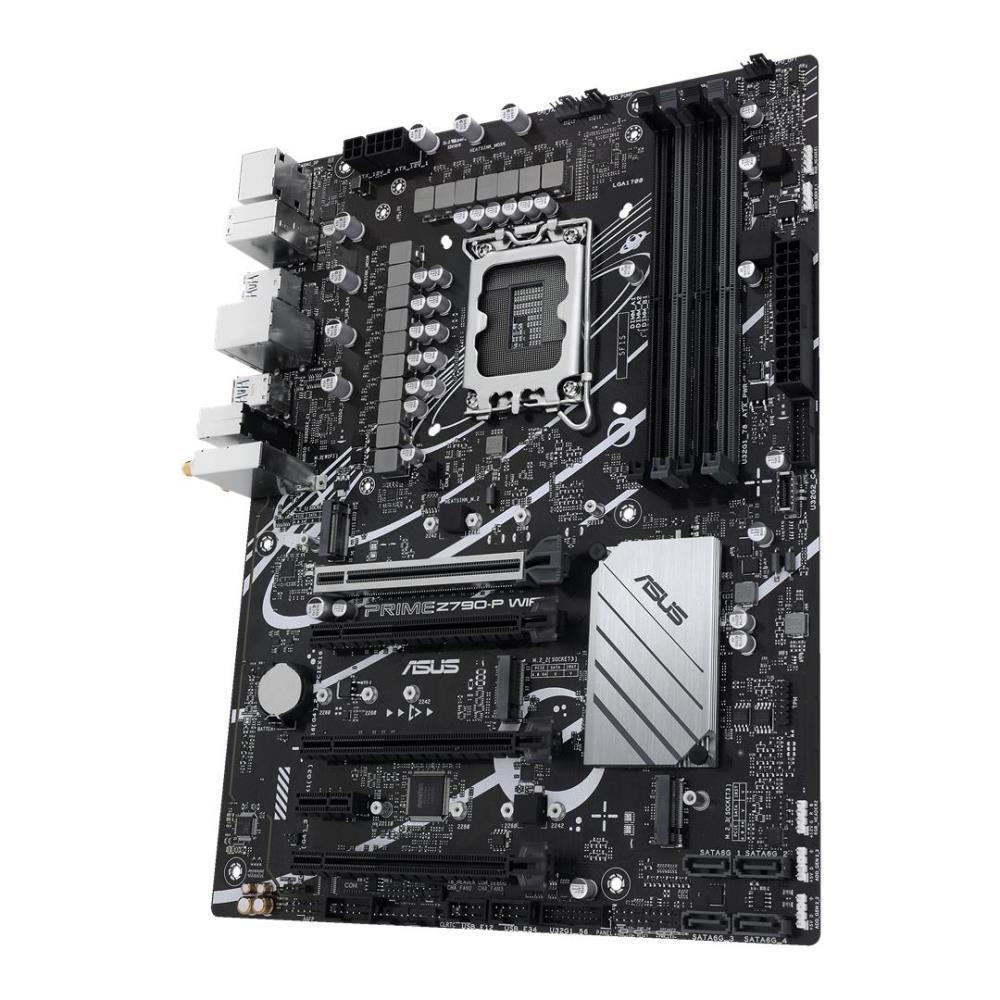

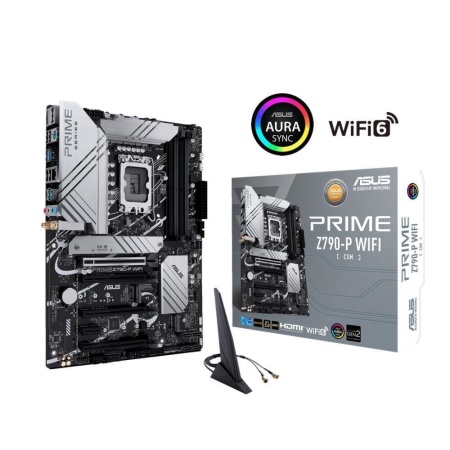

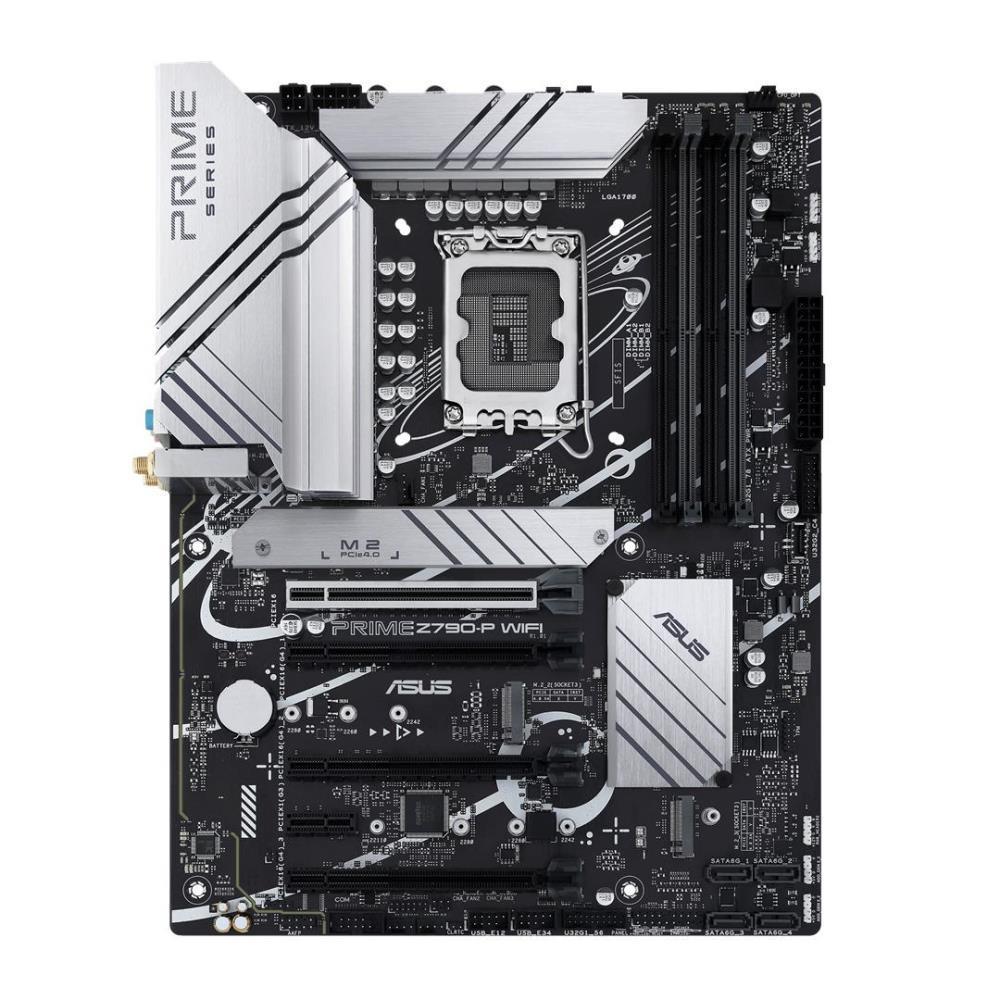

Model: PRIME Z790-P WIFI
Chipset: Intel Z790
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Memory slots: 4
M.2: 3
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 3
PCI-Express 5.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
Bluetooth: Yes
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

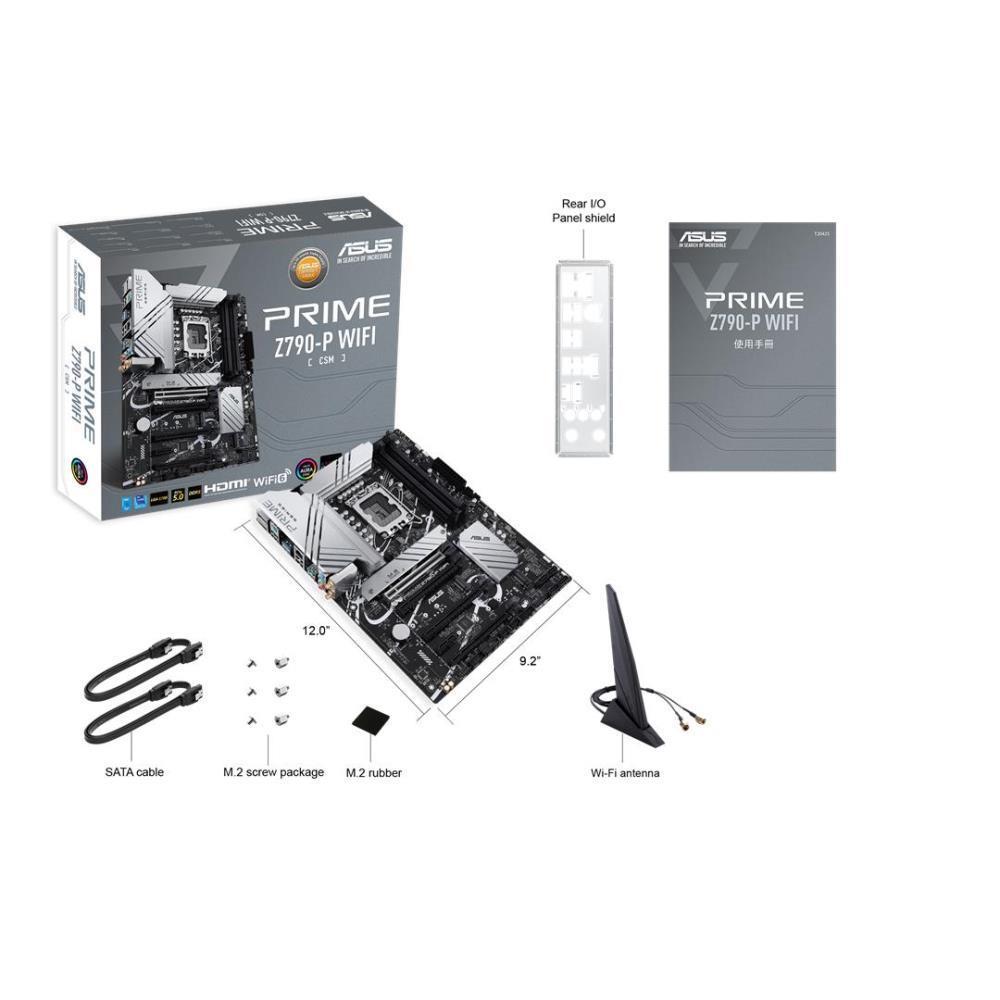

Included Accessories: Cables
2 x SATA 6Gb/s cables
Miscellaneous

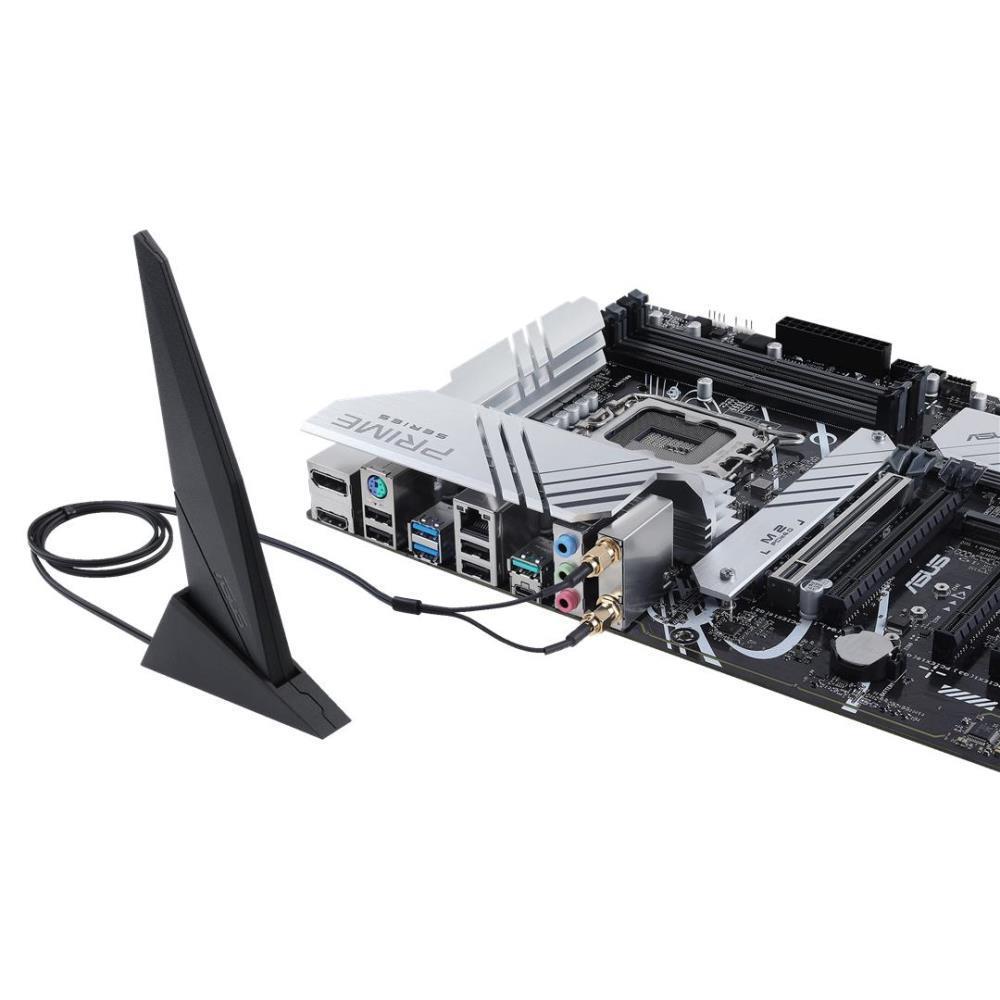

1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
Units per Shipping Box: 5
Shipping Box Depth: 36.5
Shipping Box Height: 30
Shipping Box Weight: 9.25
Shipping Box Width: 36.5
Unit Calculated Volume: 0.007994
Product Net Weight: 1
Unit Calculated Weight: 1.85
CnCode: 84733020
Unit Box Width: 0.275
Unit Box Length: 0.345
Unit Box Height: 0.07
Full Description Line: Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Category Code: MBI
