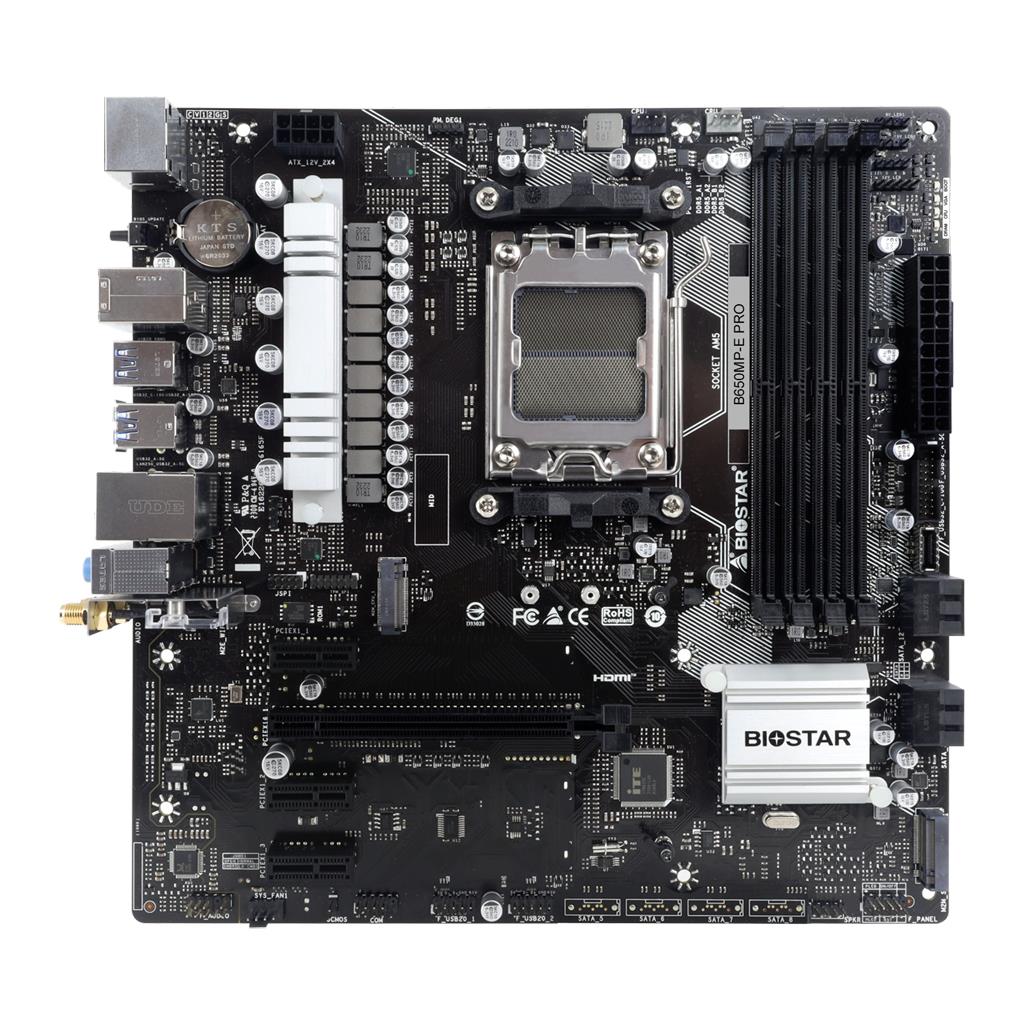

Mainboard BIOSTAR AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 4 3xPCI-Express 4.0 1x 1xPCI-Express 4.0 16x 1xM.2 1xHDMI 1xDisplayPort 2xUSB 2.0 5xUSB 3.2 1xUSB-C 1xPS/2 1xRJ45 3xAudio port 2xWiFi antenna port B650MP-EPRO

Description: B650MP-E PRO – Supports AMD Ryzen 7000 series processors
– AMD B650 single chip architecture
– Supports 4-DIMM DDR5 up to 192 GB Memory
– Supports PCIe 4.0
– Supports PCIe 4.0 M.2 (64Gb/s)
– Supports HDMI 4K resolution
– Supports SMART BIOS UPDATE
Vendor Homepage: www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1116
Model: B650MP-E PRO
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5200/5400/5600/6000
Memory slots: 4
M.2: 1
PCI-Express 4.0 16x: 1
PCI-Express 4.0 1x: 3
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 5
USB-C: 1
WiFi antenna port: 2
SATA: Yes
SATA 3.0: Yes
Serial: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10
TPM: Header
Shipping box quantity: 1
Unit Brutto Volume: 0.003564
Unit Net Weight: 0.49
Unit Gross Weight: 0.693
CnCode: 84733020
Full Description Line: AMD B650|SAM5|DDR5|6000/5600/5400/5200/4800 MHz|Memory slots 4|3xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|2xWiFi antenna port|SATA|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
