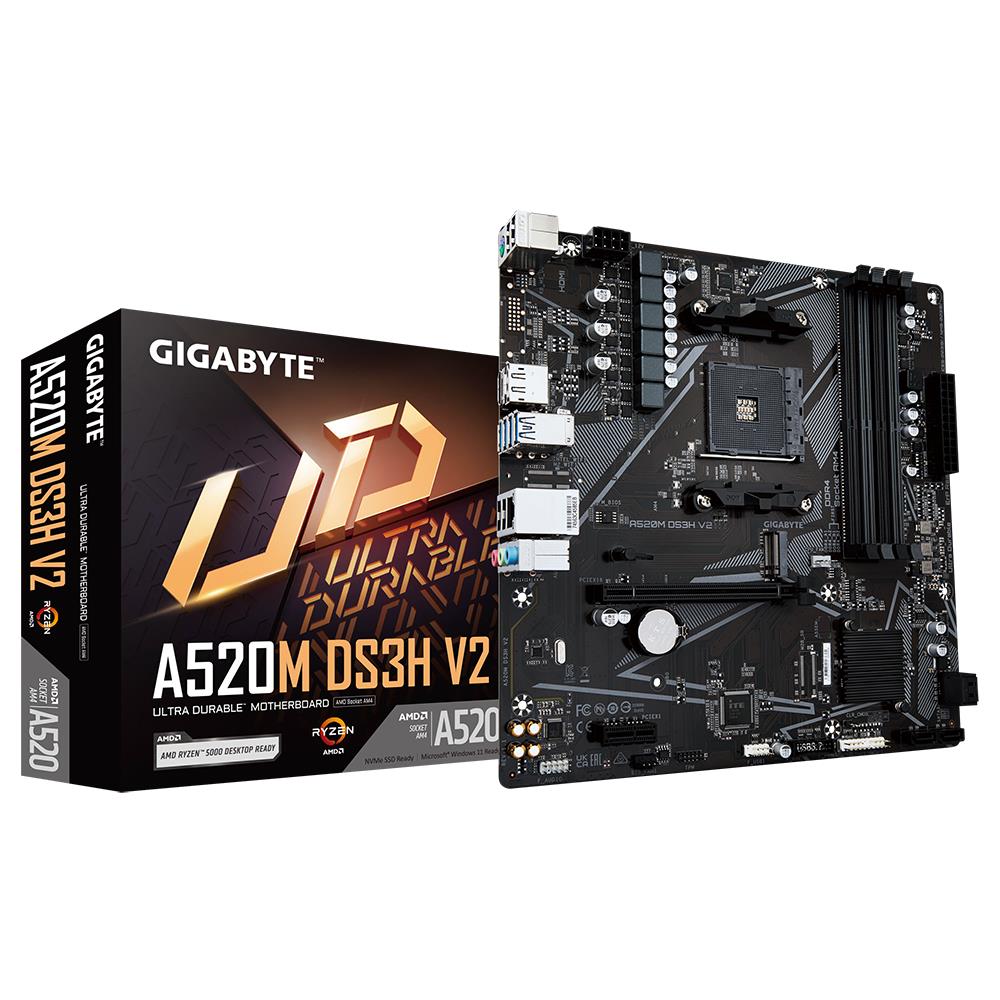

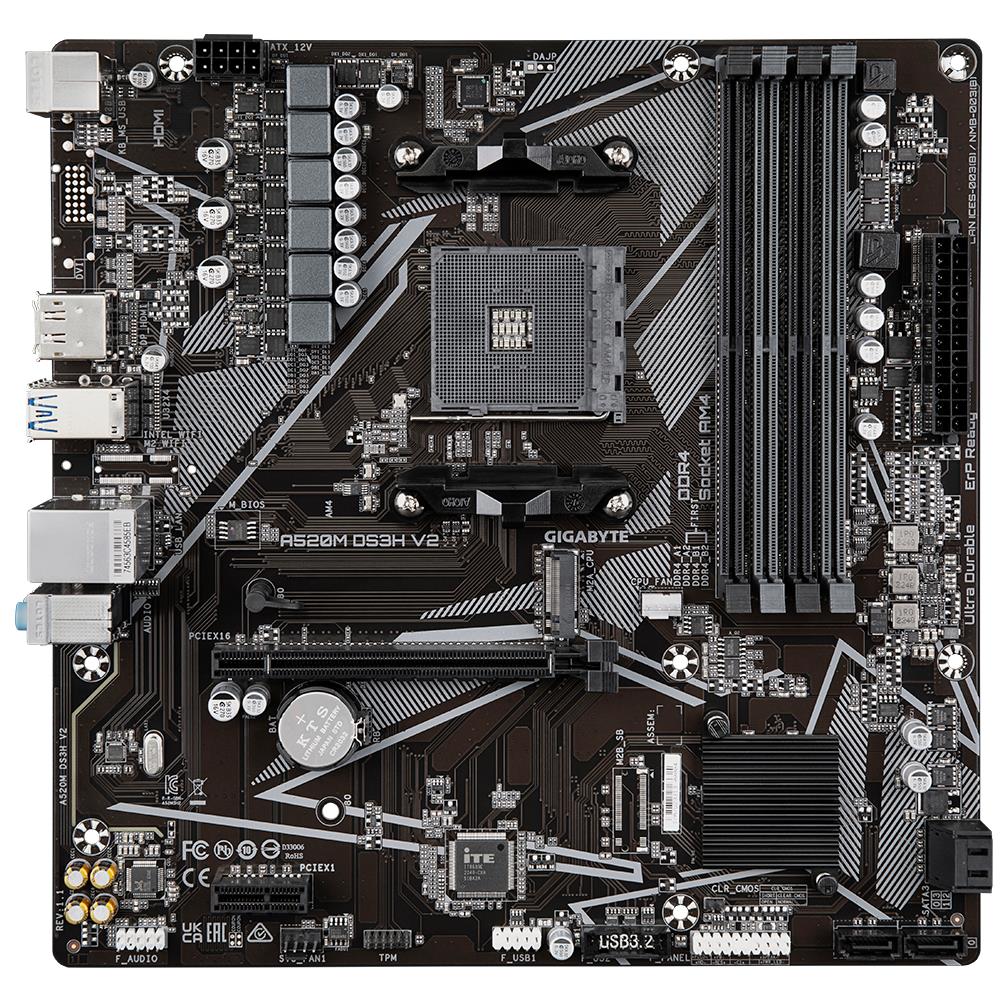

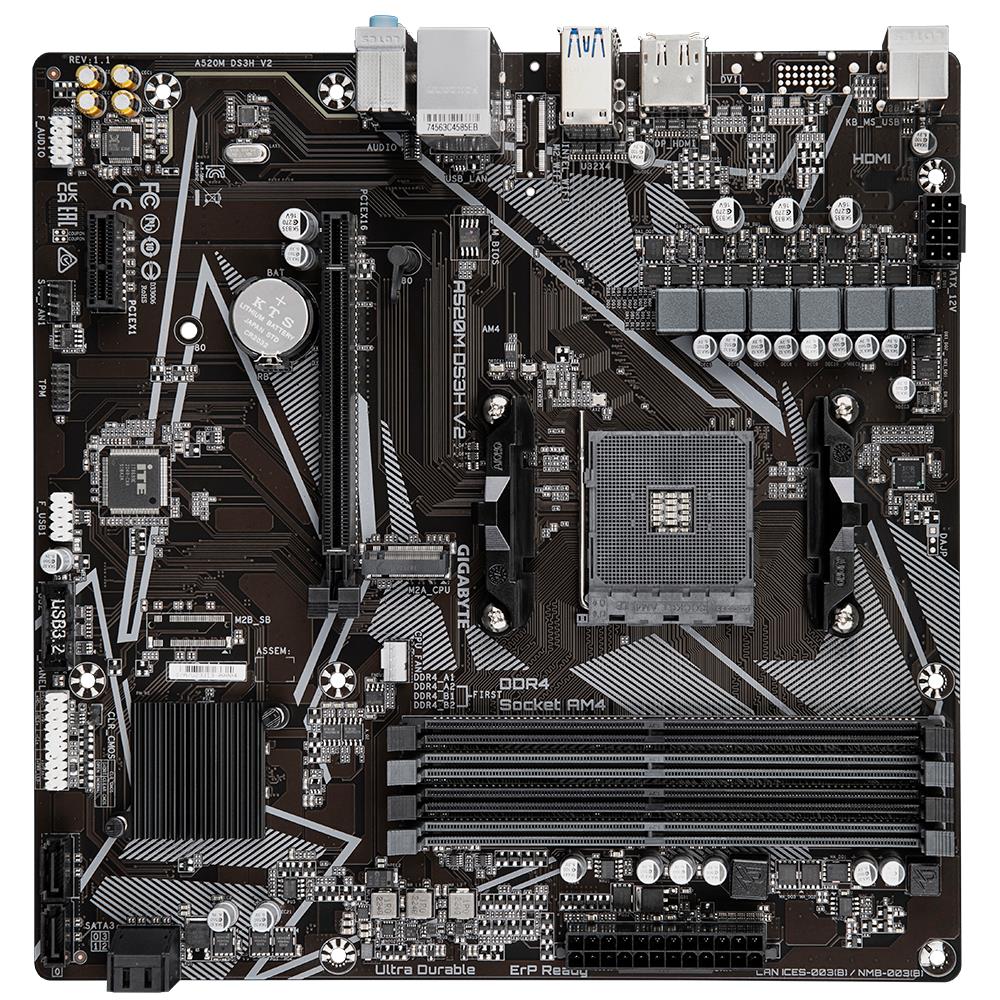

Description: AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP
+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ Ultra Durable PCIe 3.0 x16 Slot
+ NVMe PCIe 3.0 M.2 Connectors
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ GbE LAN with Bandwidth Management

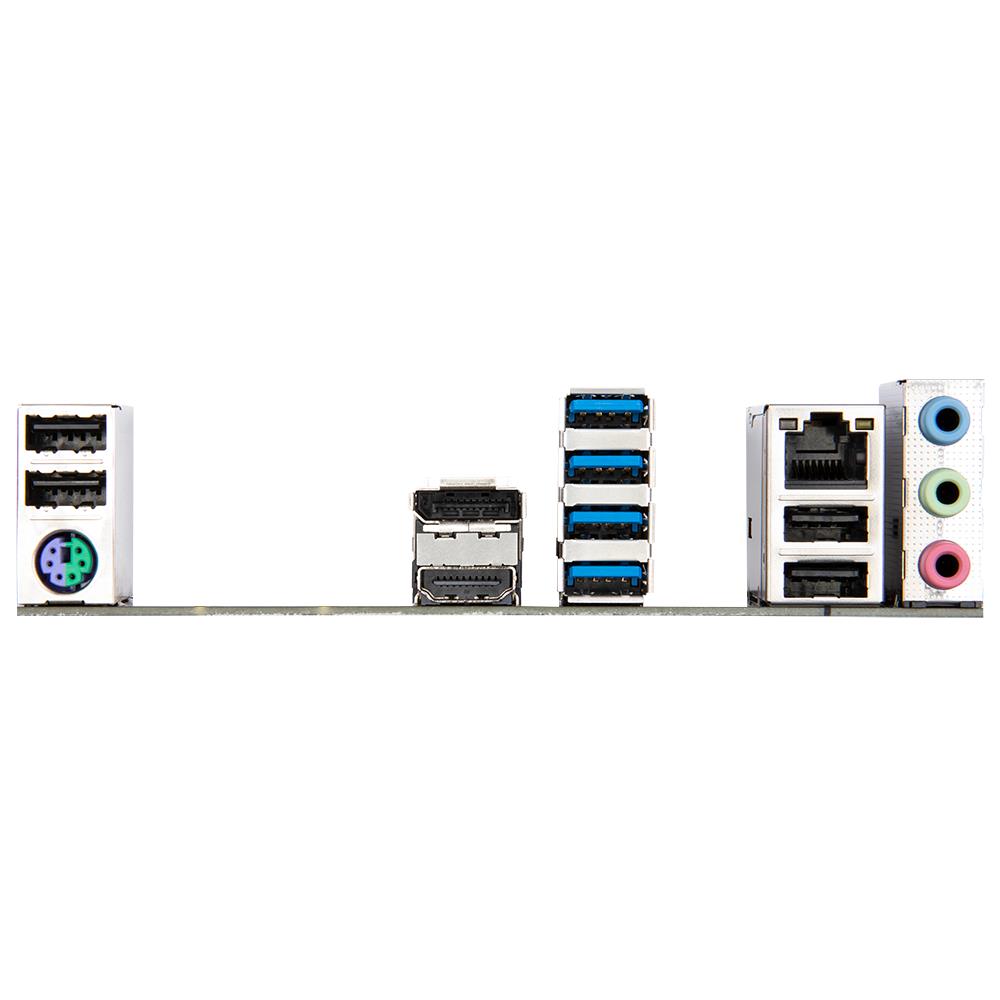

+ Rear DisplayPort and HDMI for Multi-display Support
+ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
+ Anti-Sulfur Resistors Design
Vendor Homepage: www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-11
Model: A520M DS3H V2 (rev. 1.1)
Chipset: AMD A520
Socket: SAM4
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
Memory slots: 4
M.2: 1
PCI-Express 3.0 16x: 1
PCI-Express 3.0 1x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 4
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: Yes
RAID: SATA 0, 1, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 57
Shipping Box Height: 29
Shipping Box Weight: 8.95
Shipping Box Width: 29
Unit Calculated Volume: 0.004794
Product Net Weight: 0.7
Unit Calculated Weight: 0.895
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.27
Unit Box Height: 0.05
Full Description Line: AMD A520|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
