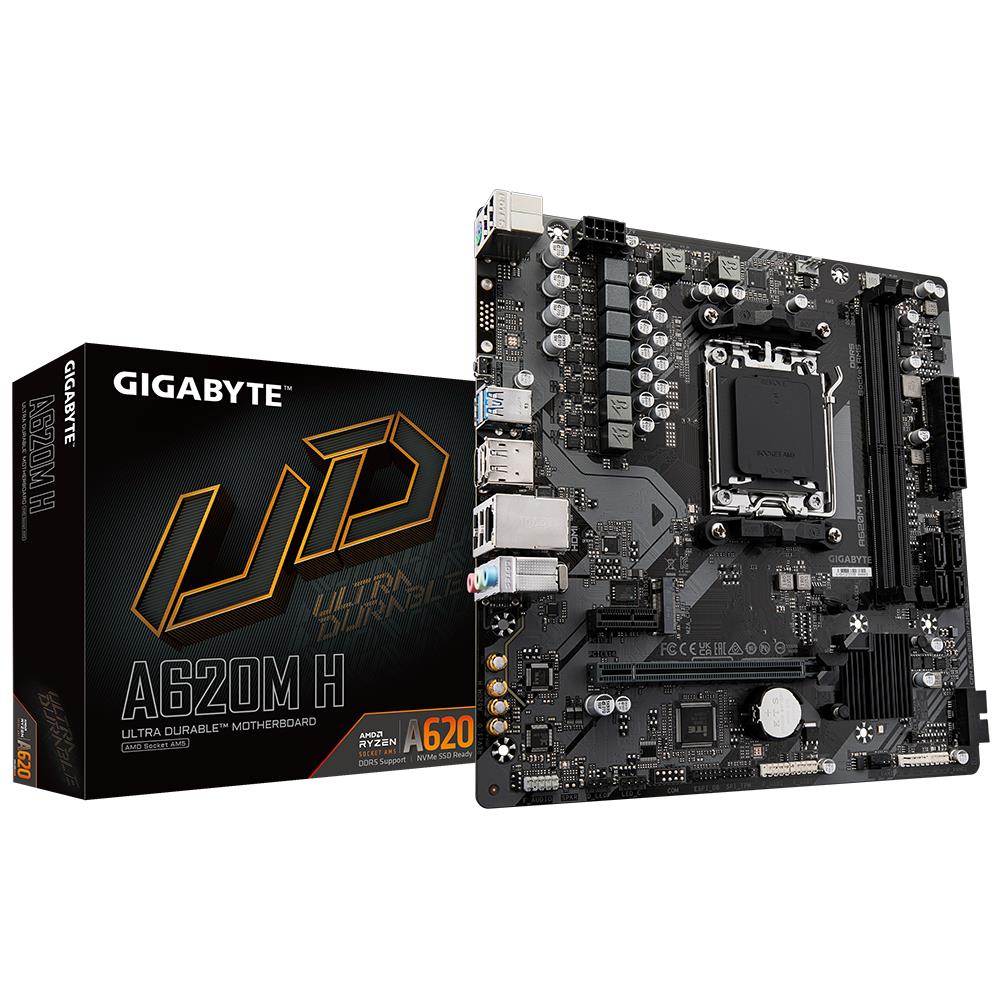

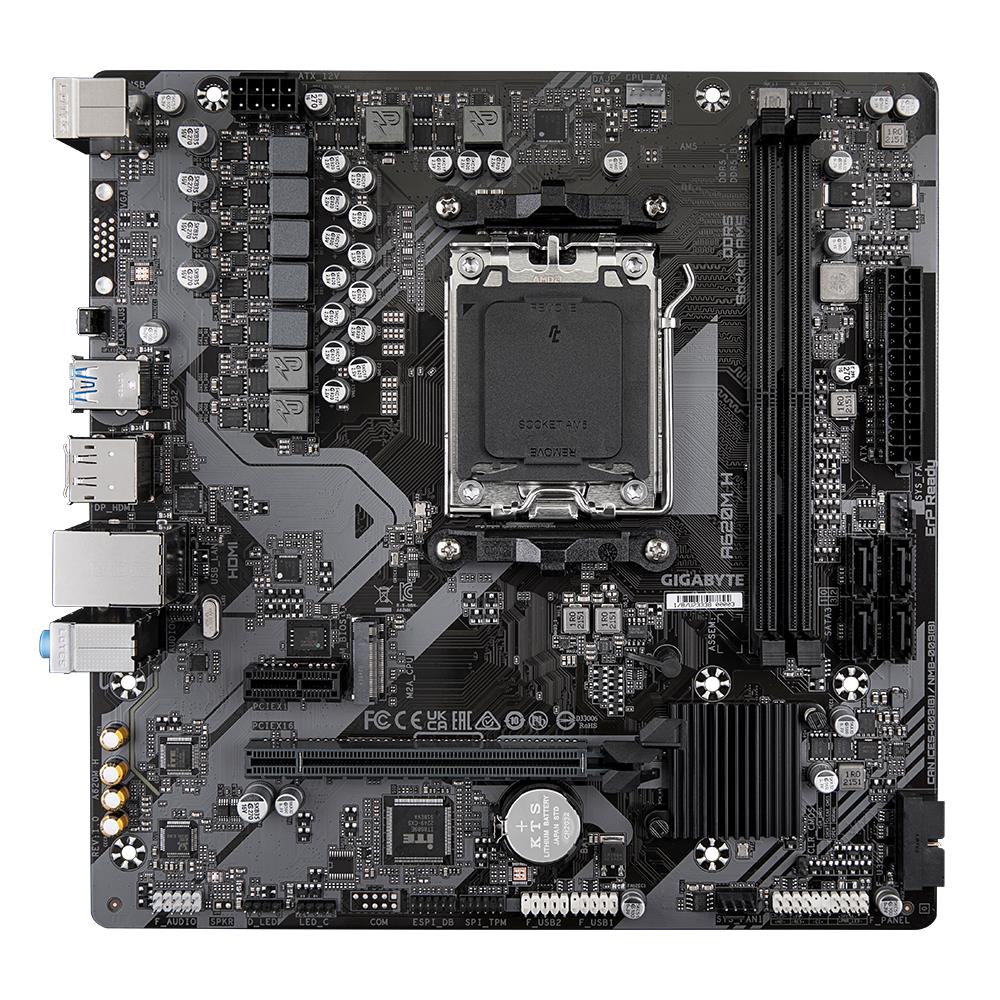

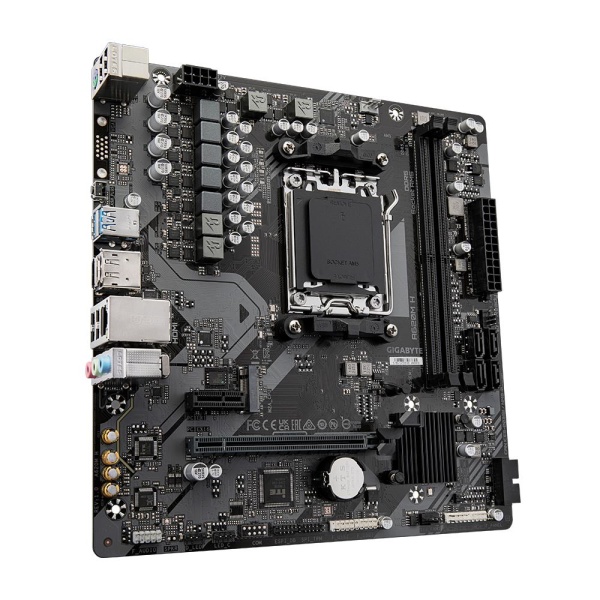

Description: A620M H (rev. 1.2)
– AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
– Unparalleled Performance:5+2+2 Phases Digital VRM Solution
– Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
– SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
– EZ-Latch:PCIe x16 Slot with Quick Release Design
– Fast Networks:GbE LAN
– Extended Connectivity:DP, HDMI
– Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
– Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/A620M-H-rev-12#kf
Model: A620M H 1.2
Chipset: AMD A620
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200
Memory slots: 2
M.2: 1
PCI-Express 3.0 16x: 1
PCI-Express 4.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 2
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: Yes
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 57.5
Shipping Box Height: 28.5
Shipping Box Weight: 9.21
Shipping Box Width: 29
Unit Calculated Volume: 0.004752
Product Net Weight: 0.5
Unit Calculated Weight: 0.921
CnCode: 84733020
Unit Box Width: 0.265
Unit Box Length: 0.27
Unit Box Height: 0.055
Full Description Line: AMD A620|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Category Code: MBA
