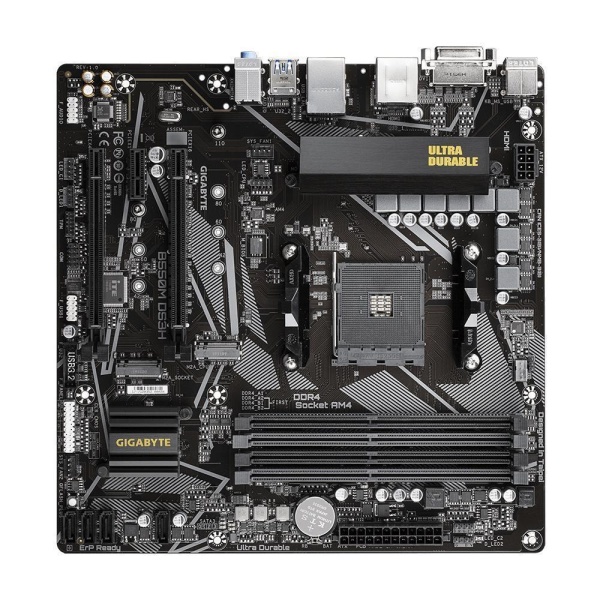

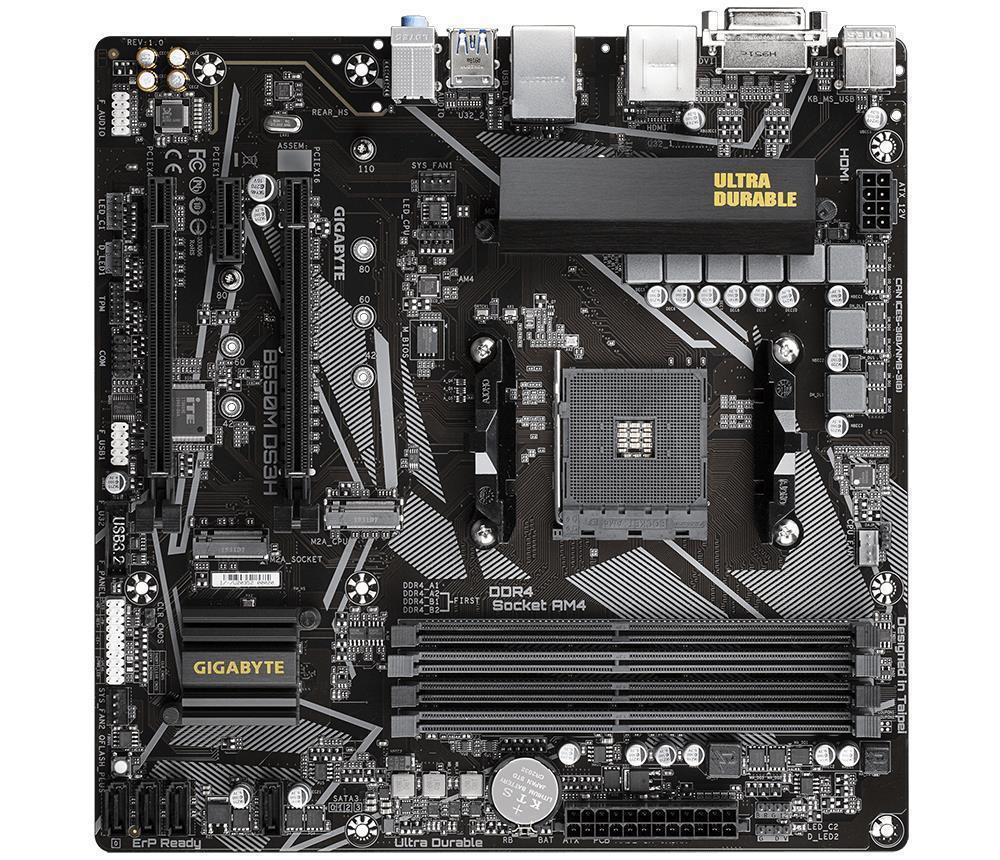

Description: GIGABYTE B550M DS3H 1.7
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
+ Ultra Durable PCIe 4.0 Ready x16 Slot
+ Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ Realtek GbE LAN with Bandwidth Management
+ Rear HDMI & DVI Support
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Anti-Sulfur Resistors Design
Vendor Homepage: www.gigabyte.com/Motherboard/B550M-DS3H-rev-17#kf
Model: B550M DS3H (rev. 1.7)
Chipset: AMD B550
Socket: SAM4
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4400/4600/4733
Memory slots: 4
M.2: 2
PCI-Express 3.0 1x: 1
PCI-Express 3.0 4x: 1
PCI-Express 4.0 16x: 1
Audio-In: 2
Audio-Out: 1
DVI-D: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 4
SATA: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: Gigabit
RAID: SATA 0, 1, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 57
Shipping Box Height: 29
Shipping Box Weight: 10
Shipping Box Width: 29
Unit Calculated Volume: 0.004794
Product Net Weight: 0.63
Unit Calculated Weight: 1
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.27
Unit Box Height: 0.05
Full Description Line: AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
