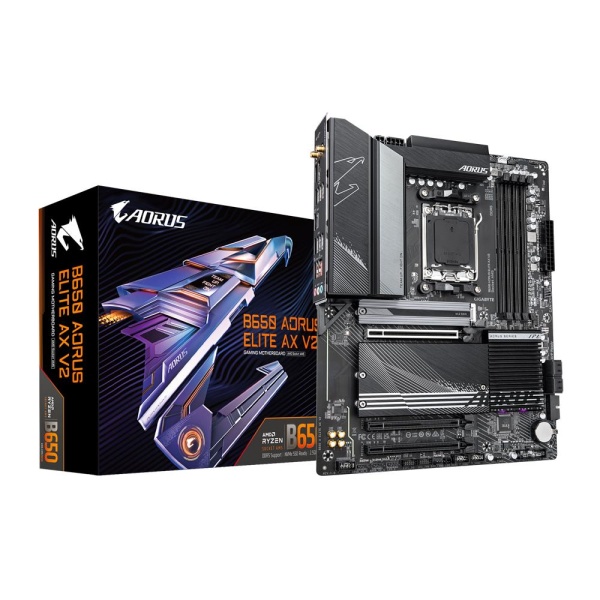

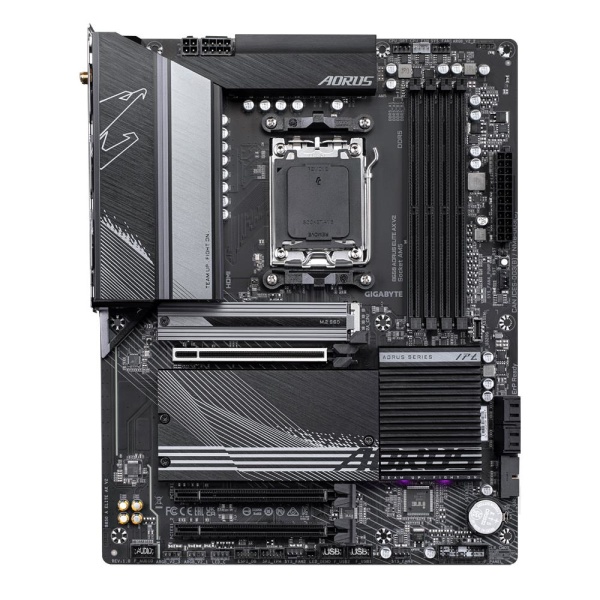

Description: GIGABYTE B650 AORUS ELITE AX V2
AMD Socket AM5
Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Unparalleled Performance
Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage
1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard
To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch
PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks
2.5GbE LAN & Wi-Fi 6E
Extended Connectivity
HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-V2#kf
Model: B650 AORUS ELITE AX V2 1.1
Chipset: AMD B650
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
Memory slots: 4
M.2: 3
PCI-Express 16x: 1
PCI-Express 2.0 16x: 2
Audio port: 3
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 7
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Units per Shipping Box: 6
Shipping Box Depth: 53.5
Shipping Box Height: 37.5
Shipping Box Weight: 13.9
Shipping Box Width: 31.3
Unit Calculated Volume: 0.01047
Product Net Weight: 2
Unit Calculated Weight: 2.32
CnCode: 84733020
Unit Box Width: 0.272
Unit Box Length: 0.08
Unit Box Height: 0.338
Full Description Line: AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 2.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Category Code: MBA
