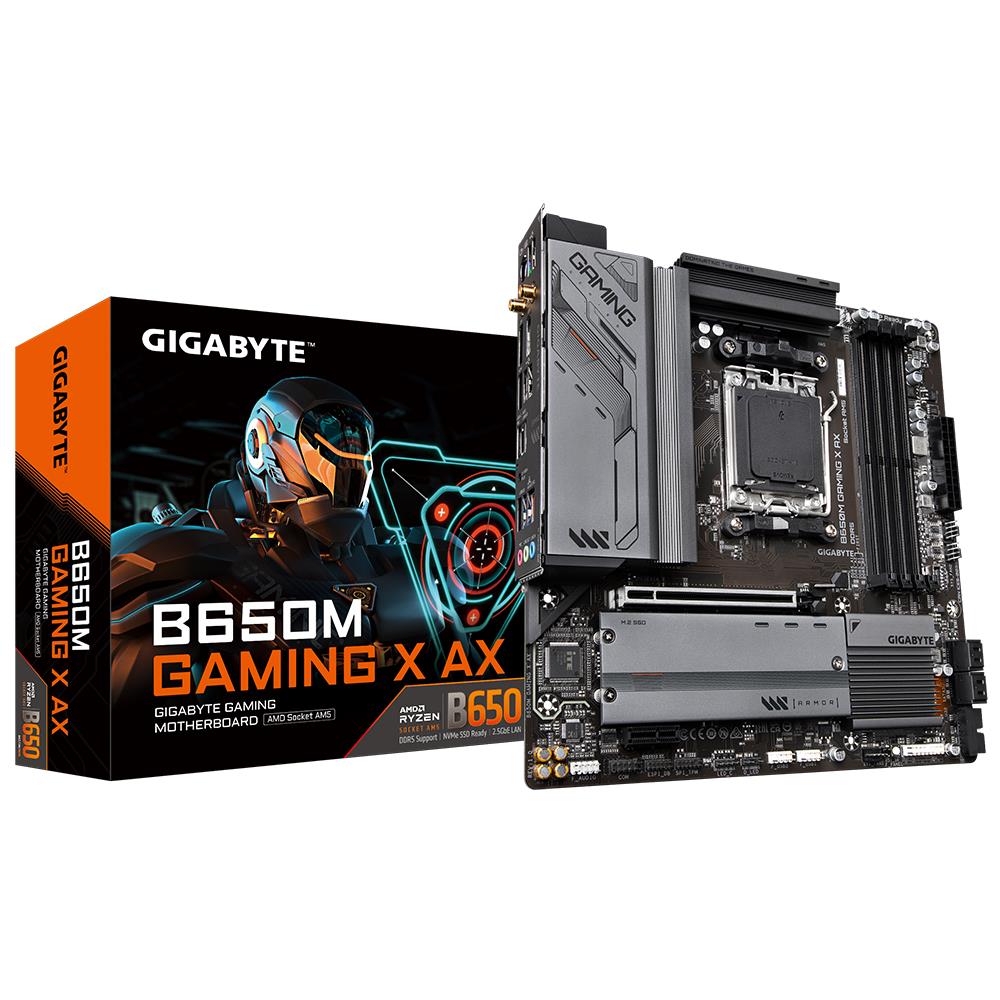

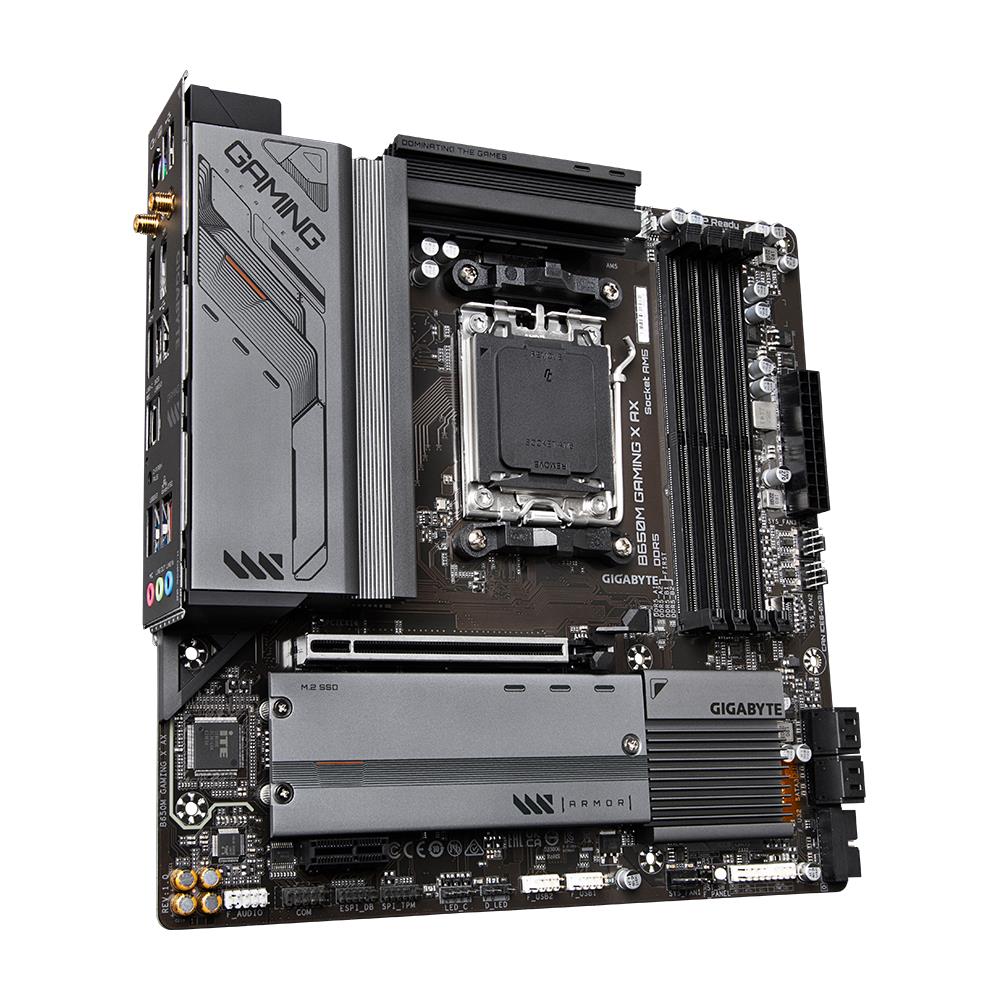

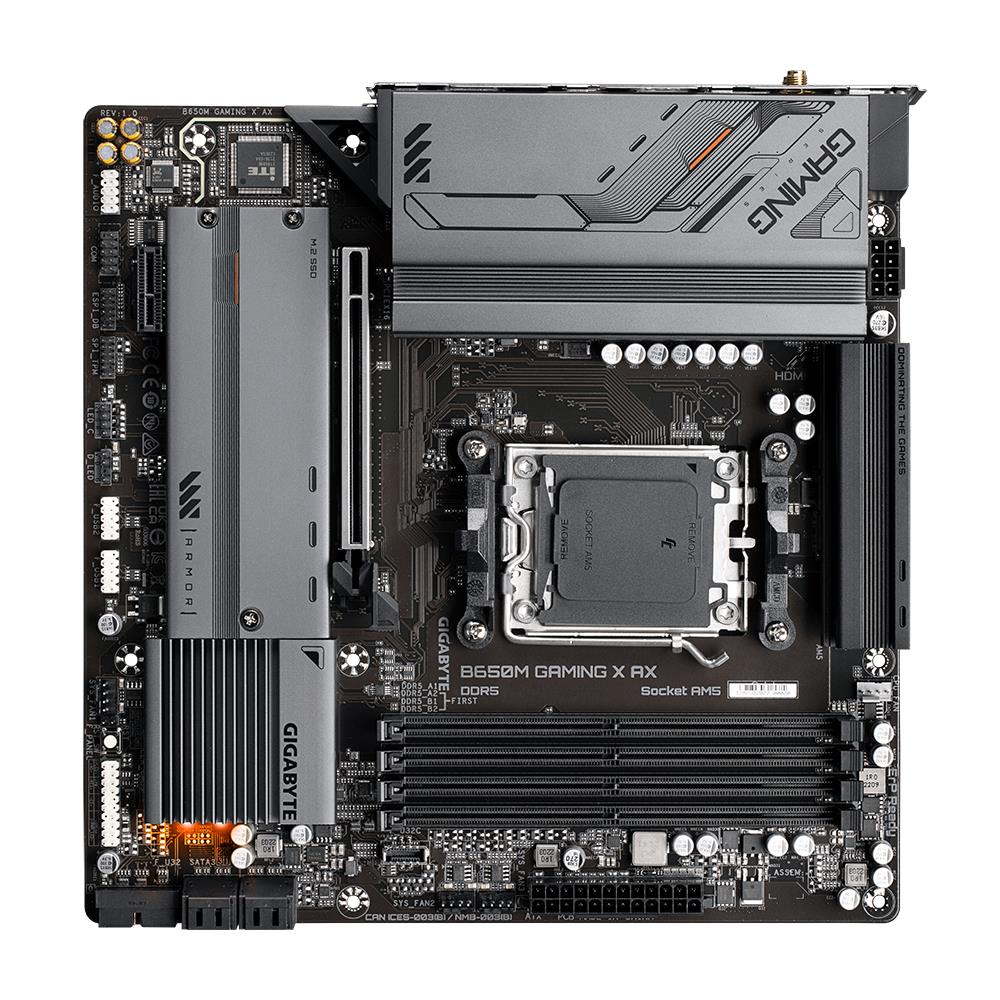

Description: GIGABYTE B650M GAMING X AX rev. 1.3
+ AMD Socket AM5:Supports AMD Ryzen 7000 Series Processors
+ Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution
+ Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
+ SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
+ Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
+ EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
+ Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax

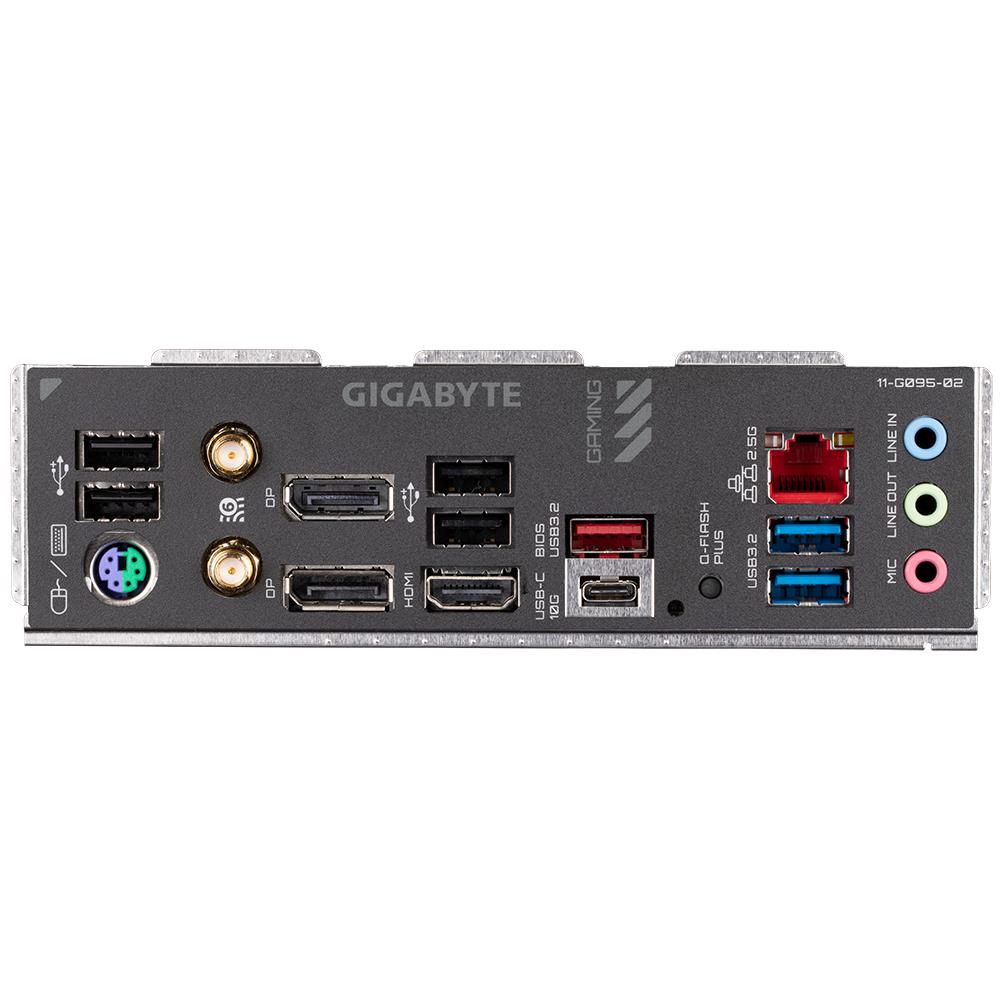

+ Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s
+ Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Outstanding Thermal Design
GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
+ 802.11ax Wi-Fi 6E
+ 2.5GbE LAN
+ Front & Rear USB-C 10Gb/s
+ Hi-Fi Audio
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.
PERSONALIZATION
+ RGB FUSION
+ UEFI BIOS
+ GIGABYTE Control Center
+ Multi-Key
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Vendor Homepage: www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-1x#kf
Model: B650M GAMING X AX 1.3
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400
Memory slots: 4
M.2: 2
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
Audio port: 3
DisplayPort: 2
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Units per Shipping Box: 1
Shipping Box Depth: 27.5
Shipping Box Height: 7
Shipping Box Weight: 1.69
Shipping Box Width: 27
Unit Calculated Volume: 0.005197
Product Net Weight: 1.5
Unit Calculated Weight: 1.69
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.275
Unit Box Height: 0.07
Full Description Line: AMD B650|SAM5|Micro-ATX|DDR5|6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
