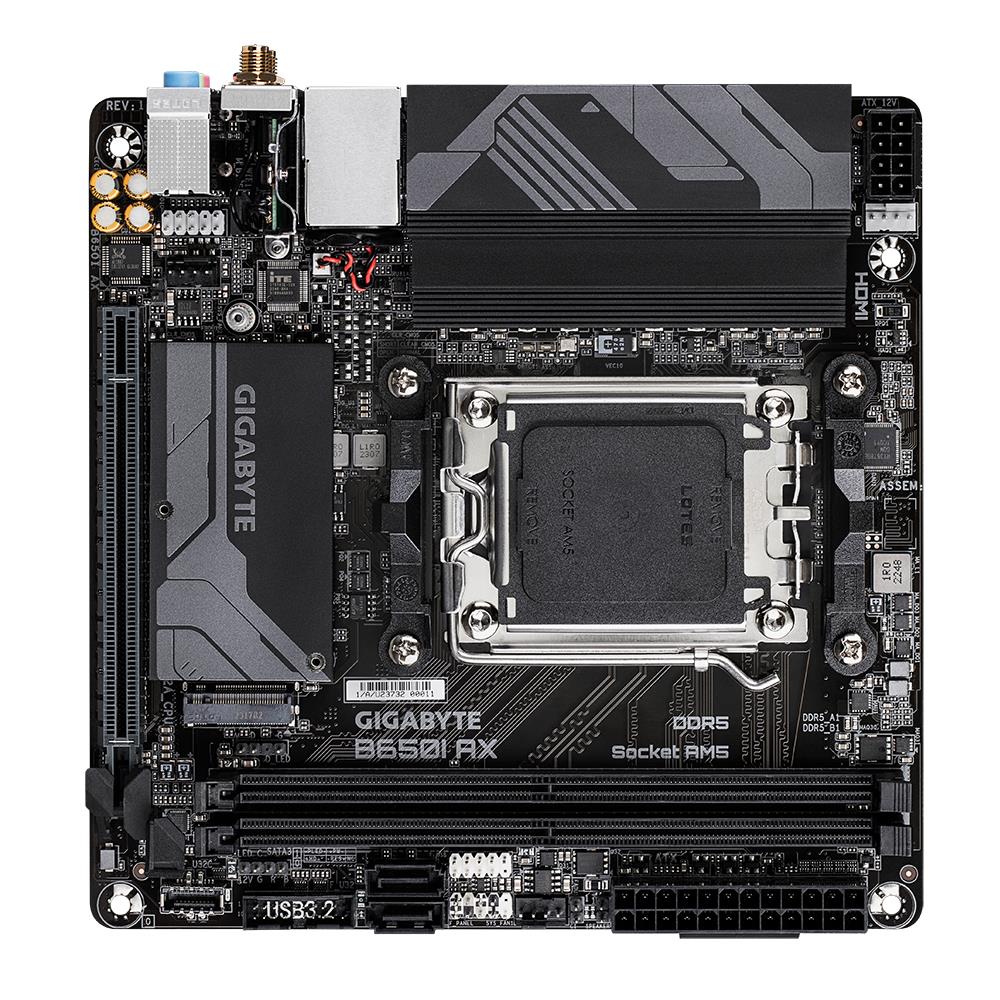

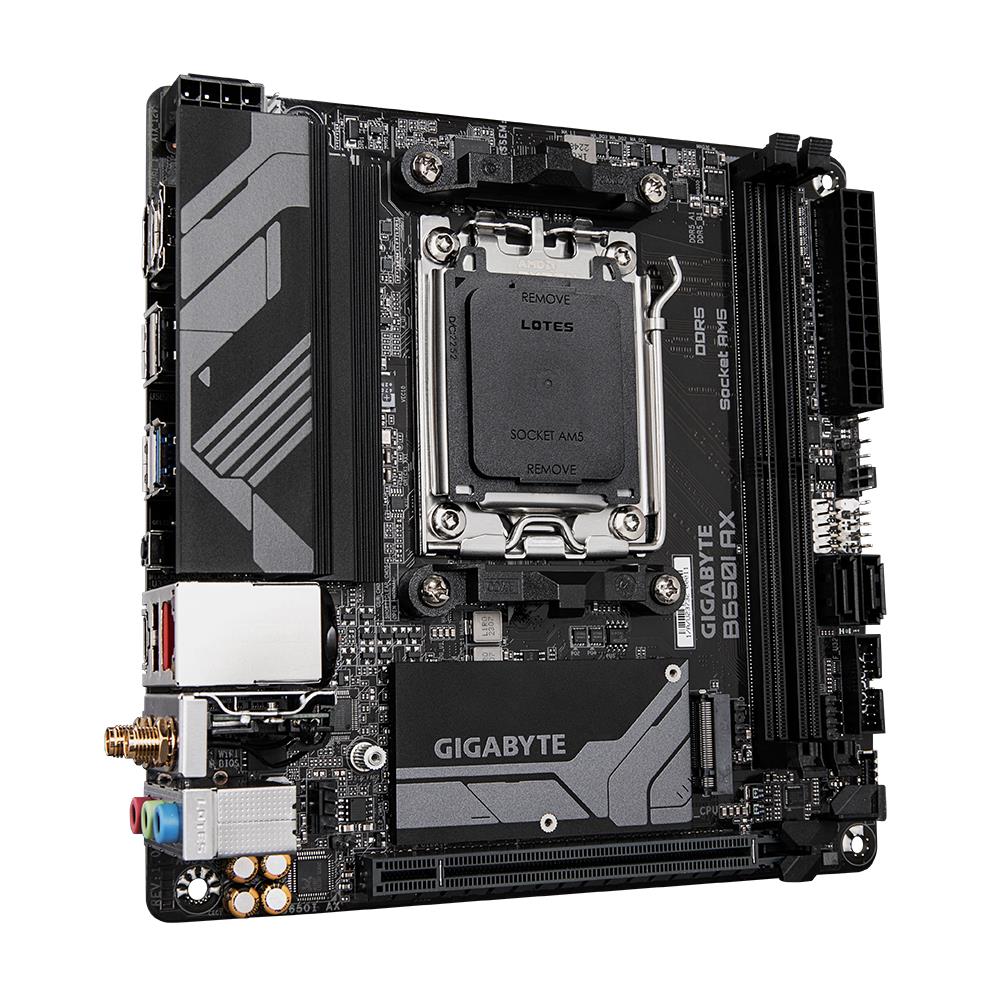

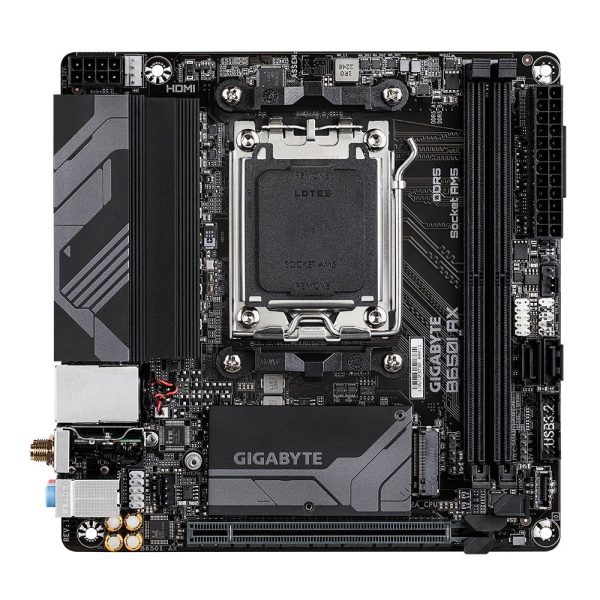

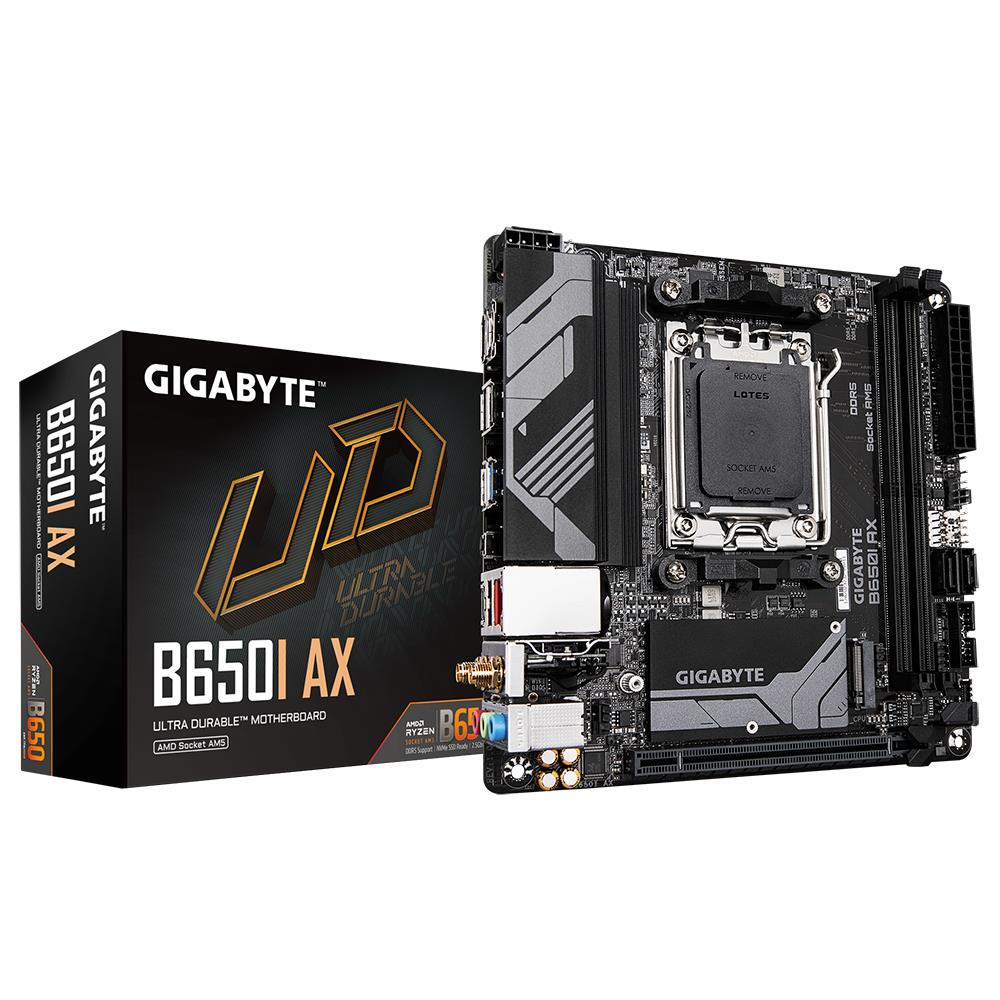

Description: GIGABYTE B650I AX
AMD Socket AM5
Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance
5+2+1 Phases Digital VRM Solution
Dual Channel DDR5
2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage
PCIe 4.0 x4 M.2 Connector
EZ-Latch
PCIe x16 Slot with Quick Release Design
Fast Networks
Wi-Fi 6E 802.11ax & 2.5GbE LAN

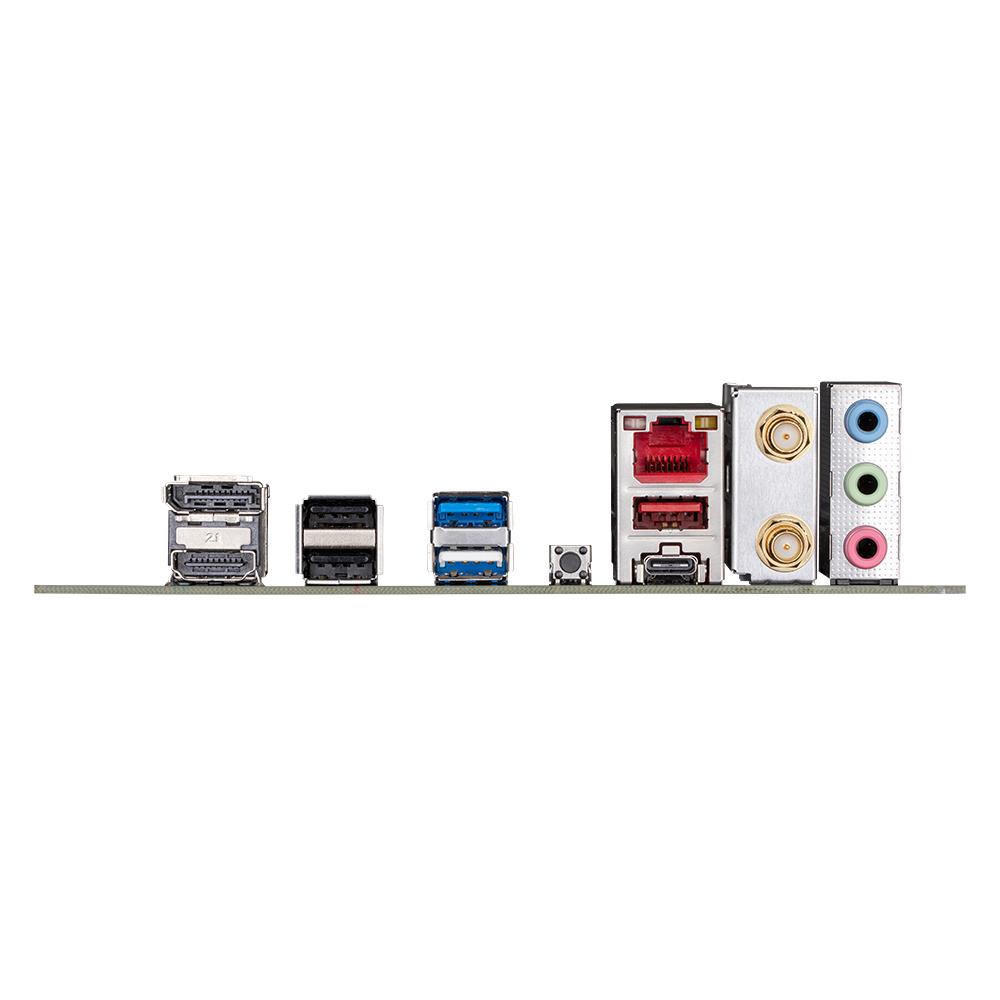

Extended Connectivity
DP, HDMI
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/B650I-AX-rev-10#kf
Model: B650I AX
Chipset: AMD B650
Socket: SAM5
Form Factor: Mini-ITX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400
Memory slots: 2
M.2: 1
PCI-Express 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 2.0: 3
USB 3.2: 2
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1; NVMe 0, 1
TPM: Header
Units per Shipping Box: 1
Shipping Box Depth: 23
Shipping Box Height: 7
Shipping Box Weight: 0.803
Shipping Box Width: 18
Unit Calculated Volume: 0.002898
Product Net Weight: 0.6
Unit Calculated Weight: 0.803
CnCode: 84733020
Unit Box Width: 0.18
Unit Box Length: 0.23
Unit Box Height: 0.07
Full Description Line: AMD B650|SAM5|Mini-ITX|DDR5|6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 16x|1xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1|TPM Header
Category Code: MBA
