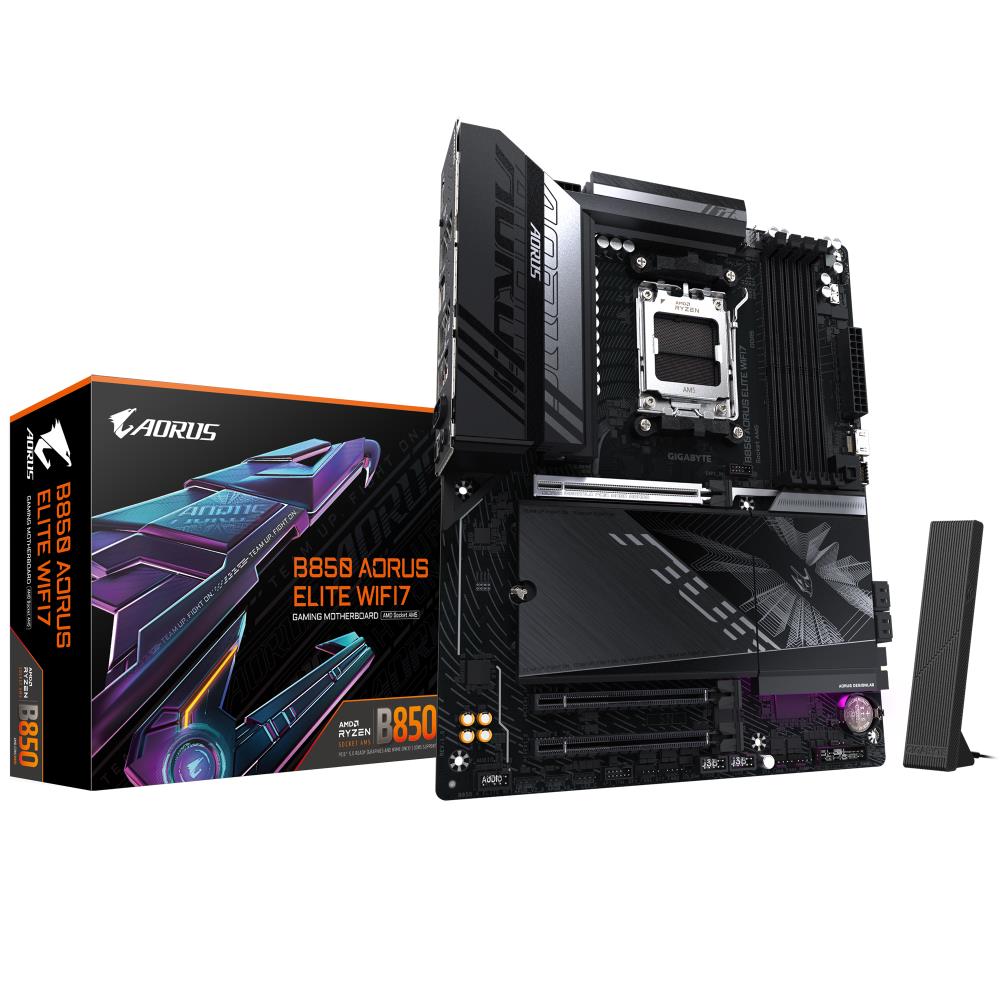

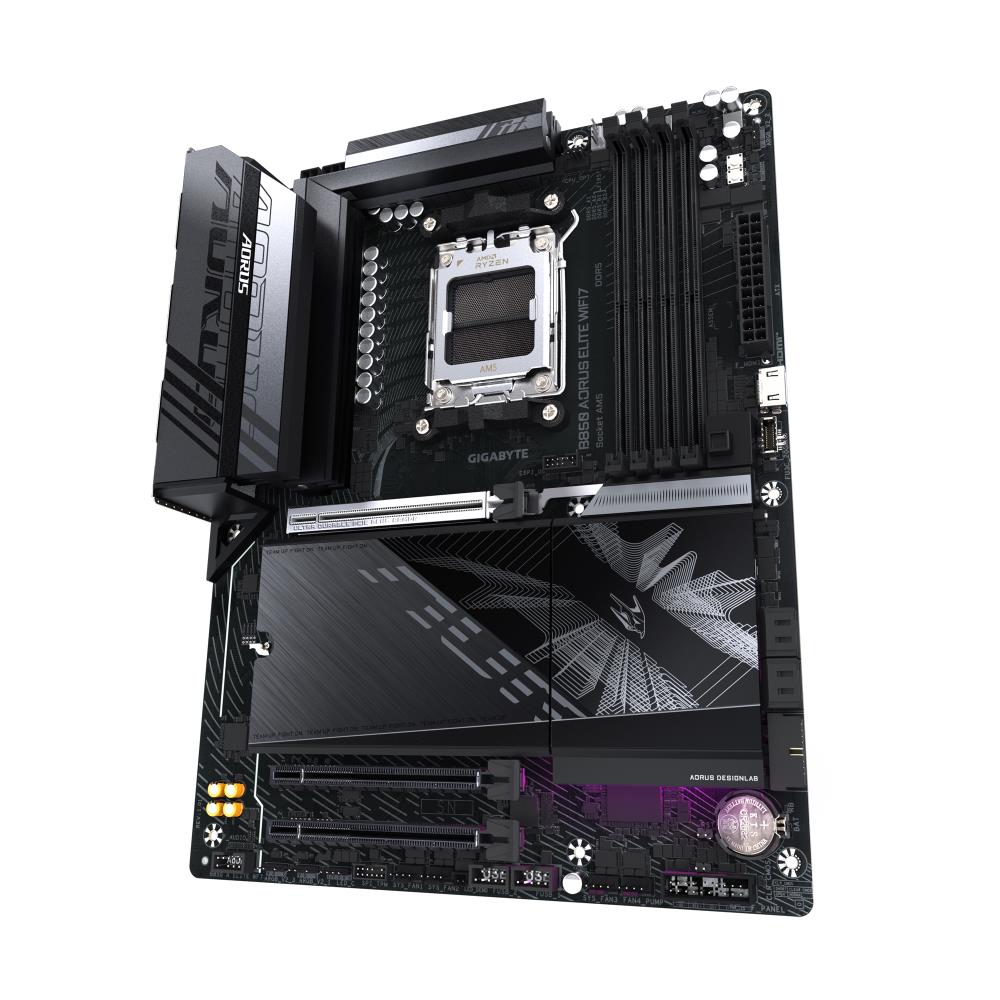

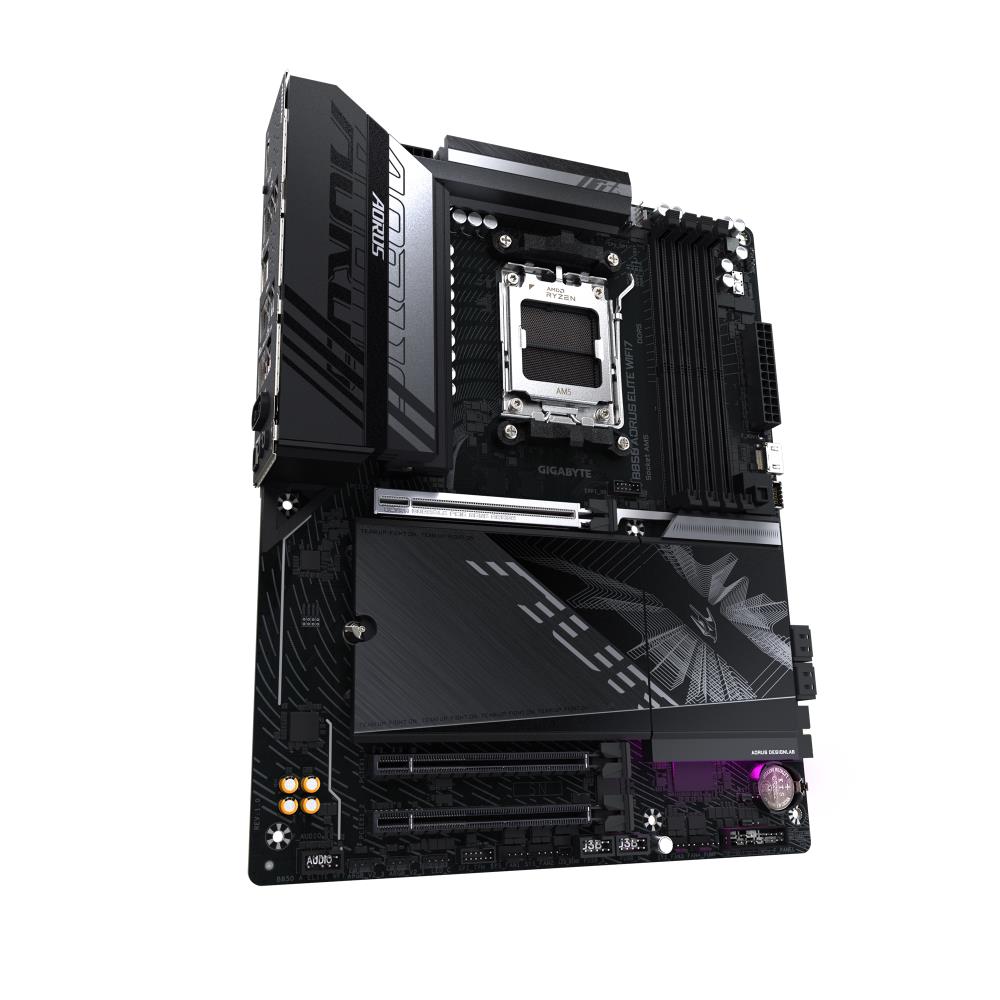

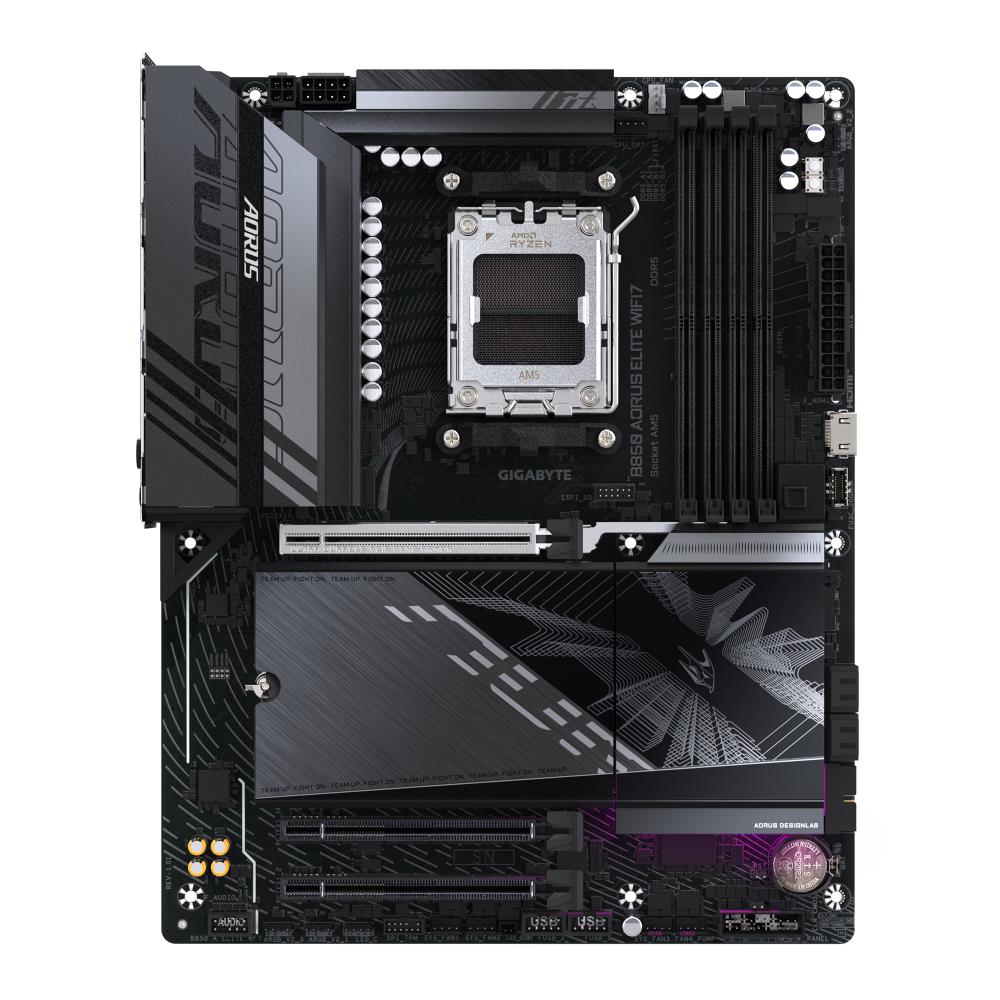

Description: B850 AORUS ELITE WIFI7
– X3D Turbo Mode : Unleash new era gaming performance
– DDR5 OC up to 8200MT/s
– AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
– Digital twin 14+2+2 phases VRM solution
– Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
– WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
– EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
– EZ-Latch Click : M.2 heatsinks with screwless design
– Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
– Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
– Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
– Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
– Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

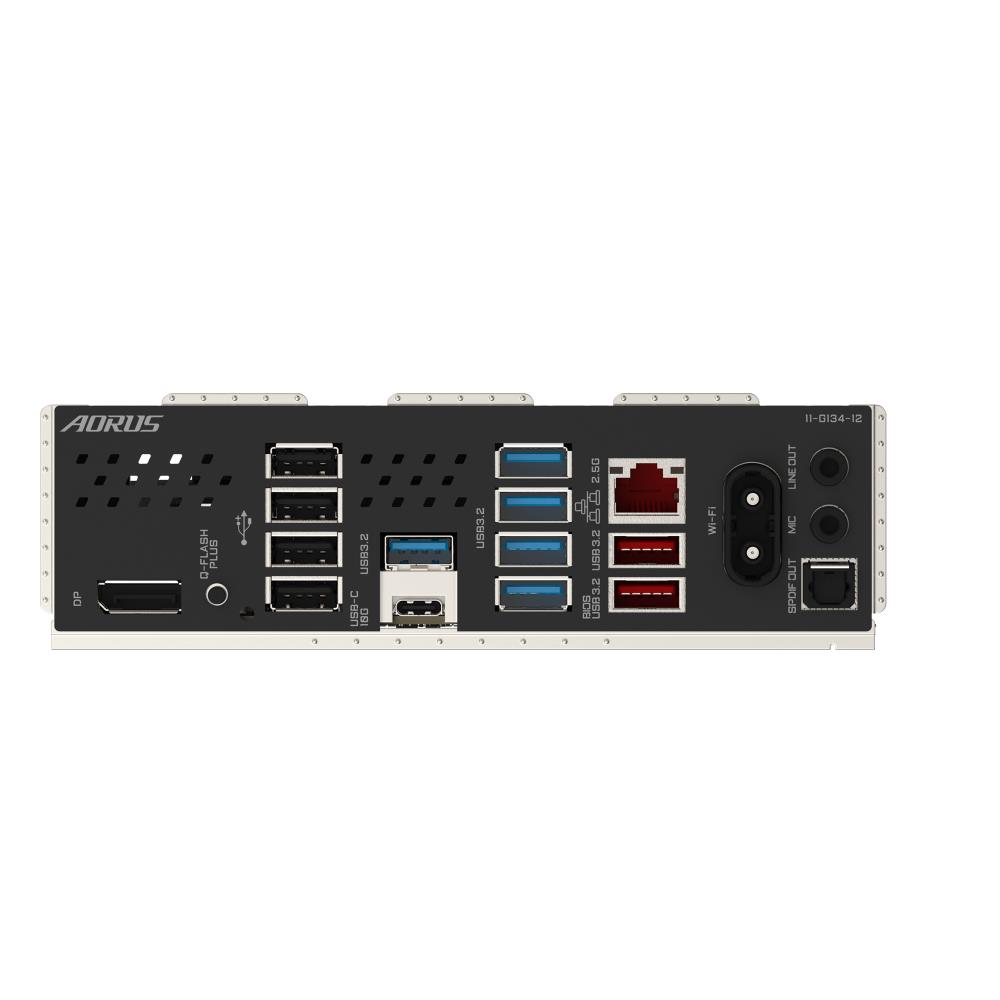

– Extended Connectivity : HDMI,Displayport
– PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Vendor Homepage: www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1x#kf
Model: B850 A ELITE WF7
Chipset: AMD B850
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Memory slots: 4
M.2: 3
PCI-Express 3.0 16x: 2
PCI-Express 5.0 16x: 1
Audio port: 2
DisplayPort: 1
Optical S/PDIF: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 7
USB-C: 1
Bluetooth: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC1220
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 6
Shipping Box Depth: 53.4
Shipping Box Height: 37.7
Shipping Box Weight: 15.2
Shipping Box Width: 31.2
Unit Calculated Volume: 0.01047
Product Net Weight: 1.5
Unit Calculated Weight: 2.53
CnCode: 84733020
Unit Box Width: 0.272
Unit Box Length: 0.338
Unit Box Height: 0.084
Full Description Line: AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
Category Code: MBA
