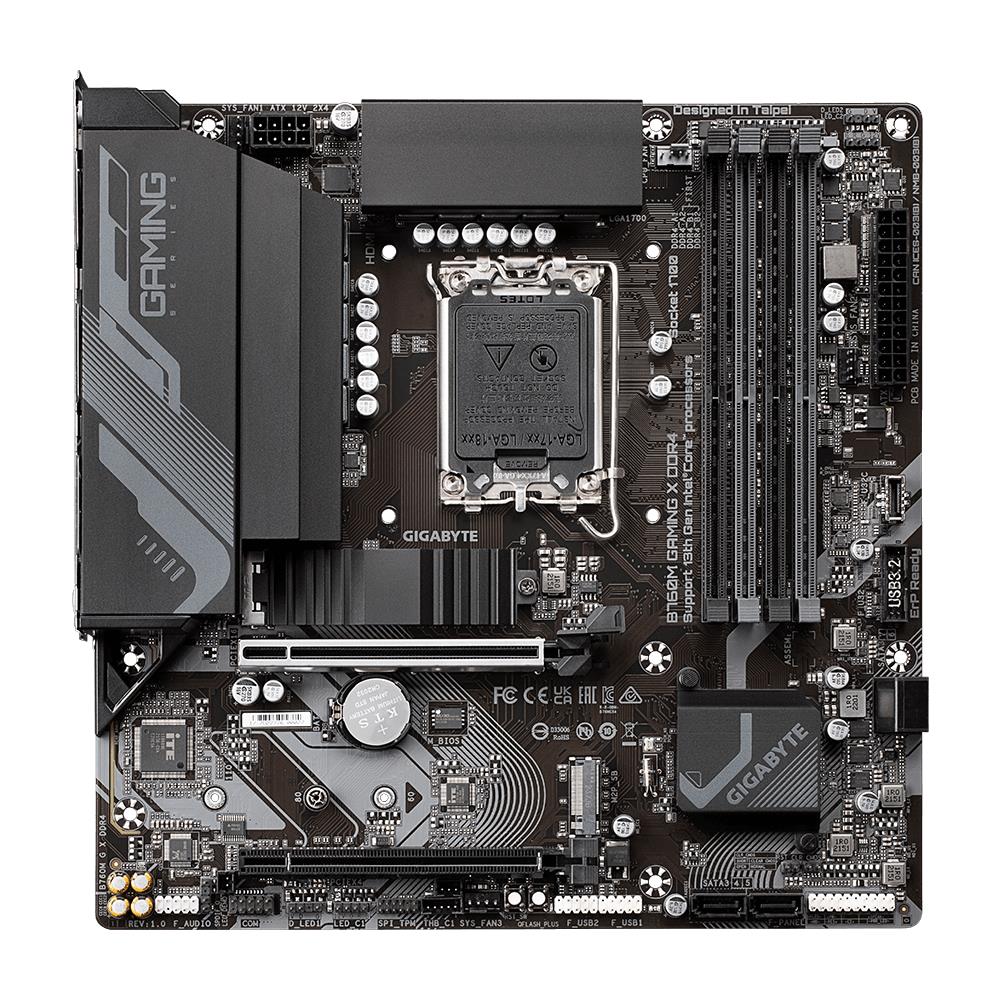

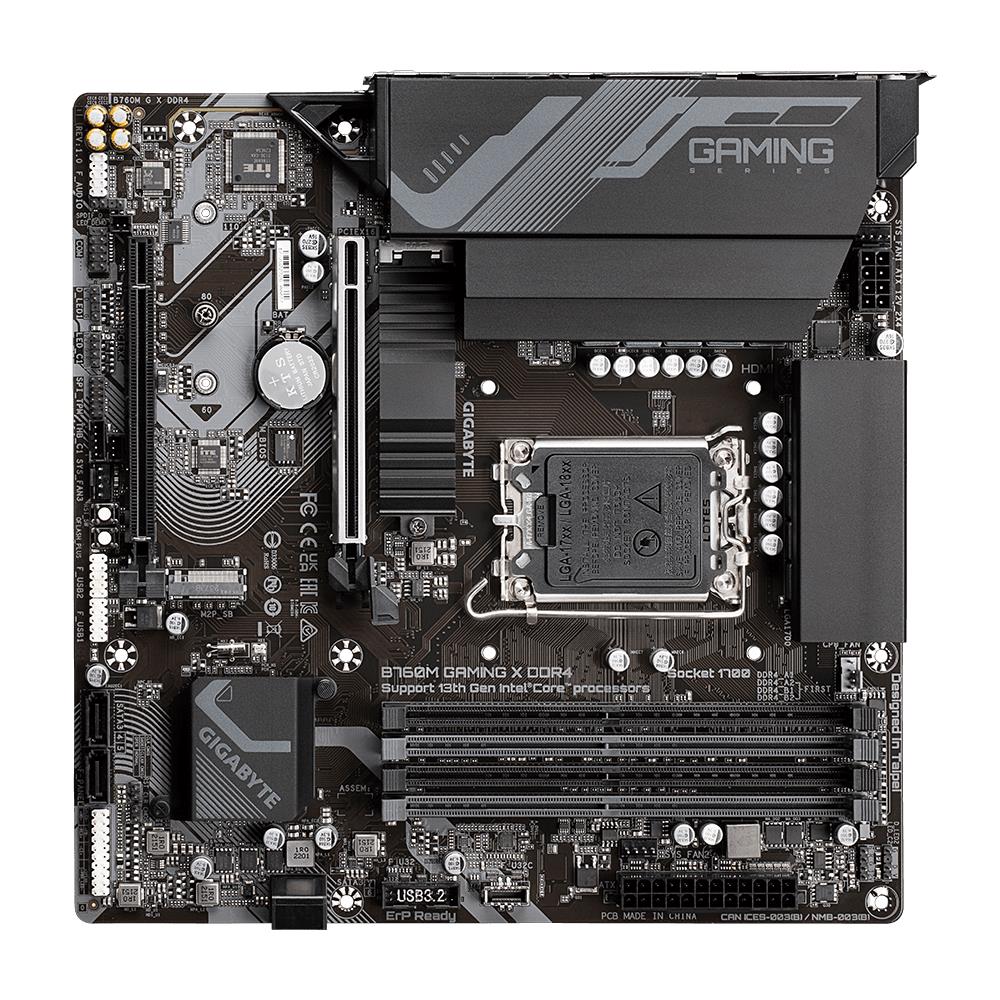

Description: GIGABYTE B760M GAMING X DDR4
Intel Socket LGA 1700
Support 13th and 12th Gen Series Processors
Unparalleled Performance
Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4
4*DIMMs XMP Memory Module Support
Next Generation Storage
2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard
To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch
PCIe 4.0×16 Slot with Quick Release Design
Fast Networks
2.5GbE LAN
Extended Connectivity
Front USB-C 10Gb/s, DP, HDMI
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/B760M-GAMING-X-DDR4-rev-10#ov
Model: B760M GAMING X DDR4
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
Memory slots: 4
M.2: 2
PCI-Express 3.0 16x: 1
PCI-Express 4.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
USB 2.0: 5
USB 3.2: 3
SATA: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 1
Shipping Box Depth: 27.5
Shipping Box Height: 7
Shipping Box Weight: 1.393
Shipping Box Width: 27
Unit Calculated Volume: 0.005197
Product Net Weight: 0.7
Unit Calculated Weight: 1.39
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.275
Unit Box Height: 0.07
Full Description Line: Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2|3xAudio port|SATA|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
