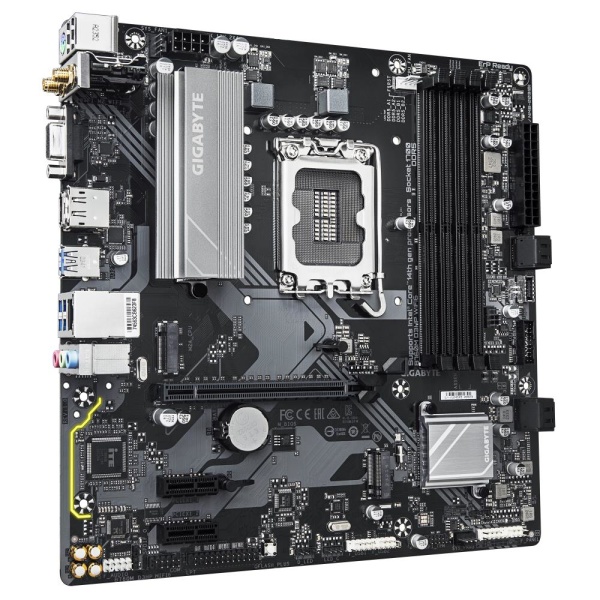

Description: B760M D3HP WIFI6
– Supports Intel® Core™ 14th/ 13th /12th processors
– Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
– Dual Channel DDR5:4*DIMMs XMP Memory Module Support
– Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
– Fast Networks:GbE LAN & Wi-Fi 6 802.11ax
– Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI, D-Sub
– Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
– Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/B760M-D3HP-WIFI6#kf
Model: B760M D3HP WIFI6
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600
Memory slots: 4
M.2: 2
PCI-Express 3.0 1x: 2
PCI-Express 4.0 16x: 1
15pin D-sub: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 3
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated LAN: Realtek (Gigabit)
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Shipping box quantity: 10
Shipping Box Depth: 56
Shipping Box Height: 29.5
Shipping Box Weight: 12
Shipping Box Width: 37.5
Unit Brutto Volume: 0.006195
Unit Net Weight: 0.5
Unit Gross Weight: 1.2
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.275
Unit Box Height: 0.07
Full Description Line: Intel B760 Express|LGA1700|Micro-ATX|DDR5|5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN Realtek (Gigabit)|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
