Description:
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Hybrid 4+1+2+1 Phases 50A PPAK VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
- MOSFET Heatsinks & PCH Heatsink
- 1GbE LAN, USB 3.2 Gen1 Type-C

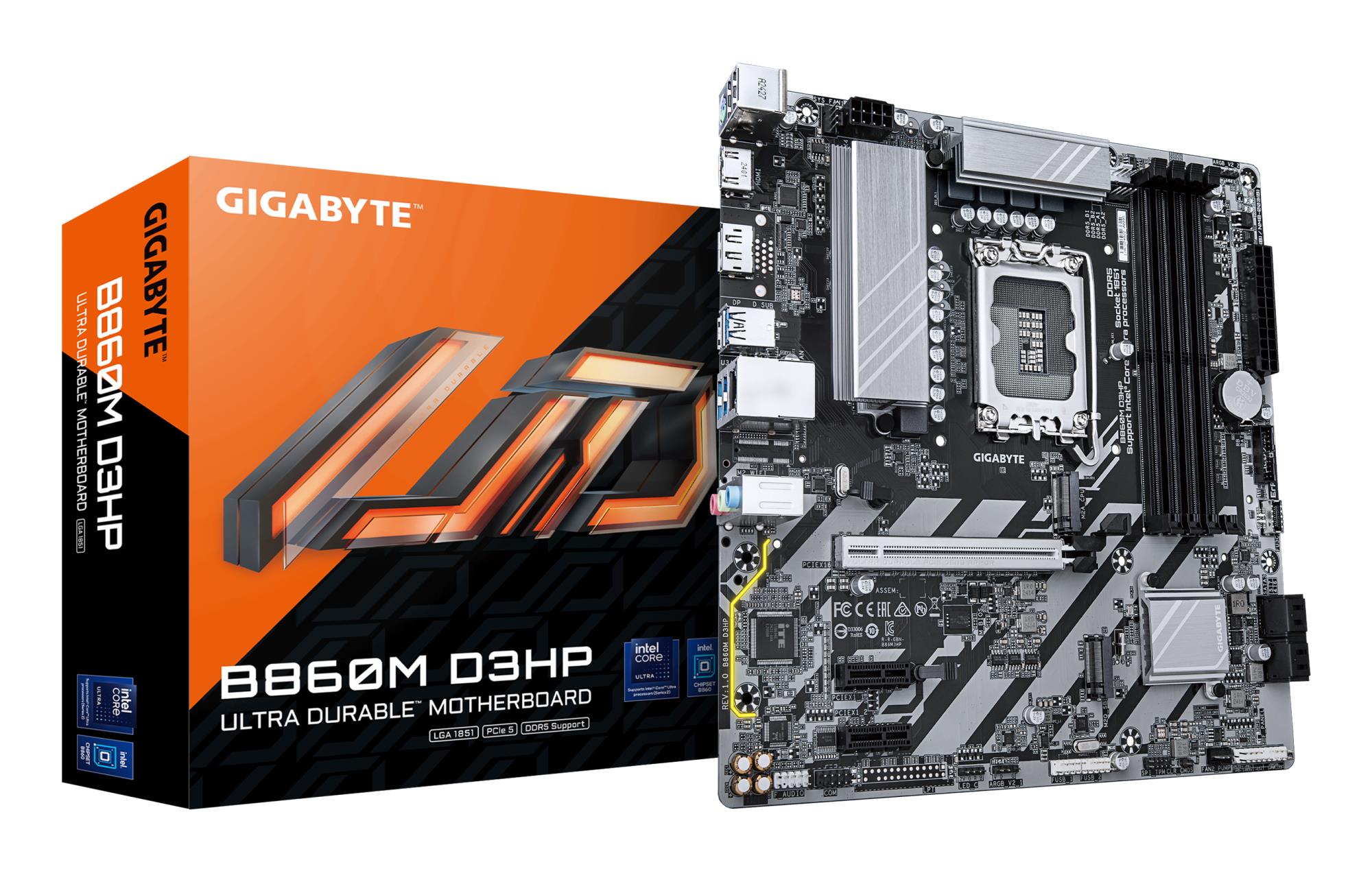

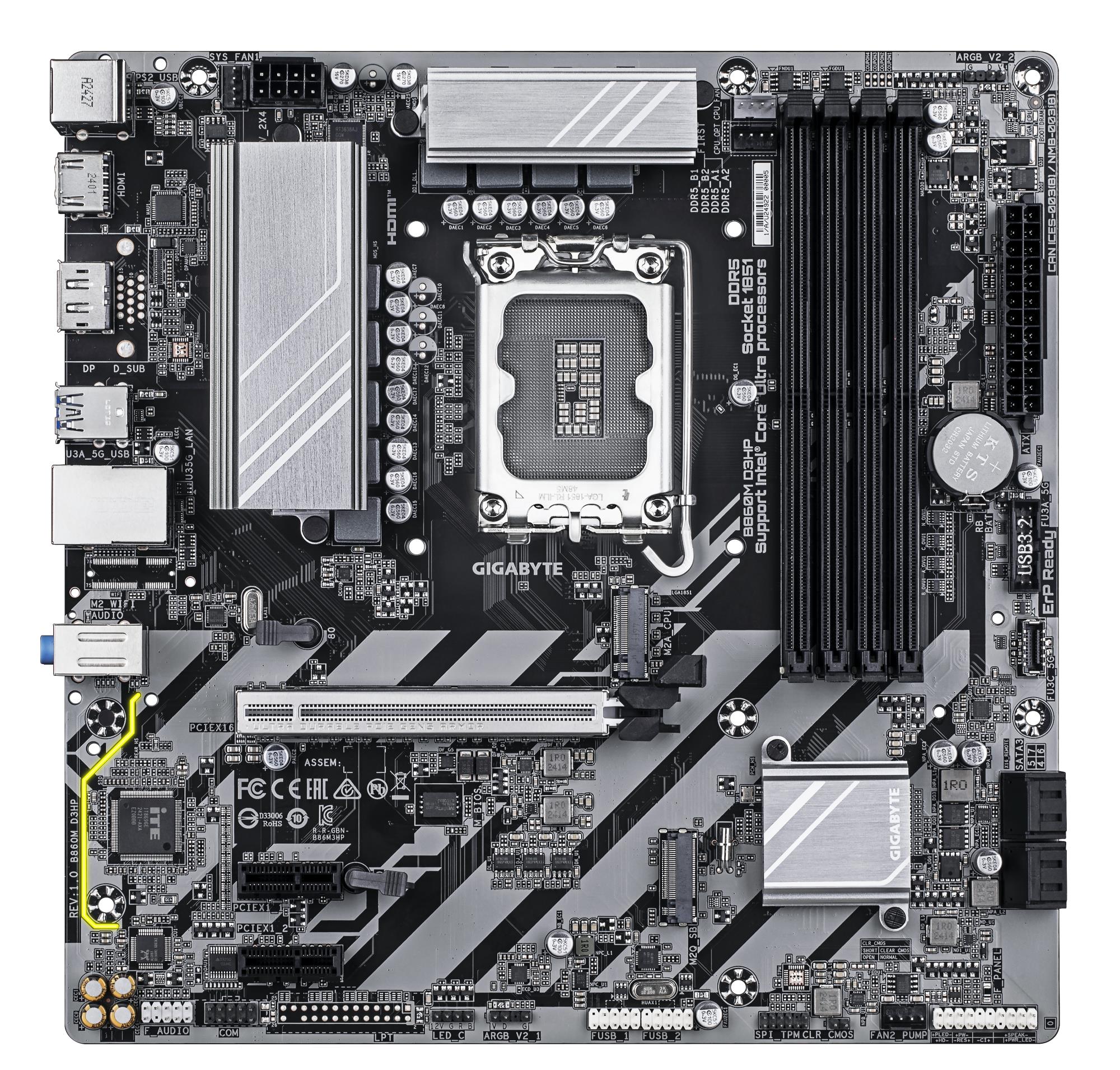

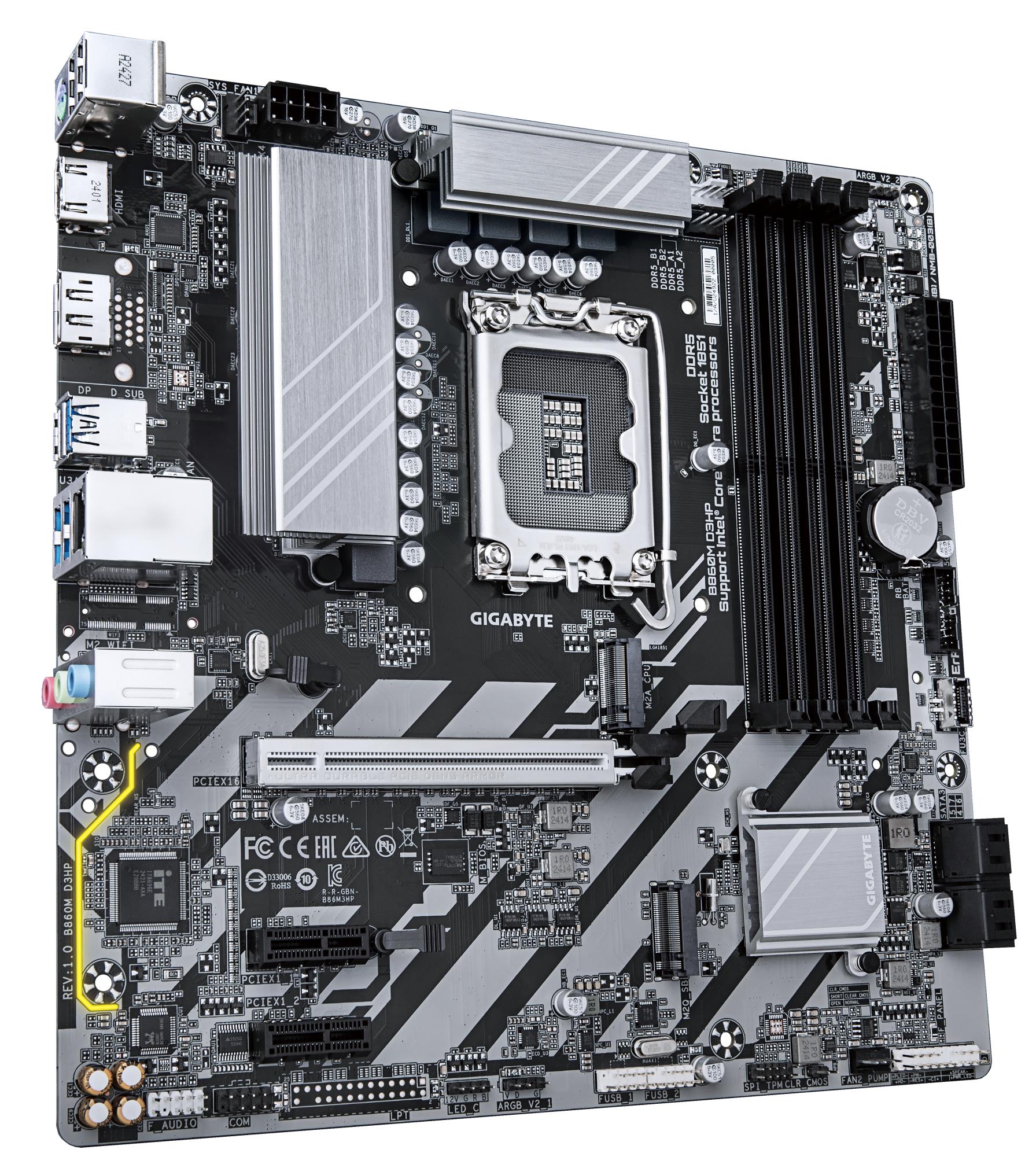

Summary: GIGABYTE B860M D3HP Motherboard – Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.055
Unit Box Length: 0.265
Unit Box Width: 0.265
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9066
Supported memory clock speeds: 5600/6400/9066
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
Number of water pump connectors: 2
RGB LED pin header: Yes
Serial port headers: 1
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

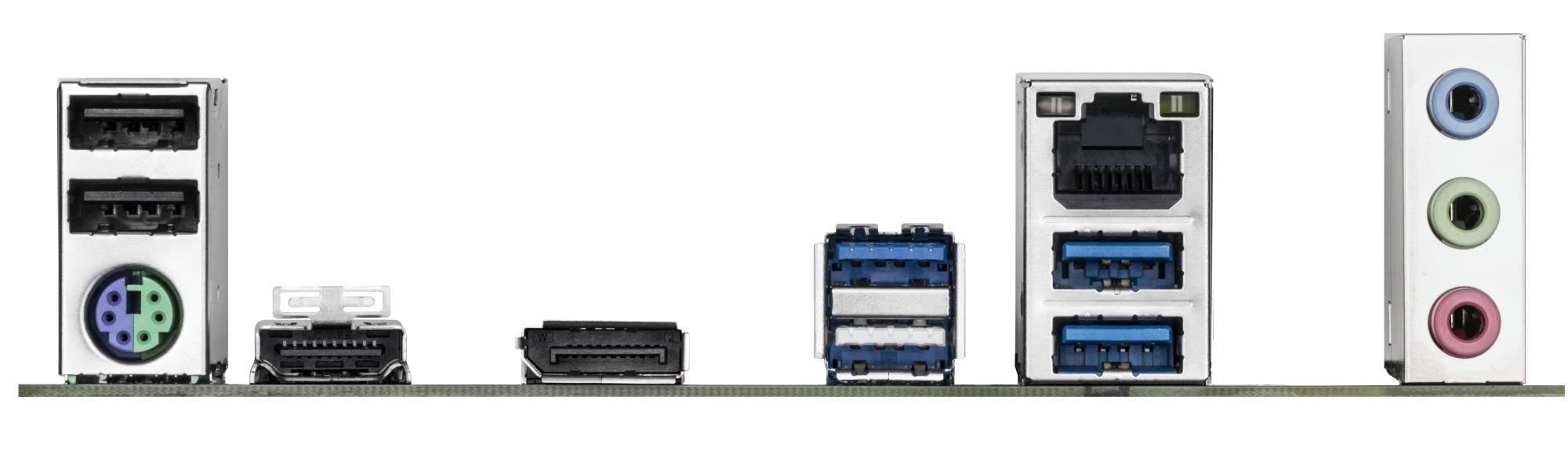

DisplayPort version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: China
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 265
Package height: 54
Package width: 265
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 244
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3
Weight: 1100
Model: B860M D3HP
Units per Shipping Box: 10
Unit Calculated Volume: 0.004588
Unit Calculated Weight: 1.05
