Mainboard GIGABYTE Intel H470 Express LGA1200 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 1x15pin D-sub 1xHDMI 1xDisplayPort 2xAudio-In 1xAudio-Out 4xUSB 2.0 2xUSB 3.2 2xPS/2 1xRJ45 H510MS2HV3

Description:

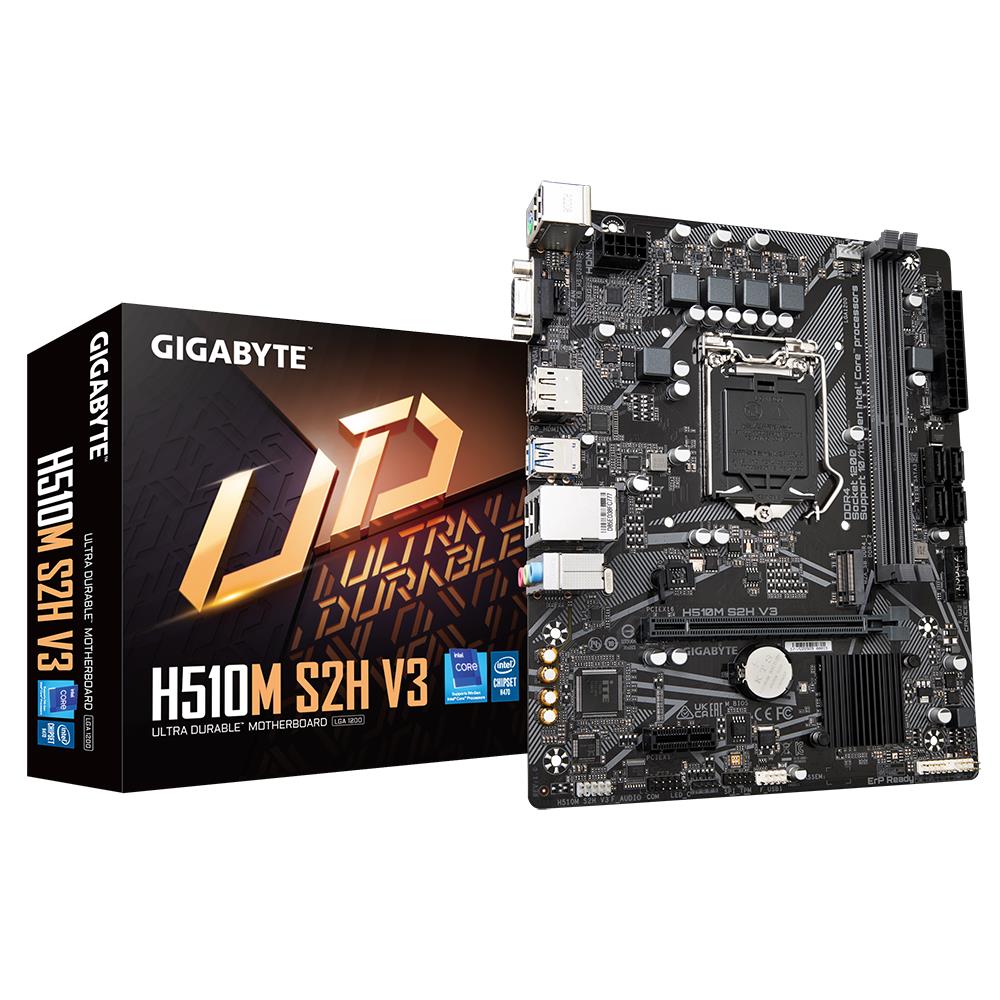

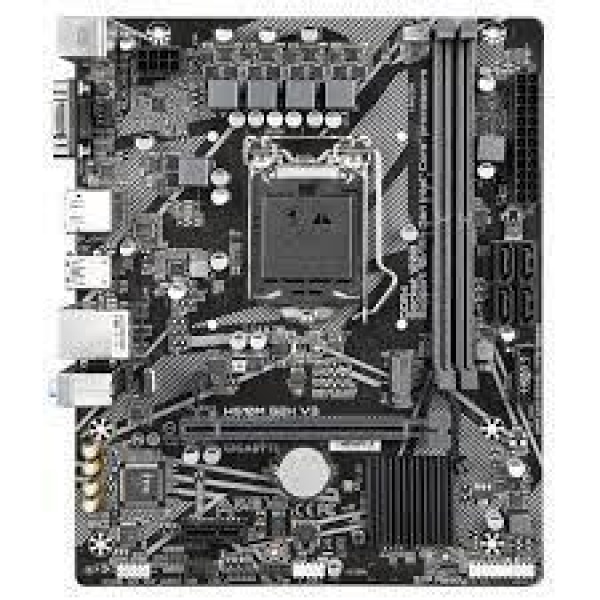

H510M S2H V3

Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

Supports 11th/10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Vendor Homepage: www.gigabyte.com/Motherboard/H510M-S2H-V3-rev-10#kf
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.055
Unit Box Length: 0.27
Unit Box Width: 0.235
PCI-Express 3.0 1x: 1
PCI-Express 3.0 16x: 1
M.2: 1
15pin D-sub: 1
HDMI: 1
DisplayPort: 1
Audio-In: 2
Audio-Out: 1
USB 2.0: 4
USB 3.2: 2
PS/2: 2
RJ45: 1
SATA: Yes
Model: H510M S2H V3 (rev. 1.0)
Chipset: Intel H470 Express
Socket: LGA1200
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3000/3200
Memory slots: 2
Integrated video: Yes
Integrated LAN: Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
