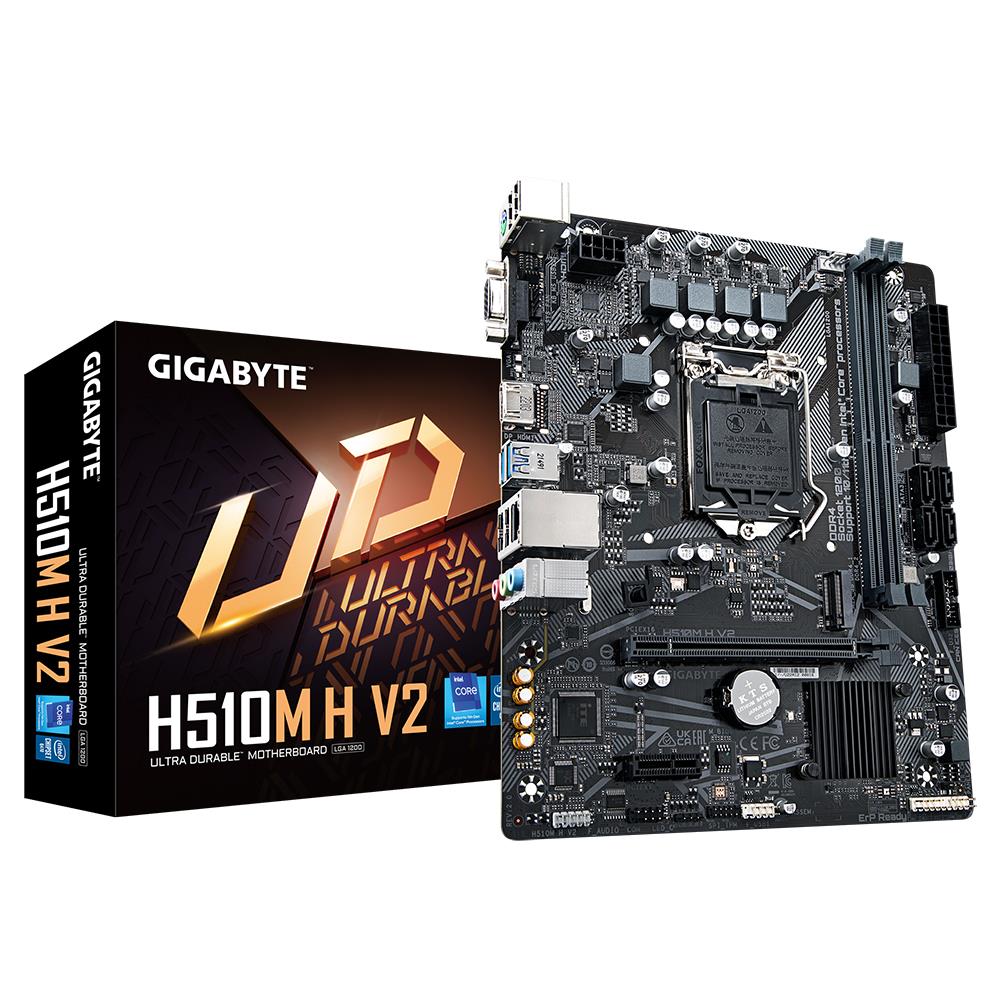

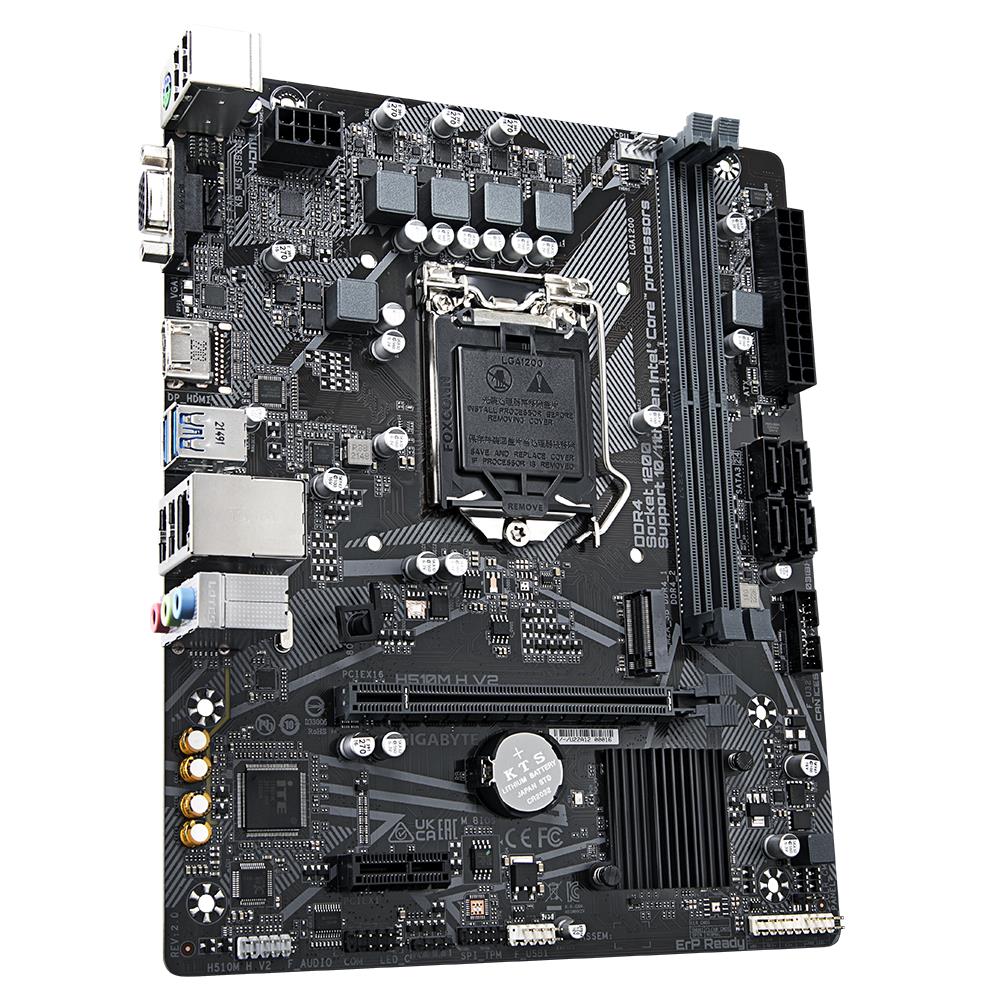

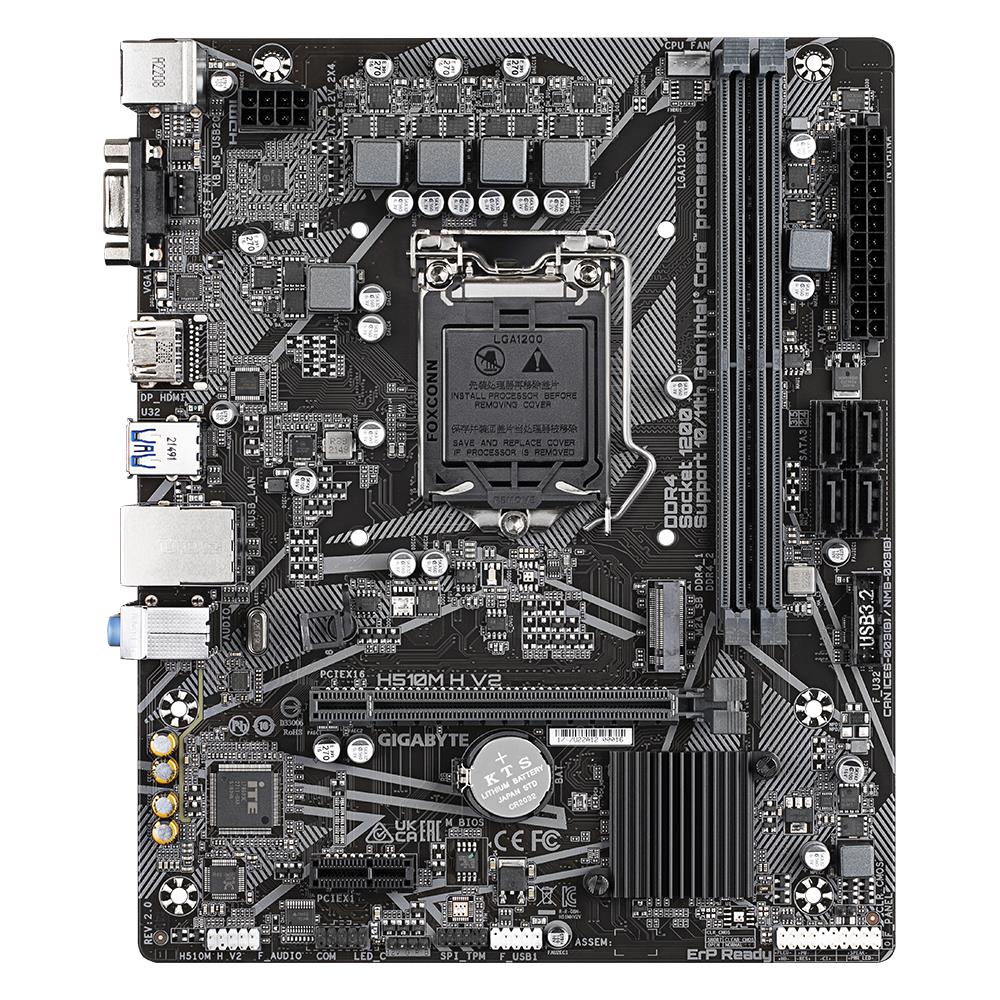

Description: H510M H V2 (rev. 2.0)
Intel® Q470 Chipset
Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
Supports 11th/10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Vendor Homepage: www.gigabyte.com/Motherboard/H510M-H-V2-rev-20#kf
Model: H510M H V2 2.0
Chipset: Intel Q470 Express
Socket: LGA1200
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3000/3200
Memory slots: 2
M.2: 1
PCI-Express 3.0 16x: 1
PCI-Express 3.0 1x: 1

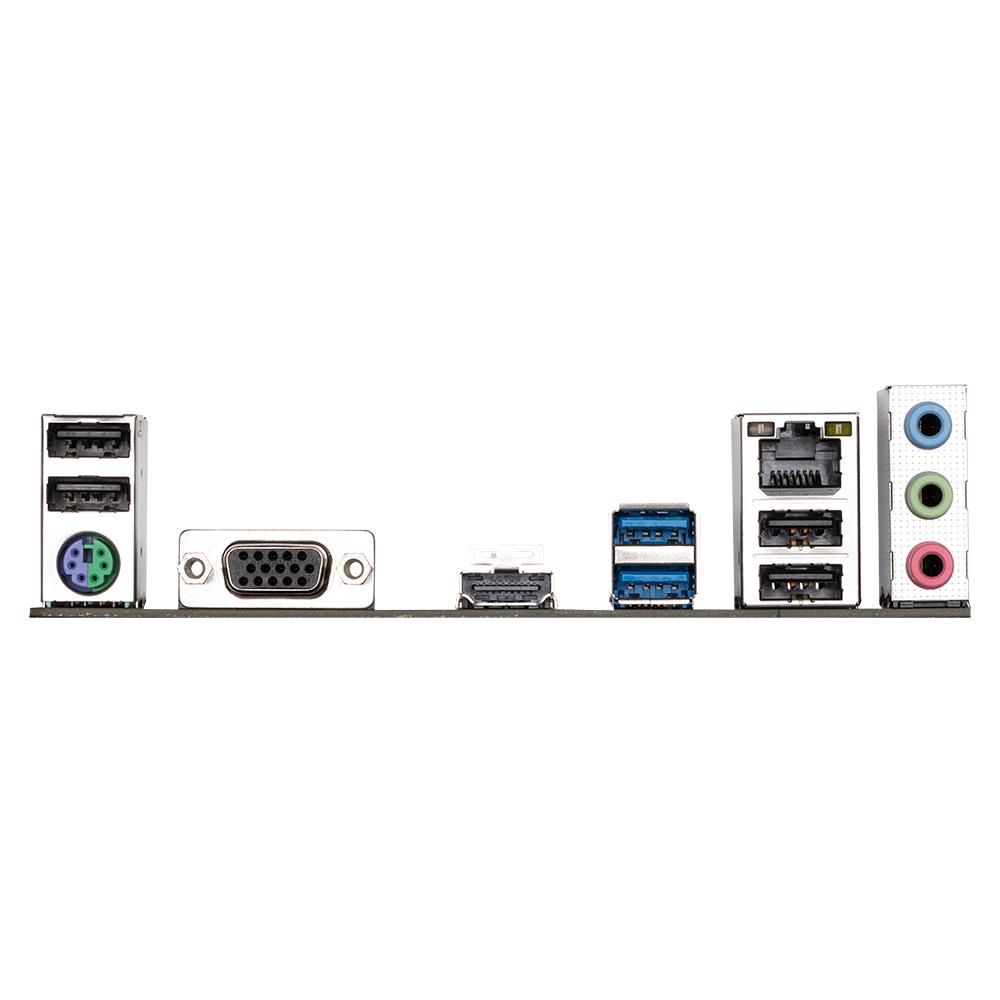

15pin D-sub: 1
Audio port: 3
HDMI: 1
PS/2: 2
RJ45: 1
USB 2.0: 4
USB 3.2: 2
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Yes
Integrated LAN: Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 56.3
Shipping Box Height: 25.7
Shipping Box Weight: 7.3
Shipping Box Width: 28.7
Unit Calculated Volume: 0.004153
Product Net Weight: 0.6
Unit Calculated Weight: 0.73
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.054
Unit Box Height: 0.236
Full Description Line: Intel Q470 Express|LGA1200|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
