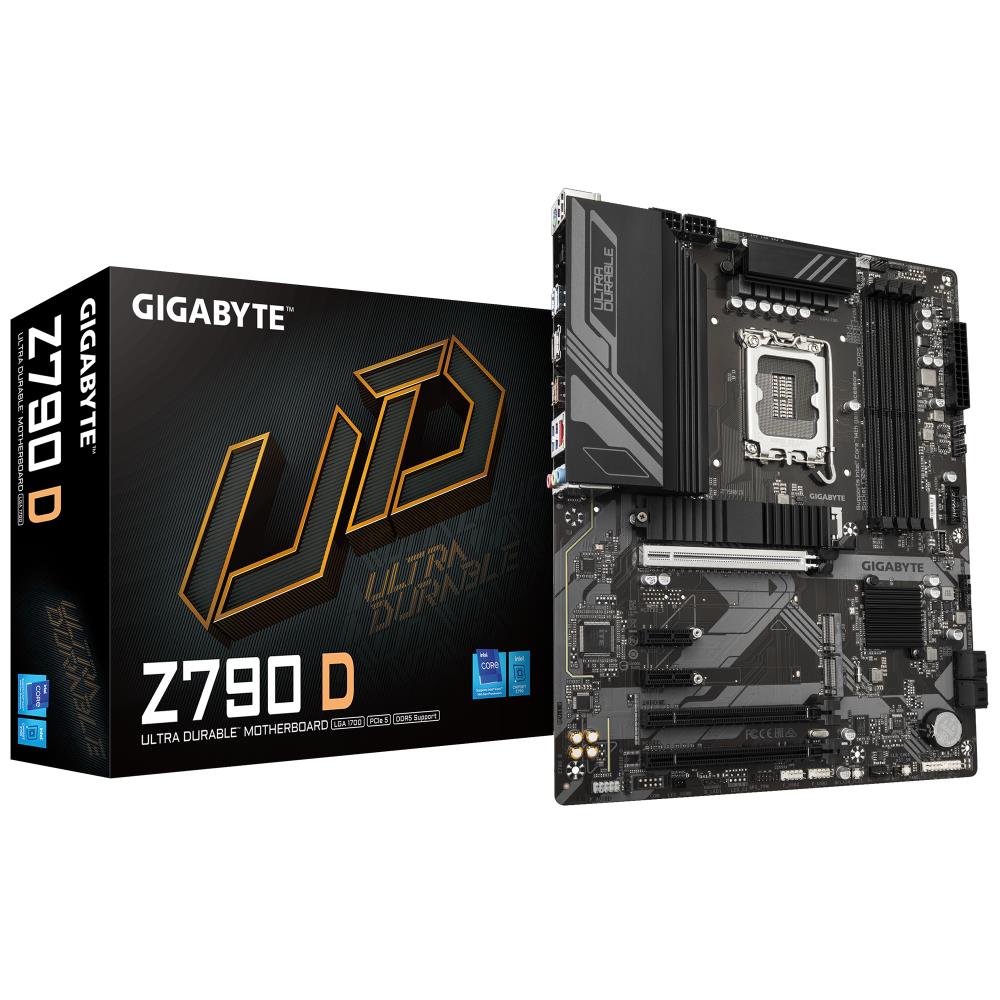

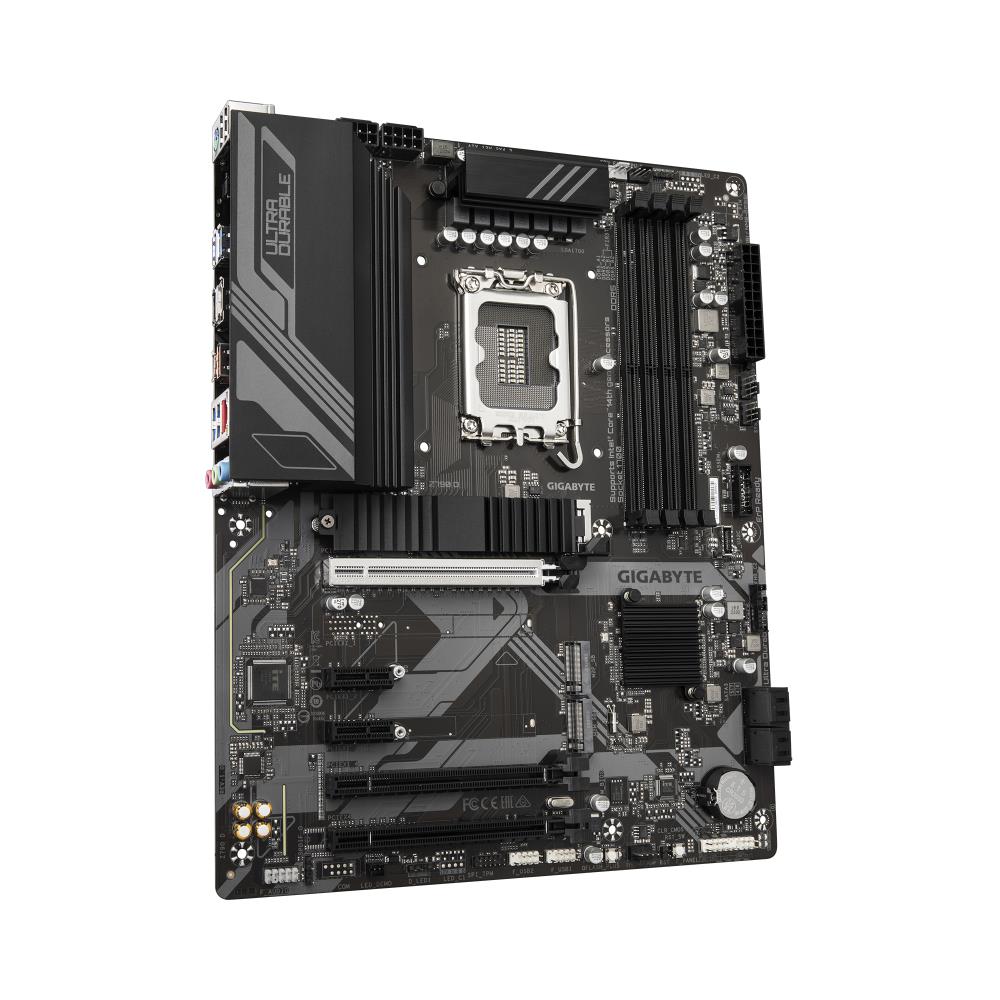

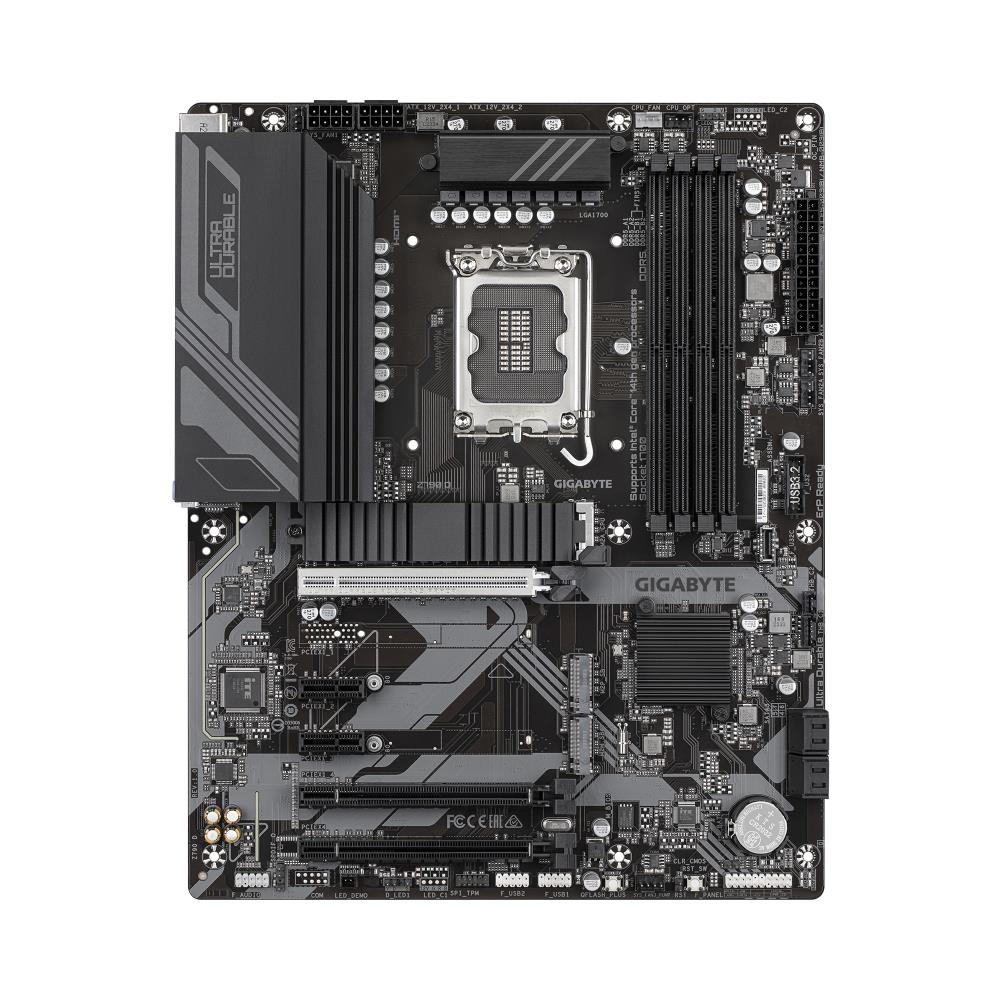

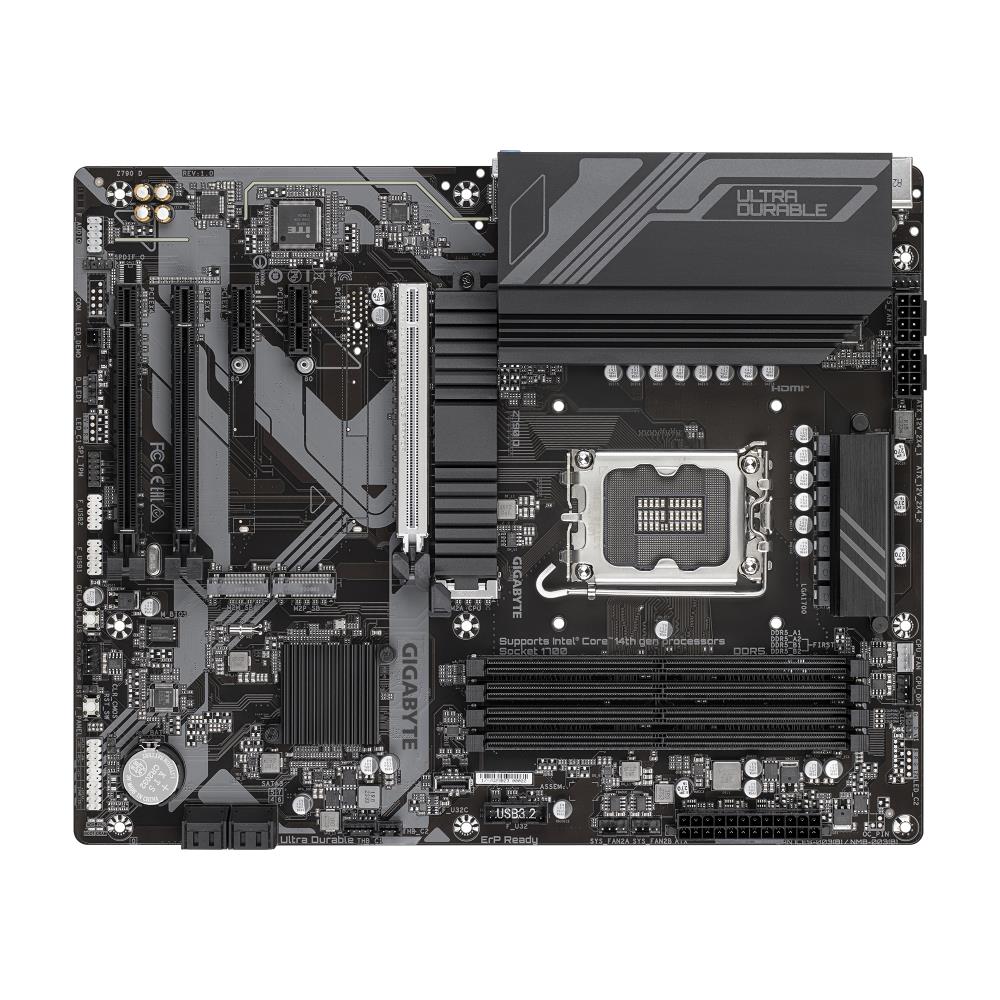

Description: Z790 D
– Supports Intel® Core™ 14th/ 13th /12th processors
– Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
– Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
– Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
– Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
– EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
– Fast Networks:2.5GbE LAN
– Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
– Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
– Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/Z790-D-rev-10#kf
Model: Z790 D
Chipset: Intel Z790
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6800/7000/7200/7400/7600
Memory slots: 4
M.2: 3
PCI-Express 3.0 16x: 1
PCI-Express 3.0 1x: 2
PCI-Express 4.0 4x : 1
PCI-Express 5.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 5
USB-C: 1
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
TPM: Header
Shipping box quantity: 8
Shipping Box Depth: 57.5
Shipping Box Height: 38
Shipping Box Weight: 14.7
Shipping Box Width: 37.5
Unit Brutto Volume: 0.01024
Unit Net Weight: 1.4
Unit Gross Weight: 1.84
CnCode: 84733020
Unit Box Width: 0.272
Unit Box Length: 0.387
Unit Box Height: 0.082
Full Description Line: Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6400/6200/6000/5800/5600/5400/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Category Code: MBI
