Mainboard MSI AMD B650 SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 2x 1xPCI-Express 4.0 16x 3xM.2 1xHDMI 1xDisplayPort 2xUSB 2.0 7xUSB 3.2 1xUSB-C 1xOptical S/PDIF 1xRJ45 3xAudio port PROB650-AWIFI

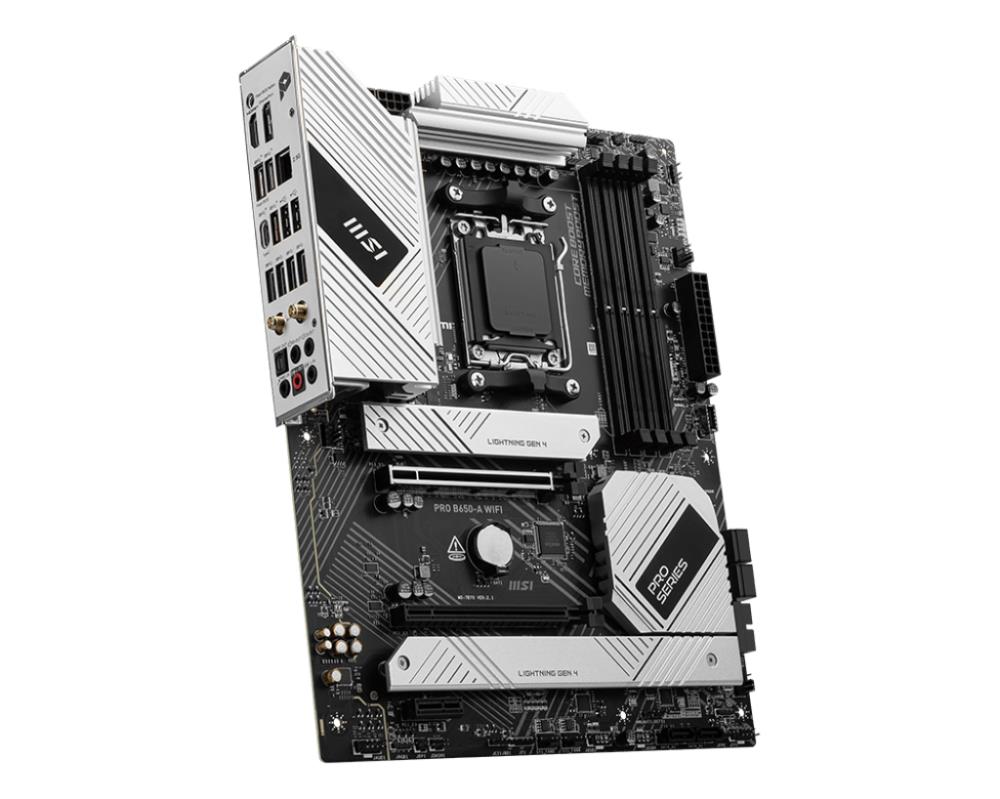

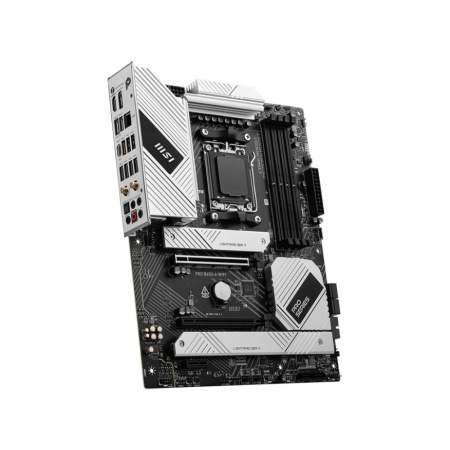

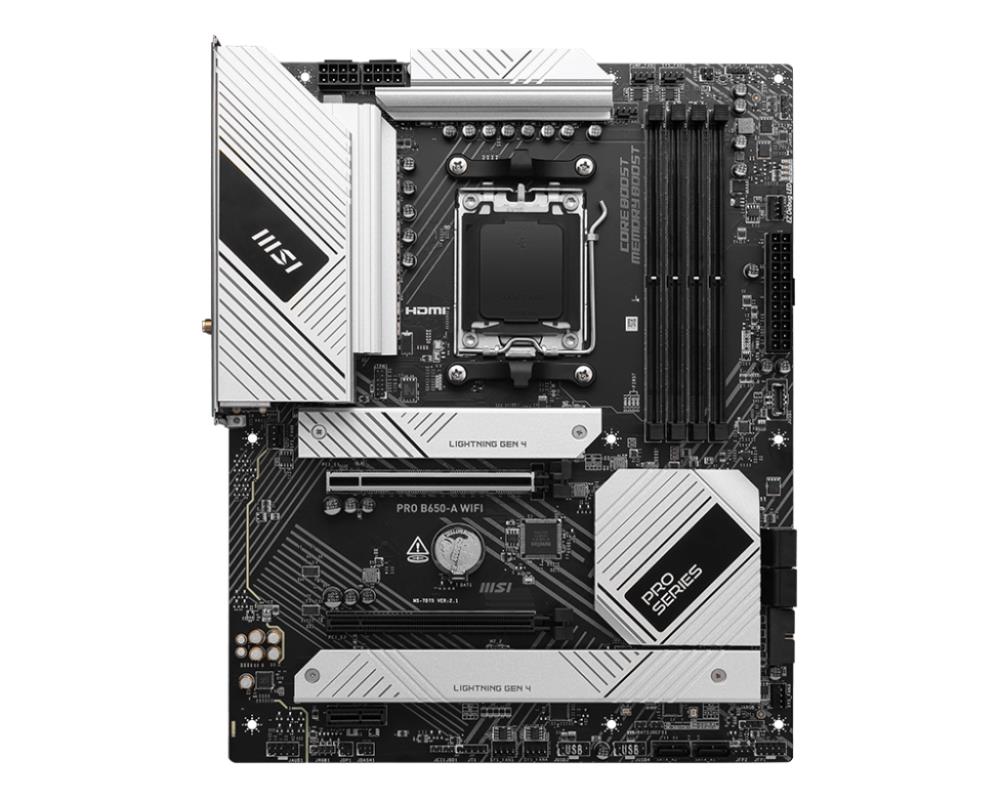

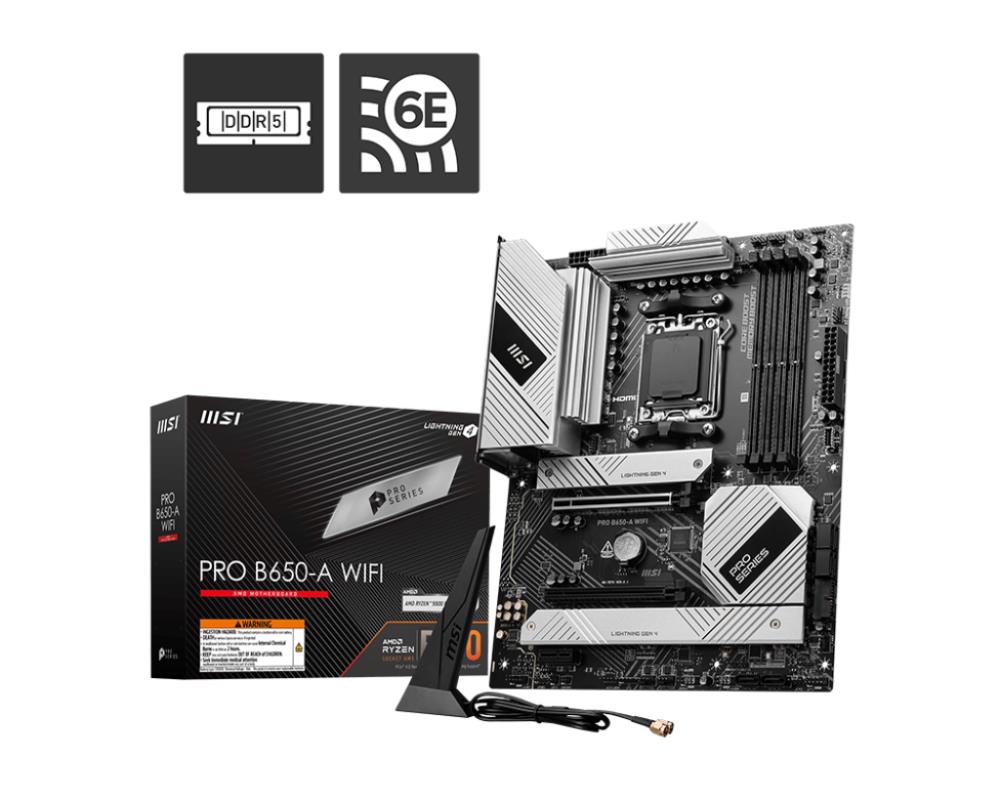

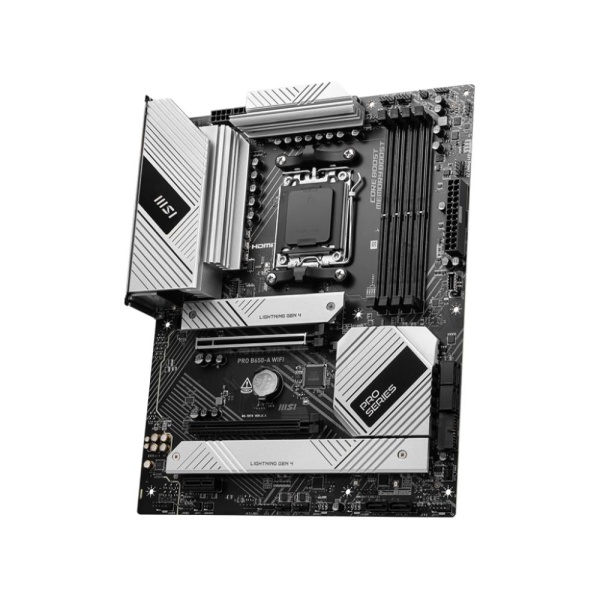

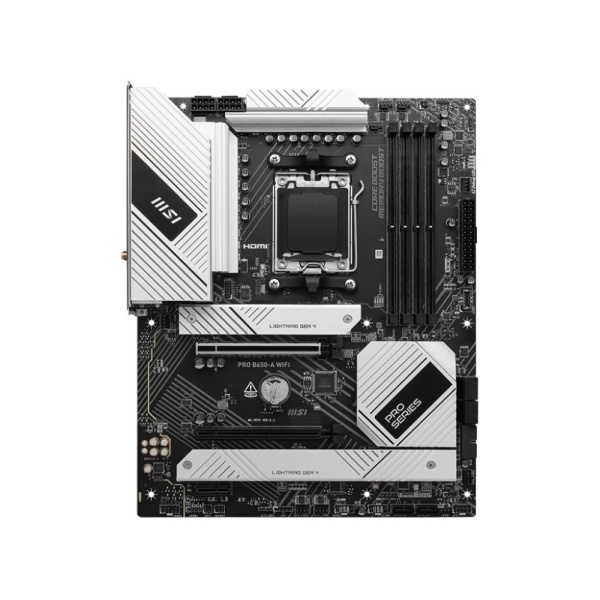

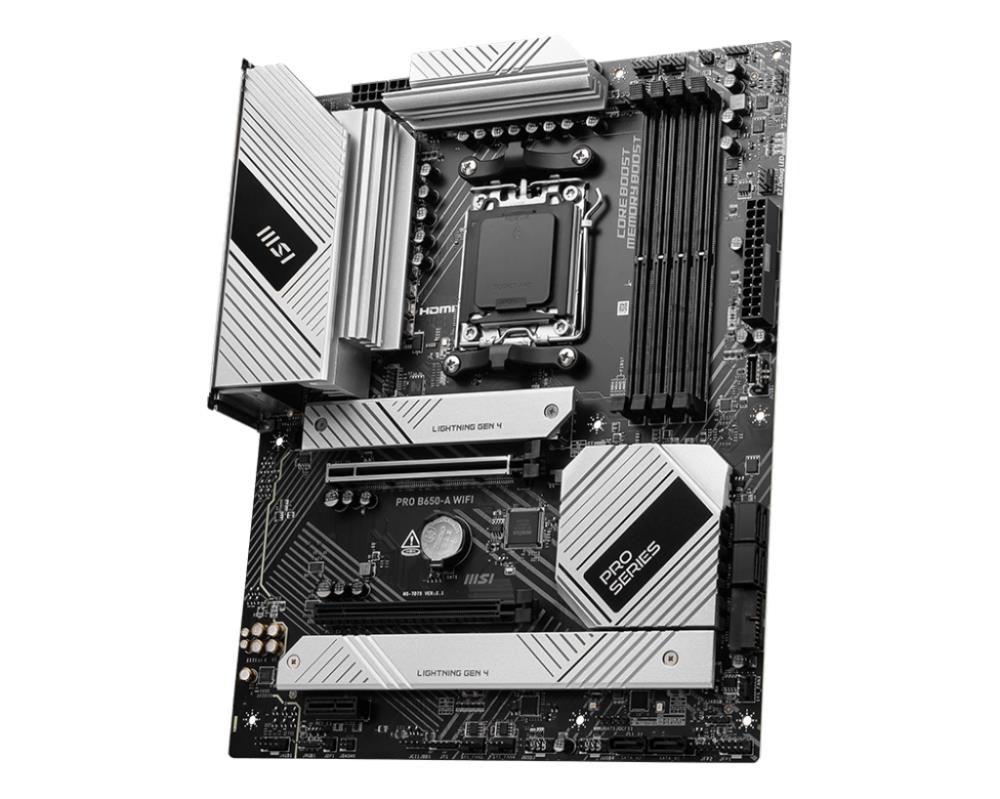

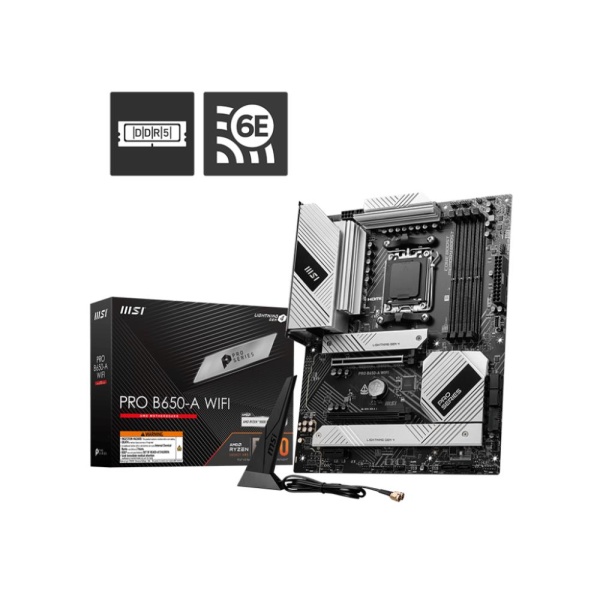

Description: PRO B650-A WIFI

– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

– Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)

– Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

– Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work

– High Quality PCB: 6-layer PCB made by 2oz thickened copper

– Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2

– 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

– AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage: www.msi.com/Motherboard/PRO-B650-A-WIFI
Model: PRO B650-A WIFI
Chipset: AMD B650
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
Memory slots: 4
M.2: 3
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
PCI-Express 4.0 2x: 1

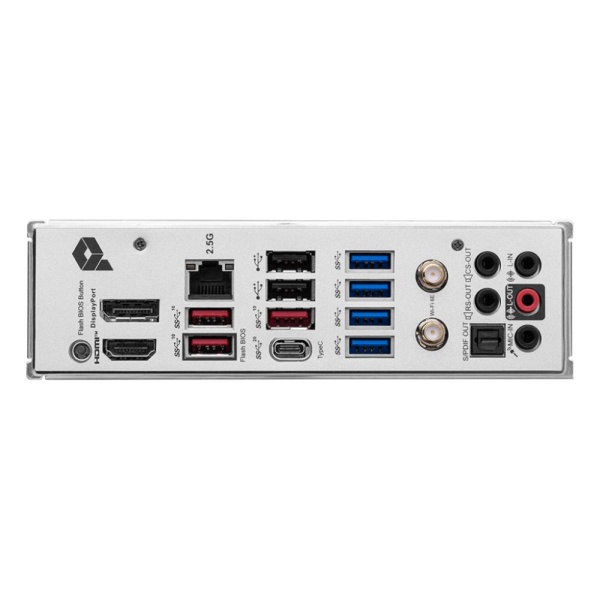

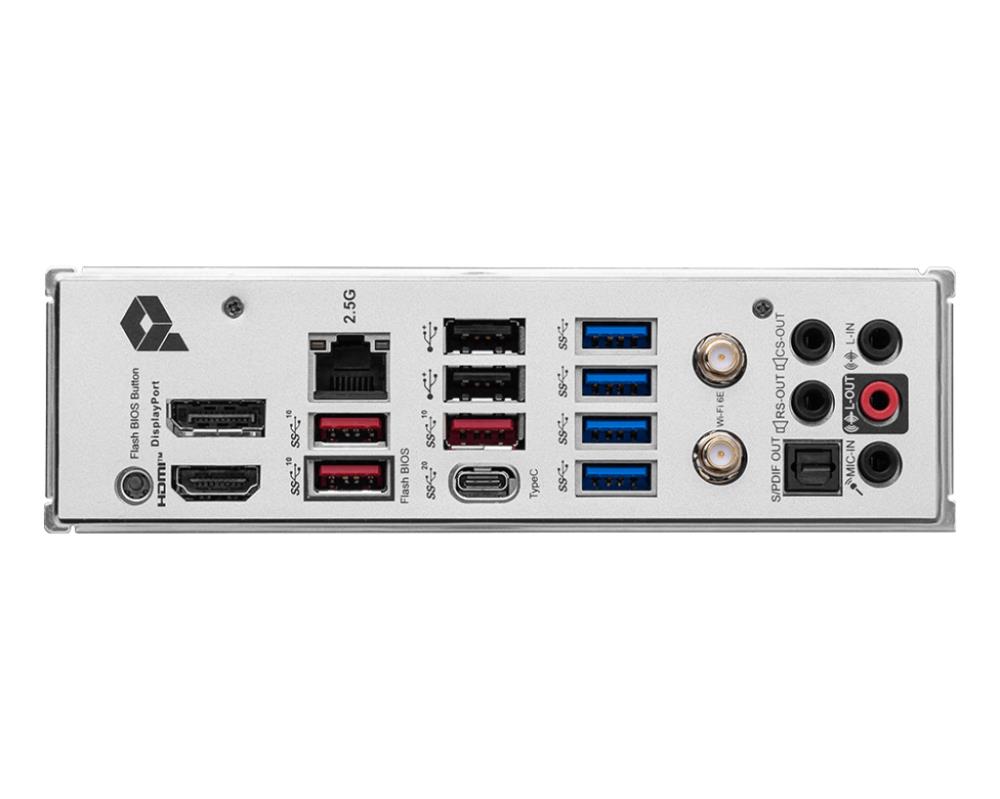

Audio port: 3
DisplayPort: 1
HDMI: 1
Optical S/PDIF: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 7
USB-C: 1
Bluetooth: Yes
SATA: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC4080
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Units per Shipping Box: 5
Shipping Box Depth: 38
Shipping Box Height: 38
Shipping Box Weight: 10.01
Shipping Box Width: 29
Unit Calculated Volume: 0.008375
Product Net Weight: 0.8
Unit Calculated Weight: 2
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.345
Unit Box Height: 0.07
Full Description Line: AMD B650|SAM5|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Category Code: MBA
