Description:

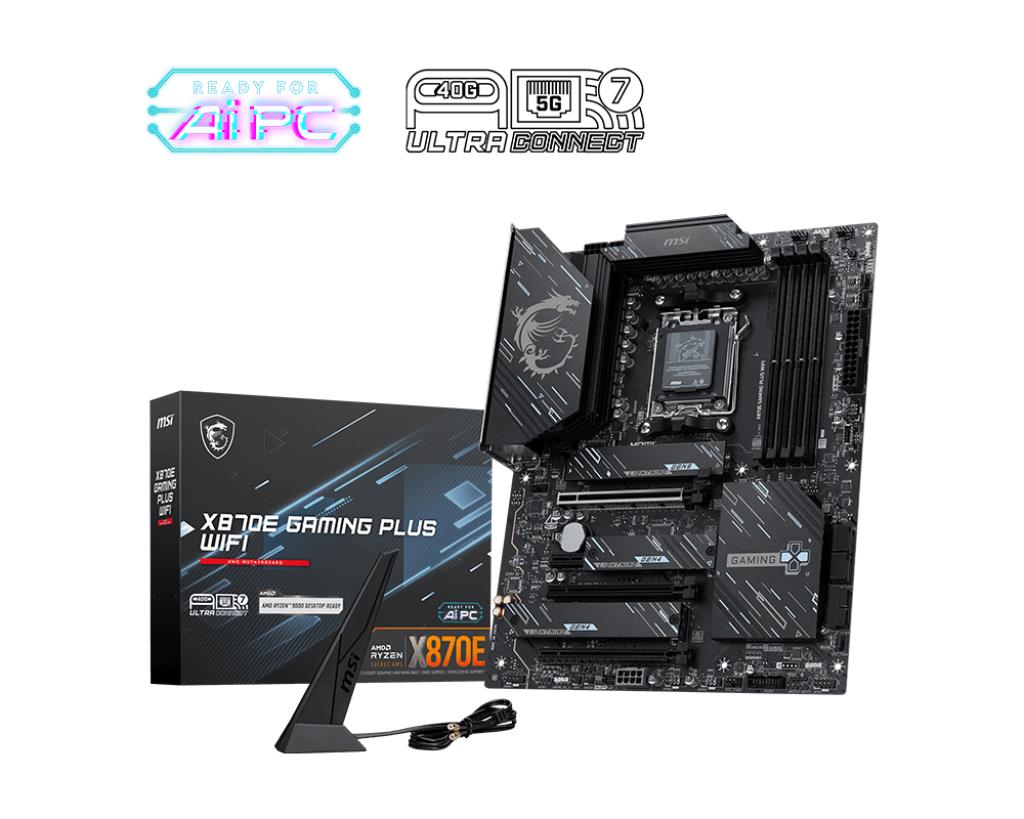

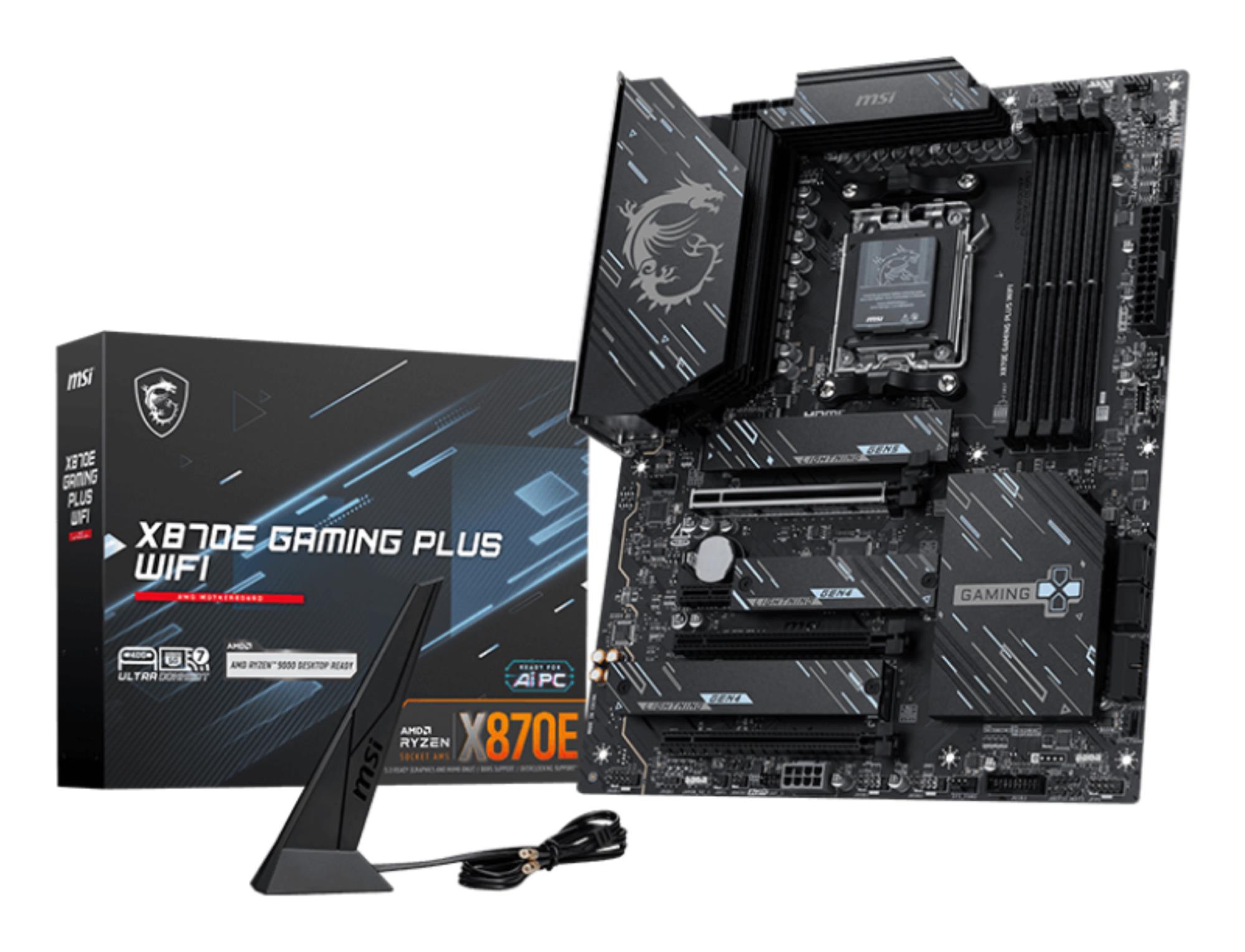

X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.24
Unit Box Width: 0.27
M.2: 3
PCI-Express 3.0 1x: 1
PCI-Express 4.0 4x : 1
PCI-Express 5.0 16x: 1
Audio port: 3
HDMI: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 4
USB-C: 2
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Model: X870E GAMING PLUS WIFI
Chipset: AMD X870E
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5600/8200
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 5
Units per Pallet: 0
Units per Shipping Box: 5
Unit Calculated Volume: 0.008014
Product Net Weight: 1.5
Unit Calculated Weight: 2.18
