Description:

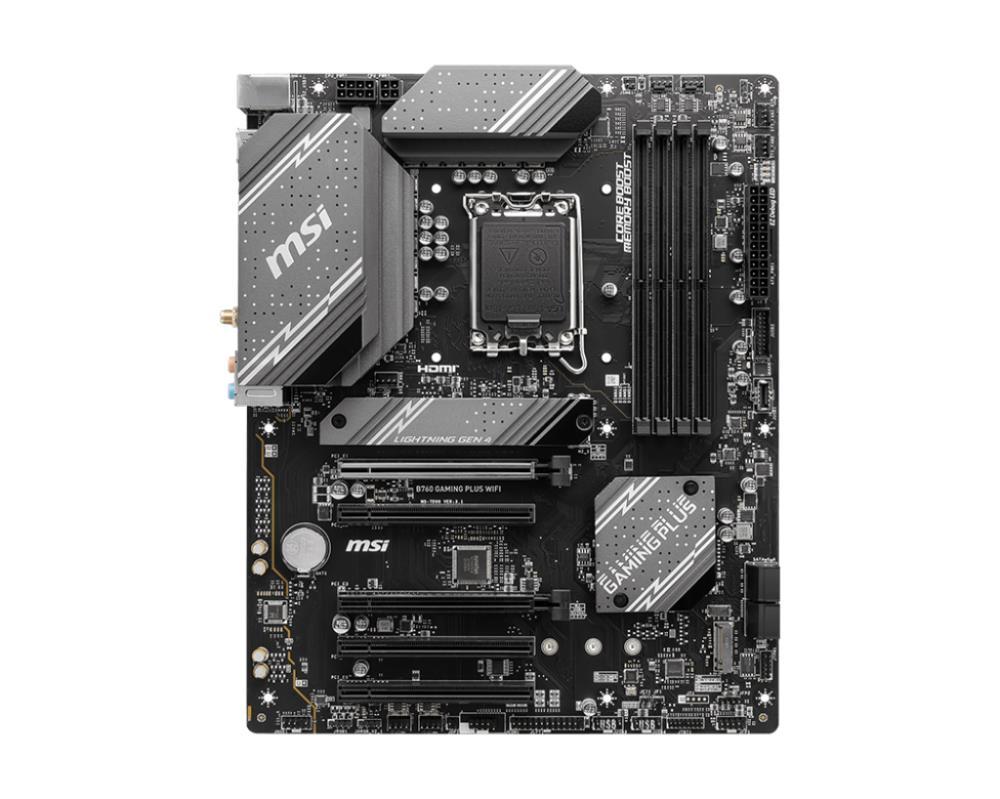

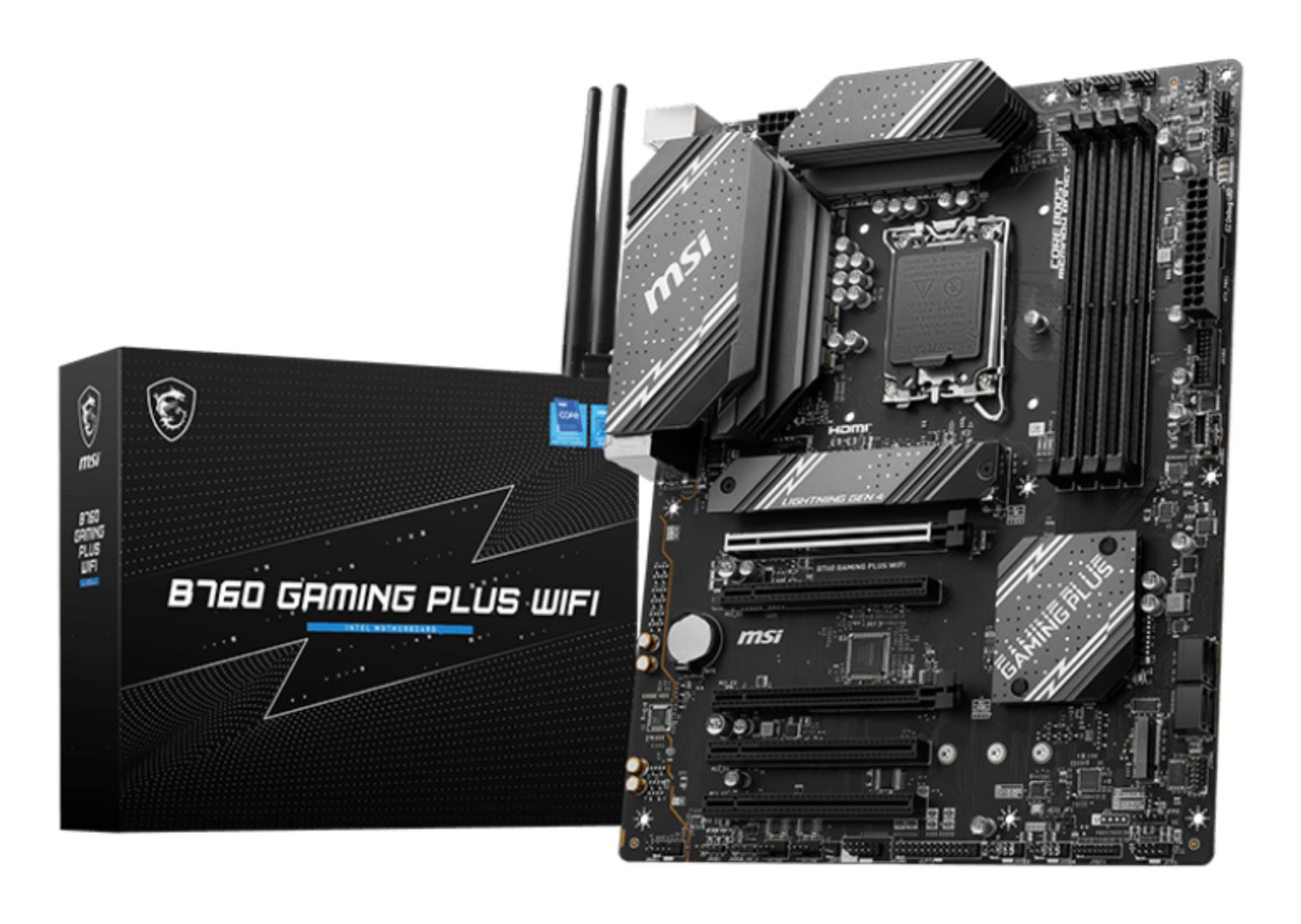

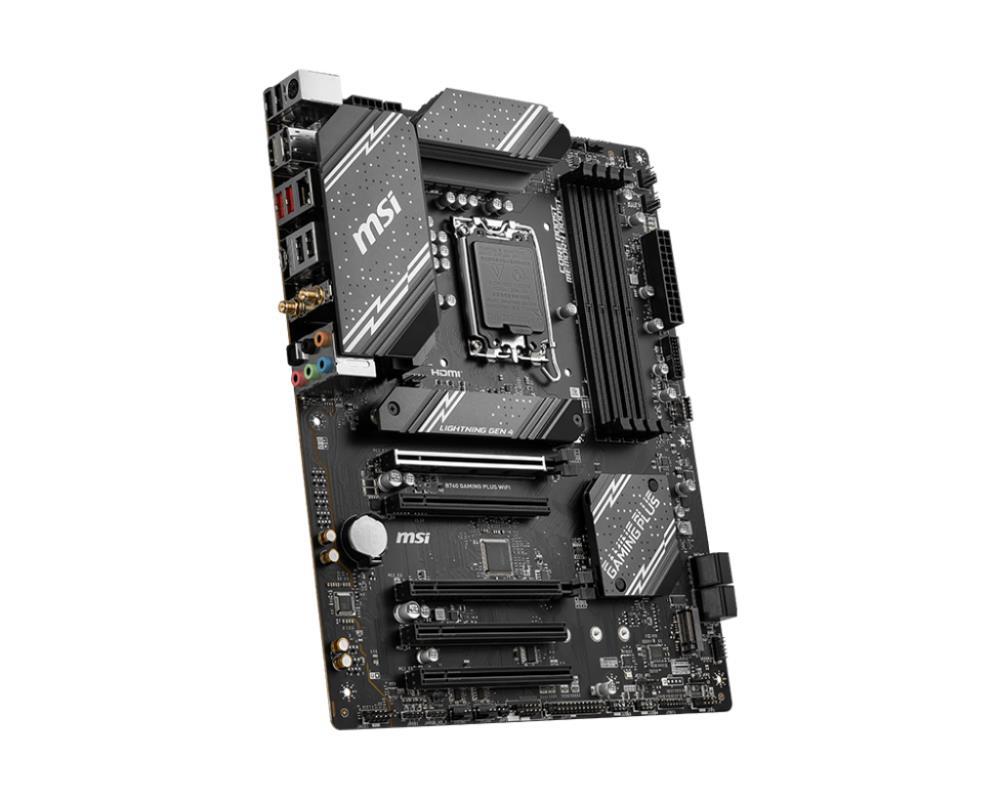

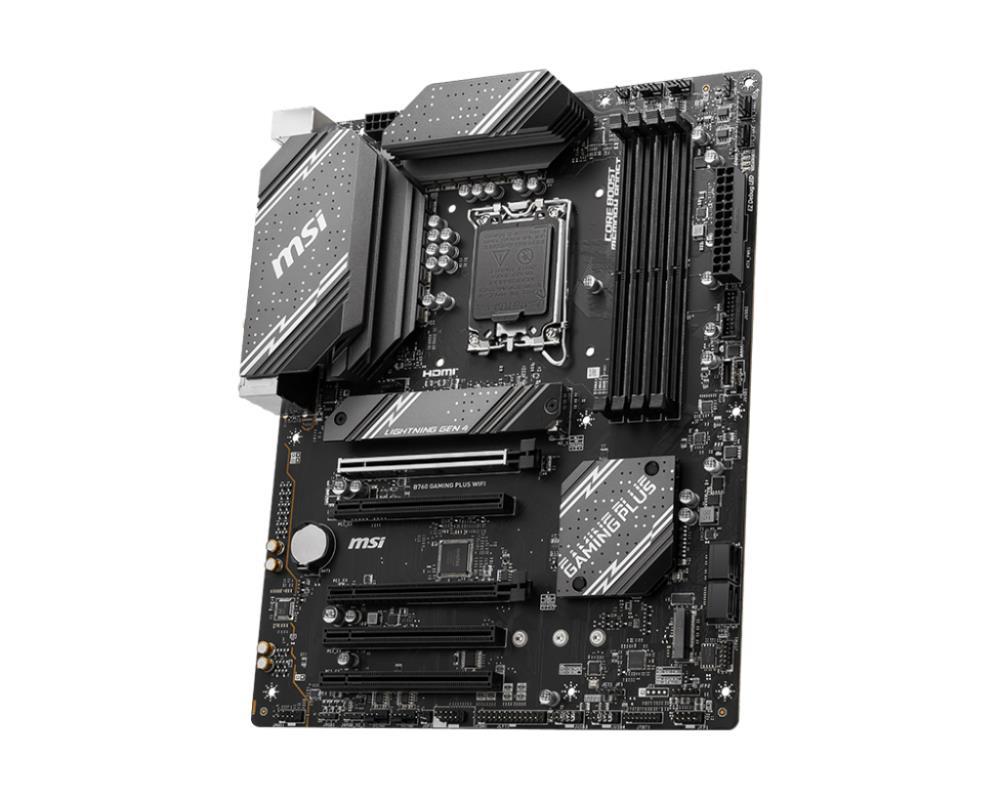

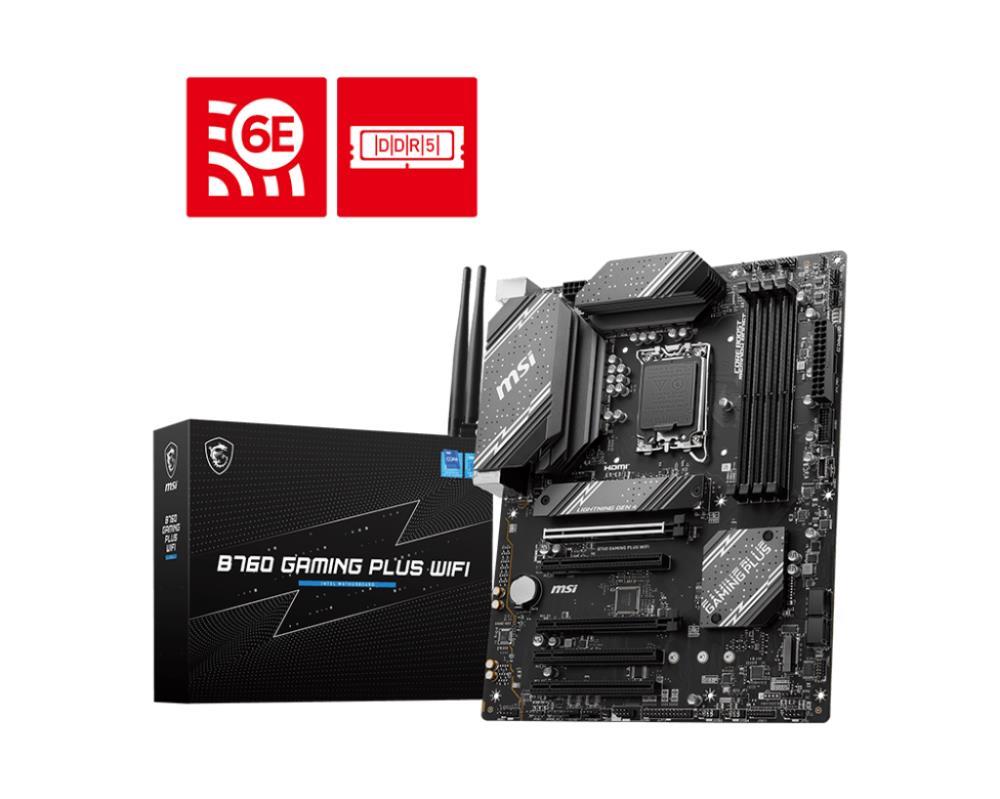

- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.35
Unit Box Width: 0.272
PCI-Express 16x: 5
M.2: 2
HDMI: 1
DisplayPort: 1
USB 2.0: 2
USB 3.2: 2
USB-C: 1
PS/2: 1
Optical S/PDIF: 1
RJ45: 1
Audio port: 5
USB 2.0: Yes
USB 3.2: Yes
Bluetooth: Yes
WiFi: Yes
Model: B760 GAMING PLUS WIFI
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
