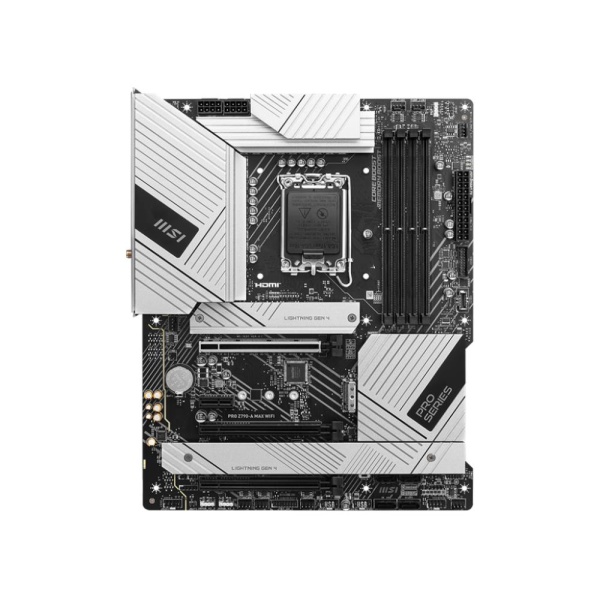

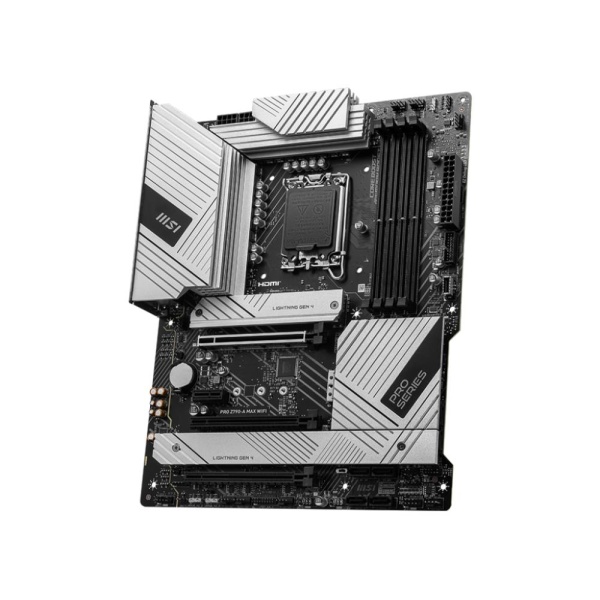

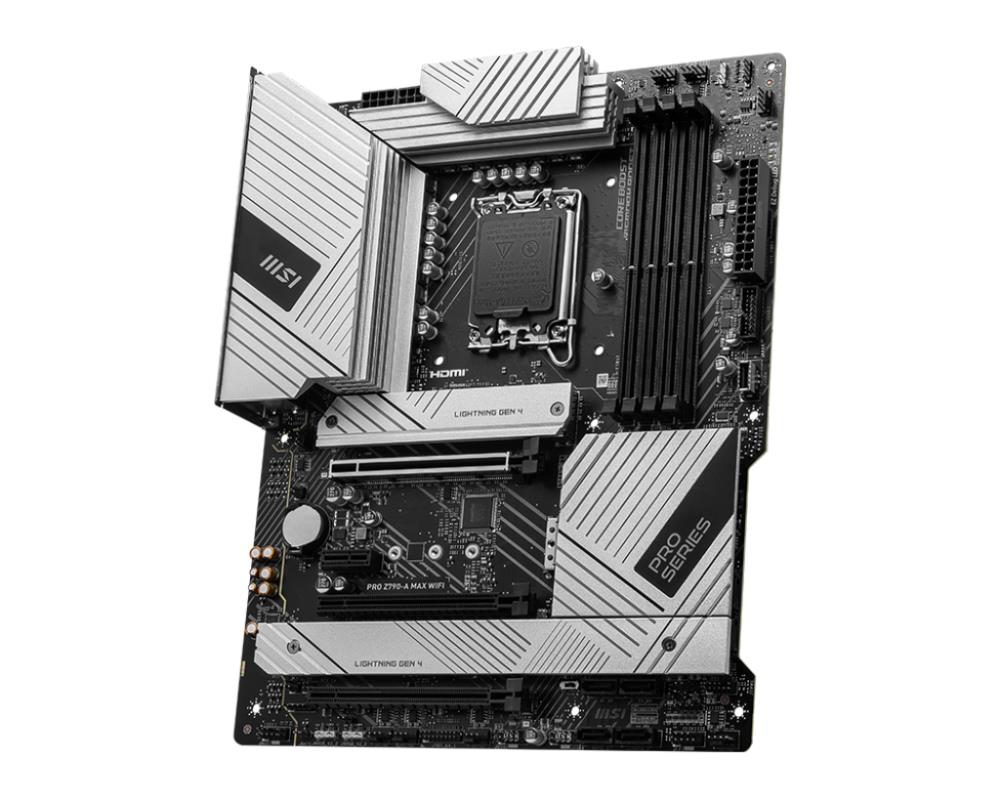

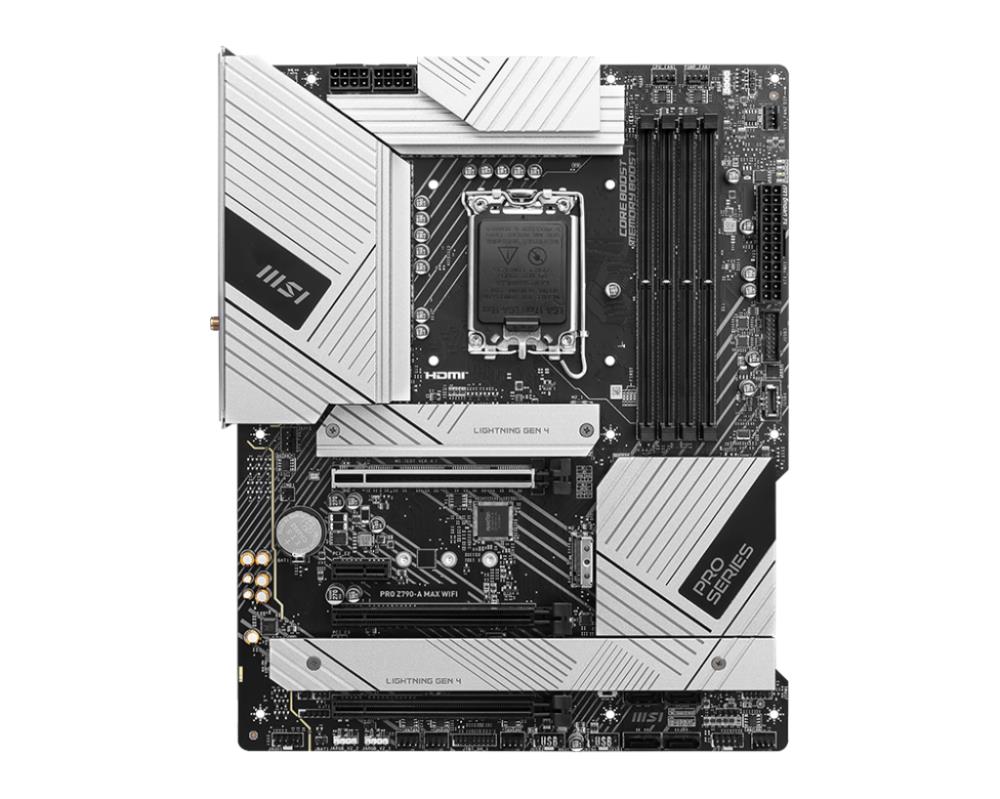

Description: PRO Z790-A MAX WIFI
– Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
– Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
– Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
– Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
– Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
– 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
Model: PRO Z790-A MAX WIFI
Chipset: Intel Z790
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800
Memory slots: 4
M.2: 4
PCI-Express 16x: 3
PCI-Express 1x: 1
Audio port: 5
DisplayPort: 1
HDMI: 1
Optical S/PDIF: 1
RJ45: 1
USB 2.0: 1
USB 3.2: 5
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC4080
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 5
Shipping Box Depth: 38.5
Shipping Box Height: 37
Shipping Box Weight: 10.75
Shipping Box Width: 28
Unit Calculated Volume: 0.007977
Product Net Weight: 1.5
Unit Calculated Weight: 2.15
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.345
Unit Box Height: 0.072
Full Description Line: Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Category Code: MBI
