Mainboard GIGABYTE AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 4 B650MAORUSELITE1.3

Description:

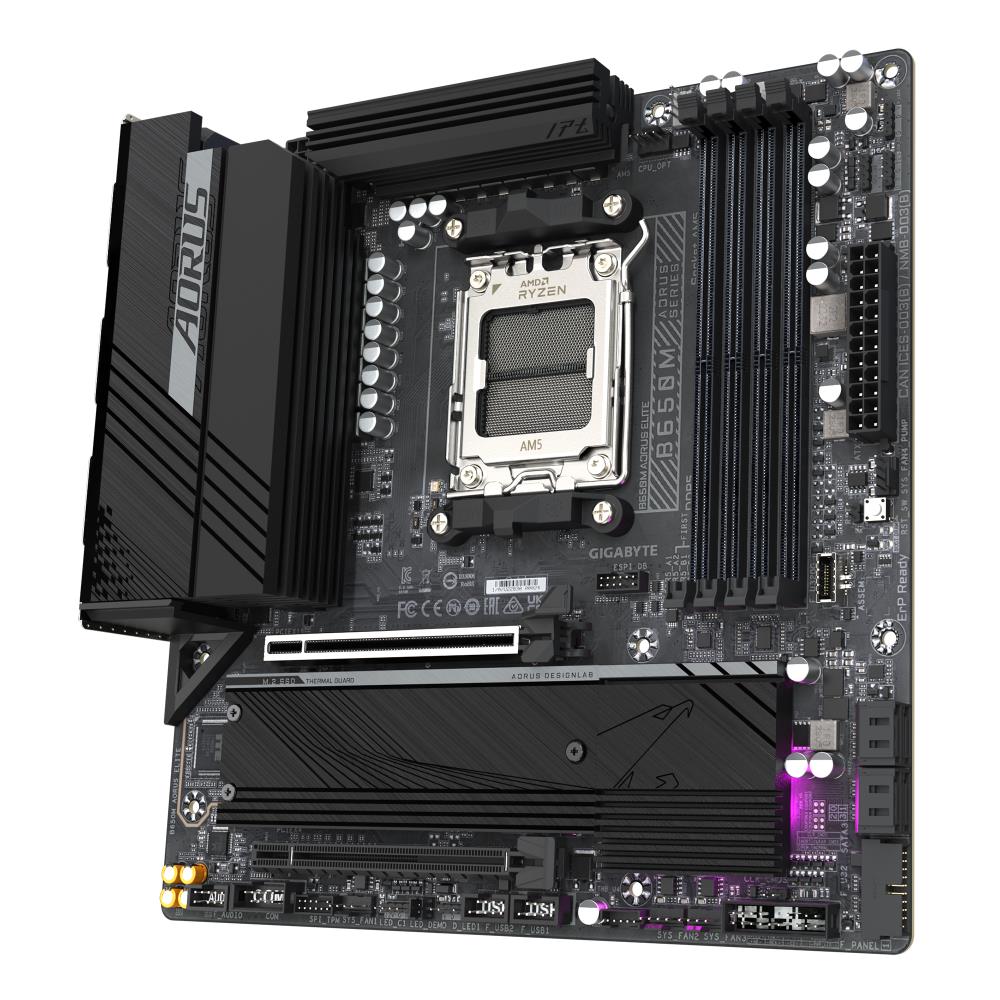

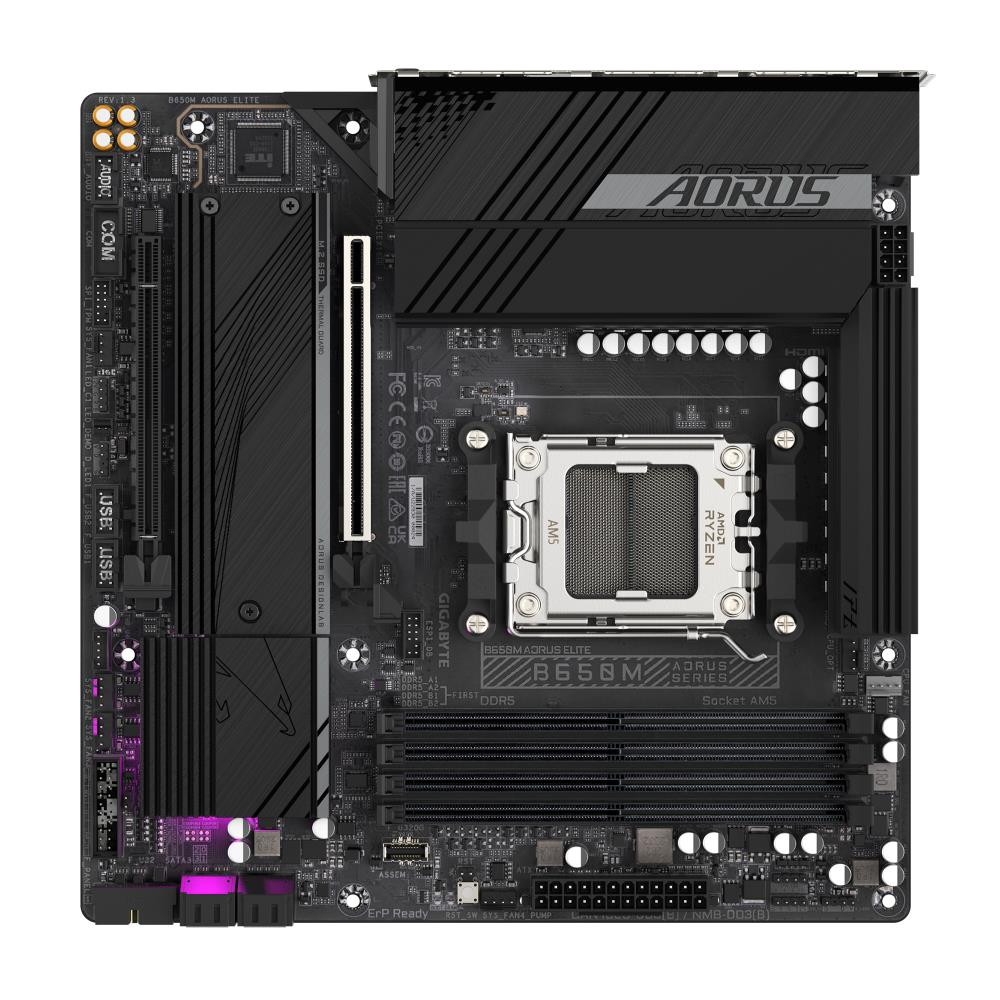

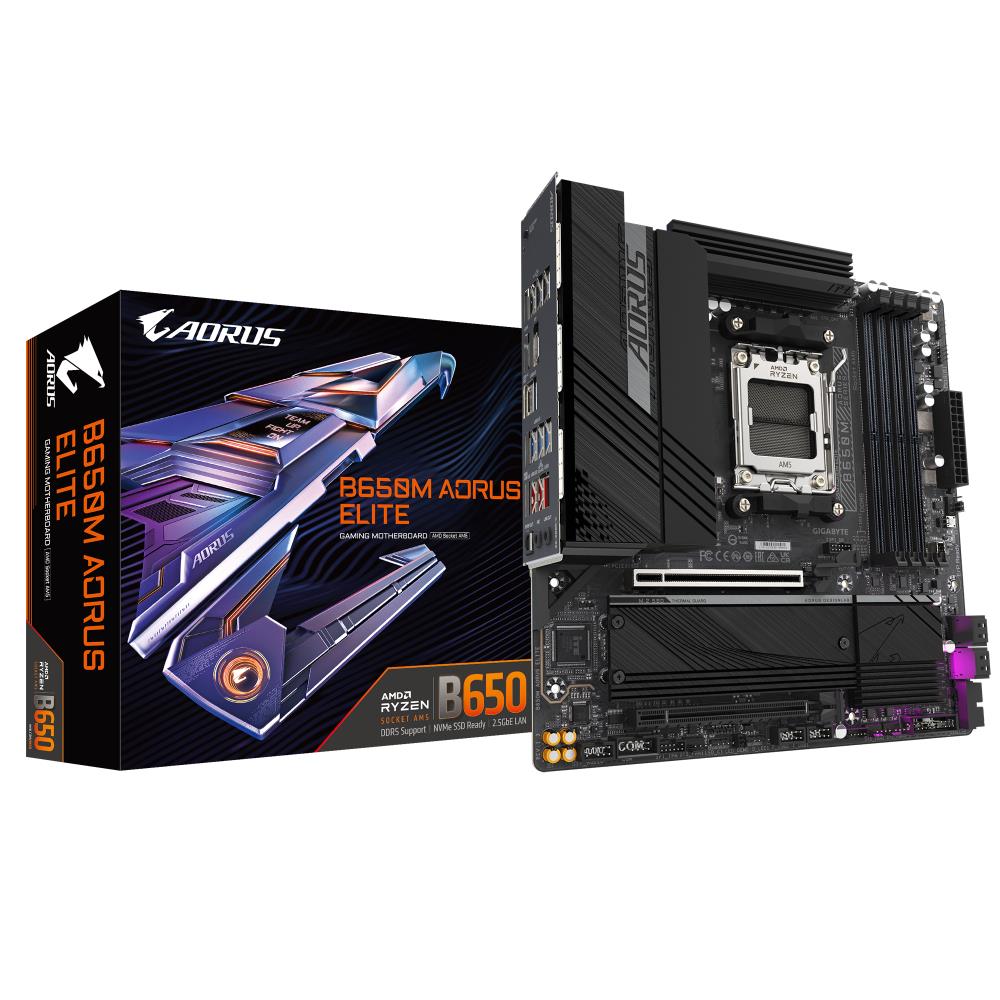

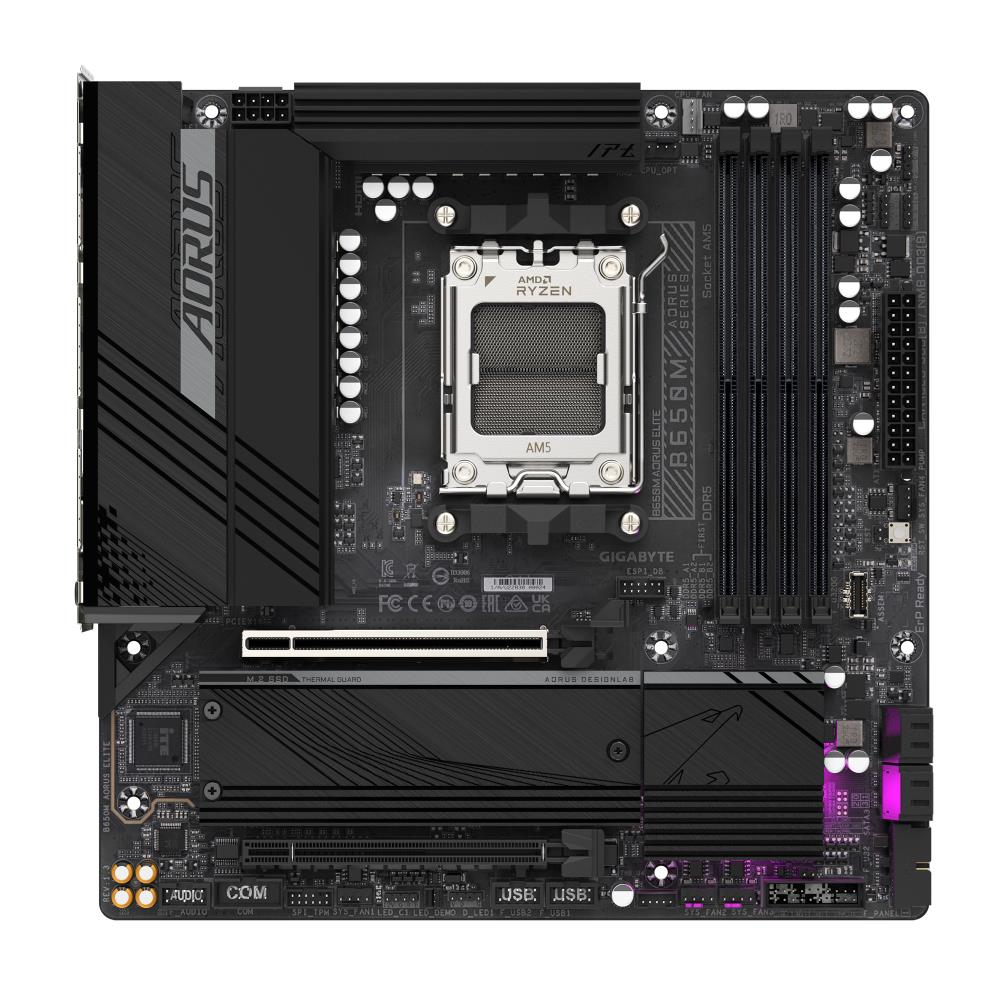

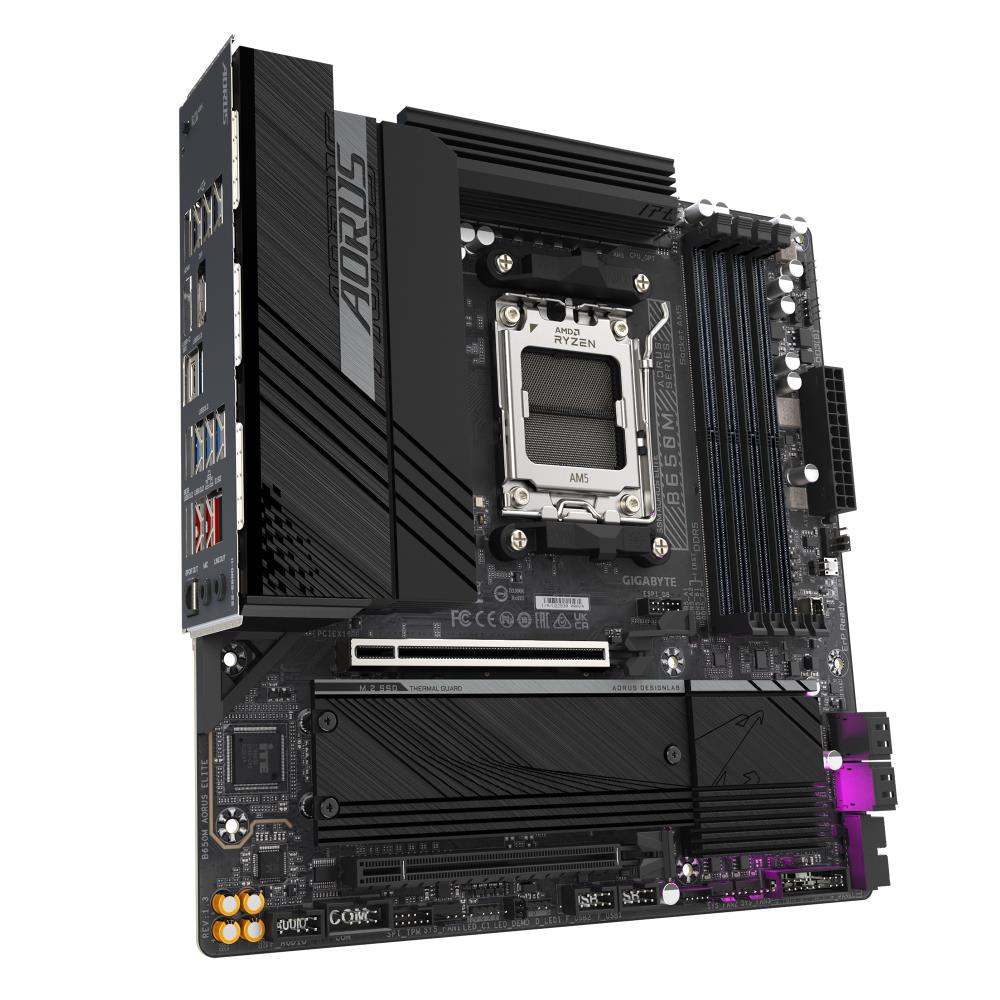

B650M AORUS ELITE (rev. 1.3)

• AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
• Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN

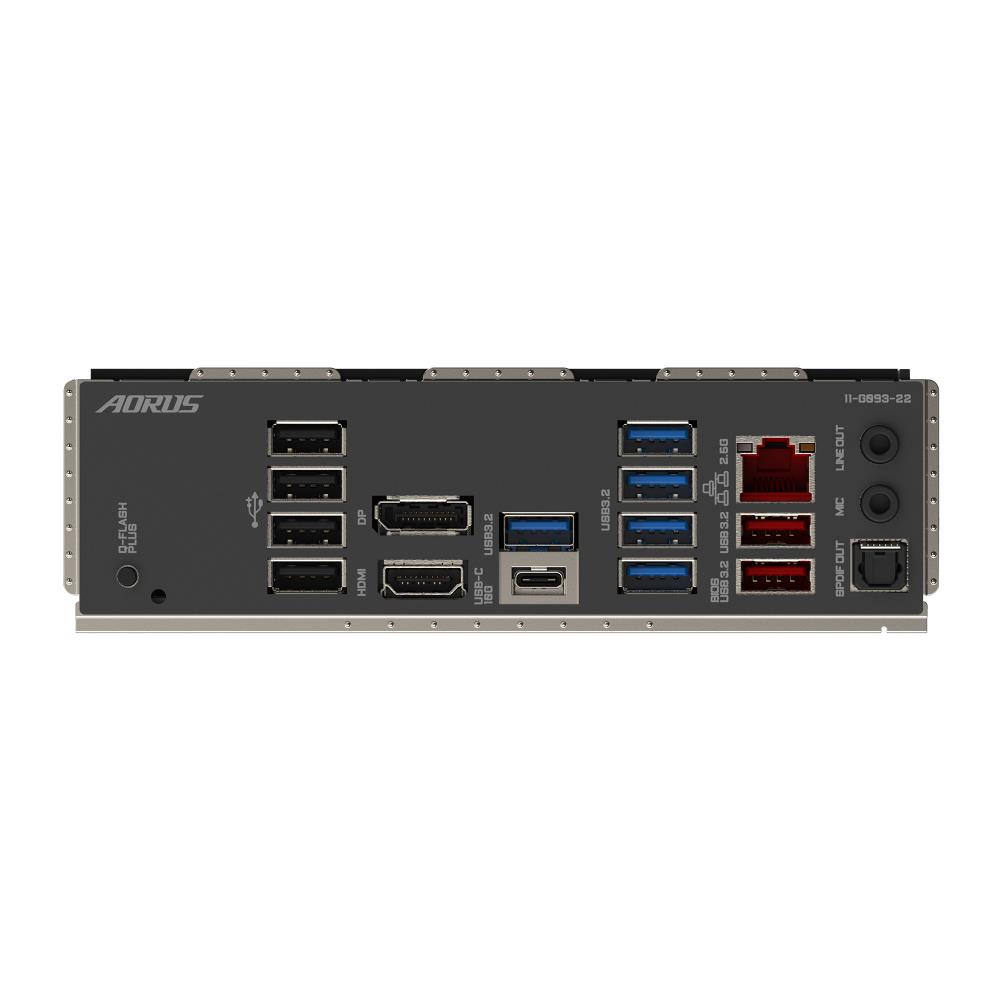

• Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Vendor Homepage: www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-rev-13
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.069
Unit Box Length: 0.274
Unit Box Width: 0.267
PCI-Express 4.0 4x : 1
PCI-Express 4.0 16x: 1
M.2: 2
HDMI: 1
DisplayPort: 1
USB 2.0: 4
USB 3.2: 7
USB-C: 1
Optical S/PDIF: 1
RJ45: 1
Audio port: 3
SATA: Yes
USB-C: Yes
Model: B650M AORUS ELITE 1.3
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Units per Shipping Box: 8
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 2
