Description:

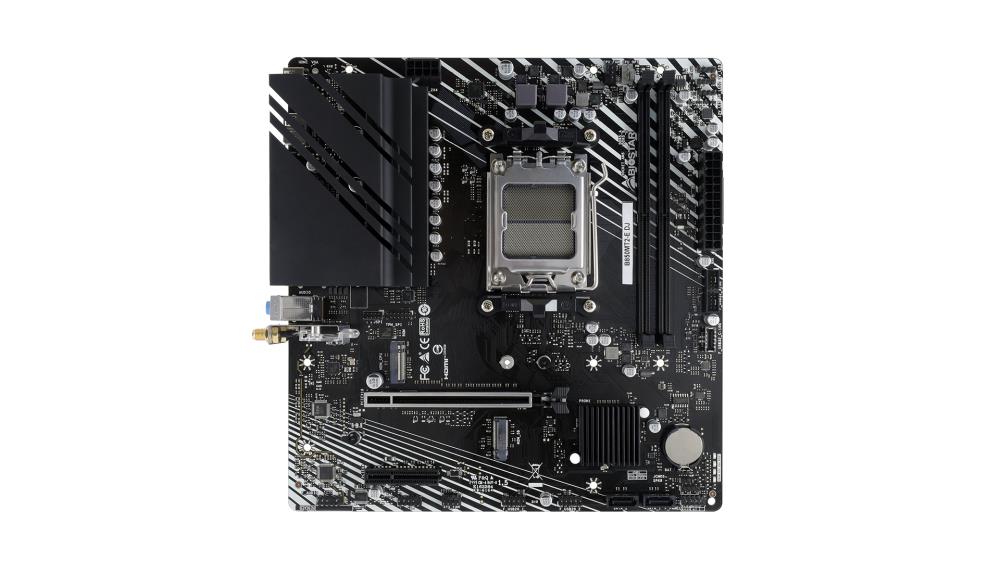

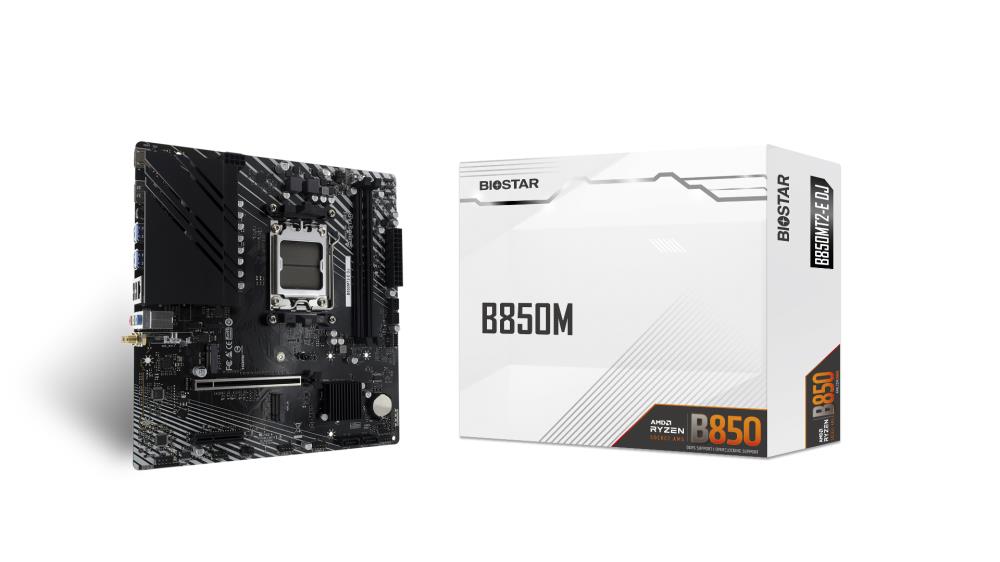

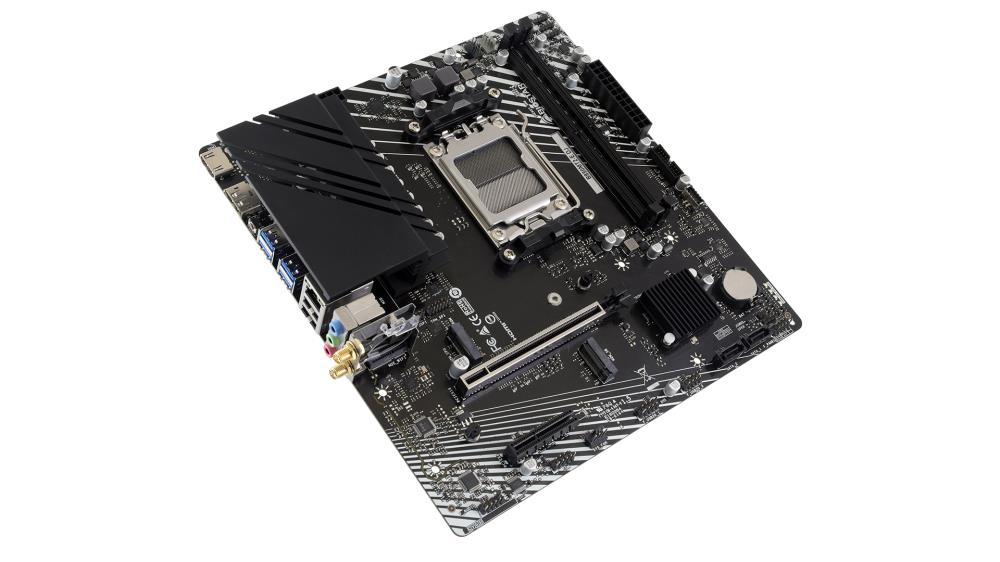

B850MT2-E DJ
Ver. 6.1
Socket : AM5
- Supports AMD Ryzen™ 9000 / 8000 / 7000 series Processors
- AMD B850 single chip architecture
- Supports 2-DIMM DDR5 up to 128 GB Memory
- Supports PCIe 4.0 M.2

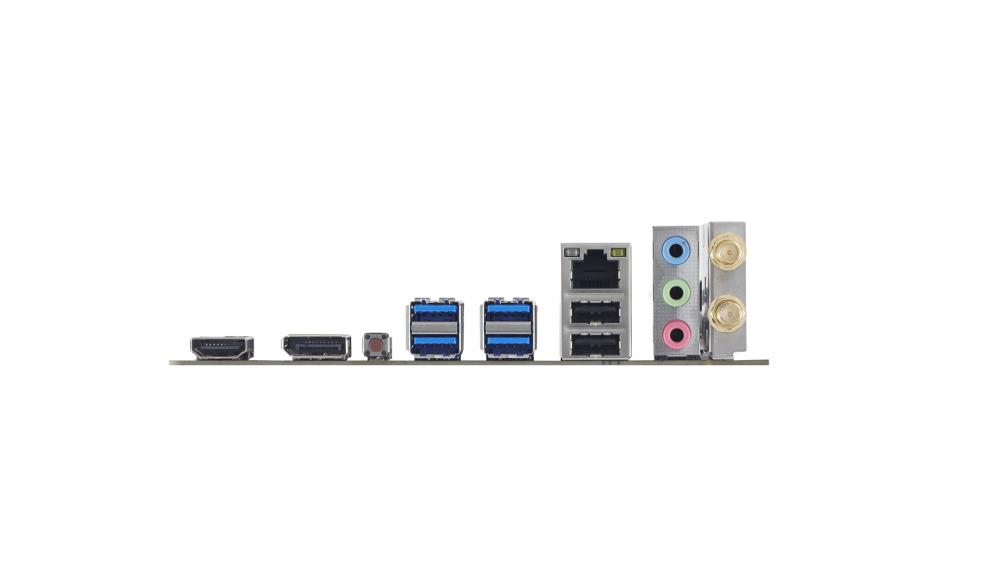

- Supports HDMI & Display Port
- Supports 2.5 GbE LAN
- Supports USB 3.2 Gen2 Type C
- Supports WiFi 7 & 6E module (No WiFi card included)
Vendor Homepage: www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1177
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.065
Unit Box Length: 0.28
Unit Box Width: 0.26
PCI-Express 4.0 4x : 1
PCI-Express 4.0 16x: 1
M.2: 2
HDMI: 1
DisplayPort: 1
USB 2.0: 6
USB 3.2: 6
USB-C: 1
RJ45: 1
Audio port: 3
SATA: Yes
USB-C: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Model: B850MT2-E DJ
Chipset: AMD B850
Socket: SAM5
Form Factor: Micro-ATX
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
TPM: Header
Included Accessories: 2 x SATA Cable
1 x I/O Shield
1 x WiFi antenna accessories
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
