Description:

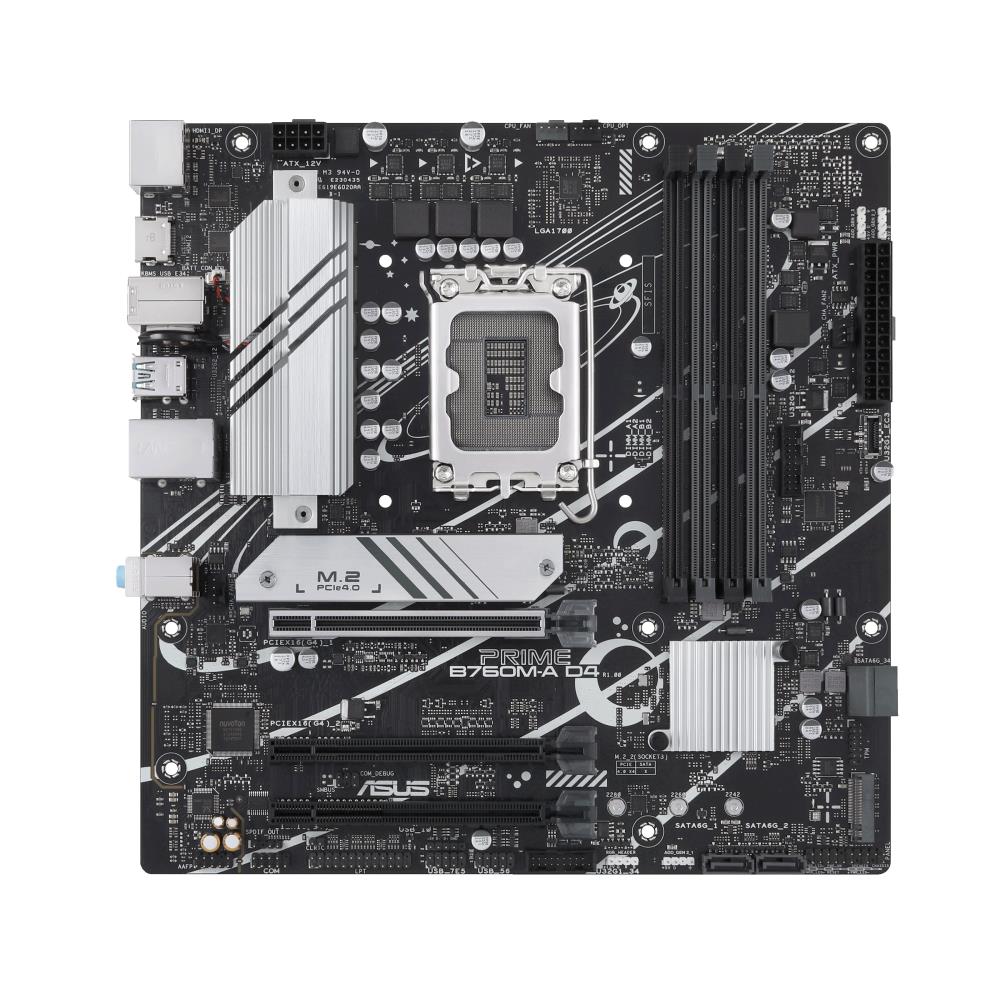

PRIME B760M-A D4-CSM
Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Vendor Homepage: www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.05
Unit Box Length: 0.26
Unit Box Width: 0.27
PCI-Express 4.0 16x: 1
M.2: 2
HDMI: 1
DisplayPort: 1
USB 2.0: 4
USB 3.2: 2
PS/2: 1
RJ45: 1
Audio port: 3
SATA: Yes
Model: PRIME B760M-A D4-CSM
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Included Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
