Description:
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
8 USB 3.2 Gen1 (6 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
Supports BIOS Flashback
Vendor Homepage: www.asrock.com/MB/Intel/B860%20Pro-A/index.asp
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.075
Unit Box Length: 0.355
Unit Box Width: 0.28

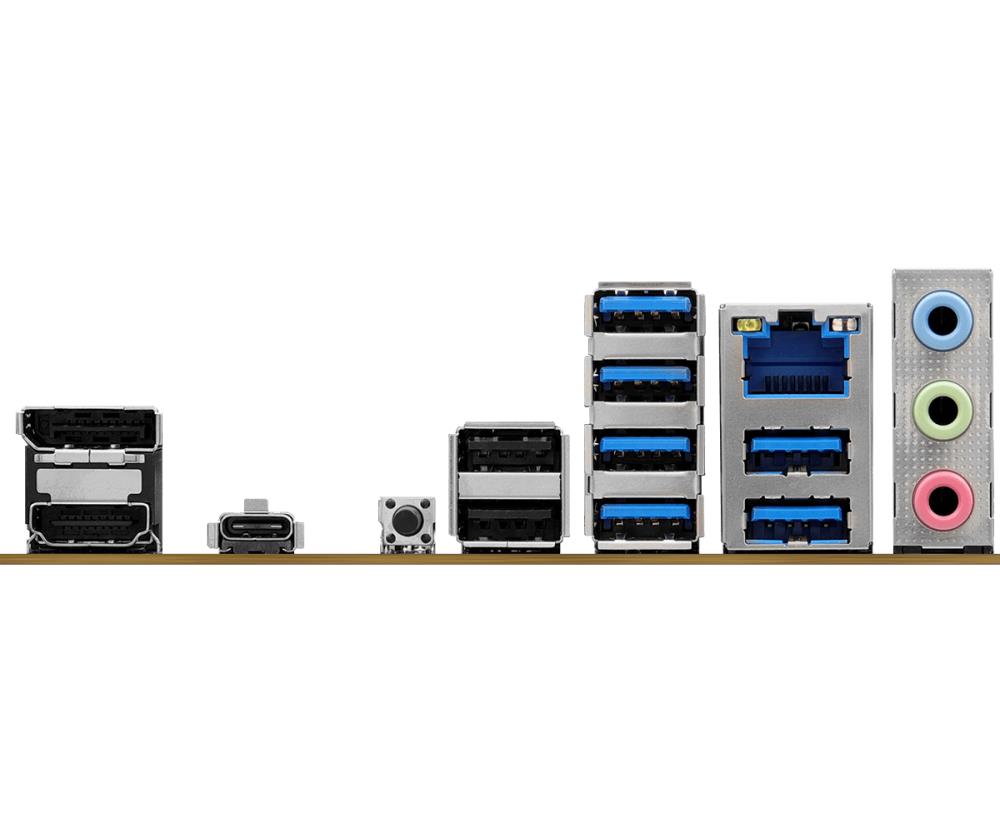

HDMI: 1
DisplayPort: 1
Audio-In: 1
Audio-Out: 1
Microphone: 1
USB 2.0: 2
USB 3.2: 6
USB-C: 1
RJ45: 1
SATA: Yes
USB-C: Yes
USB 2.0: Yes
USB 3.2: Yes
SATA 3.0: Yes

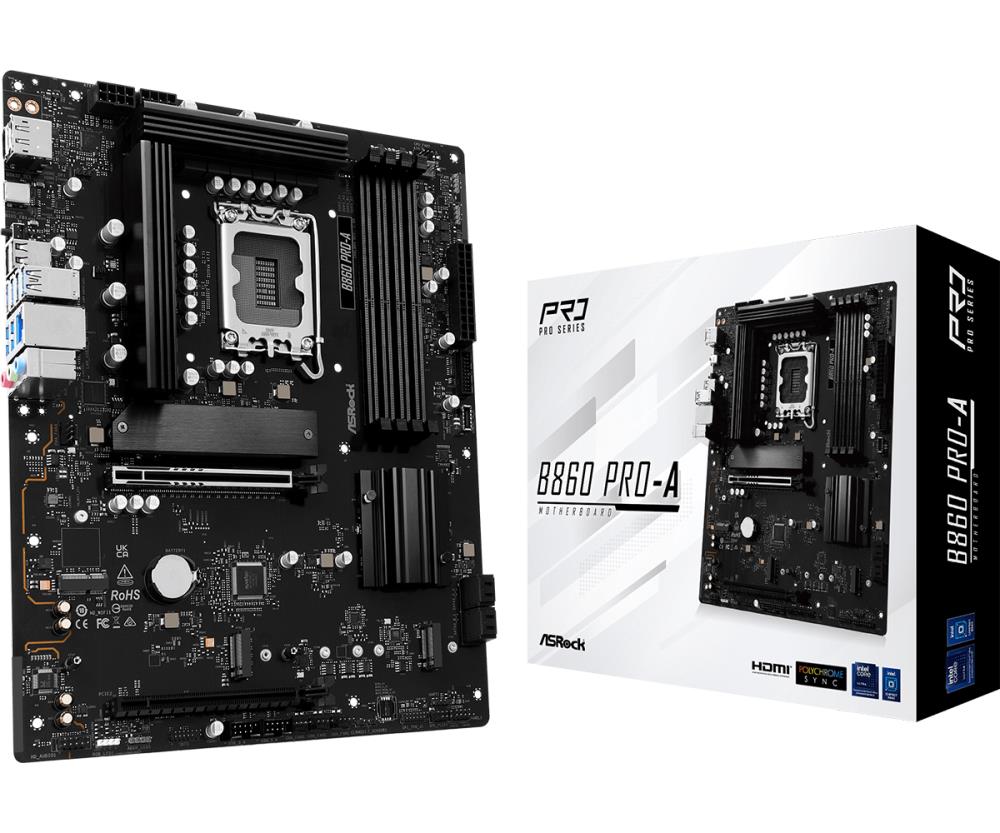

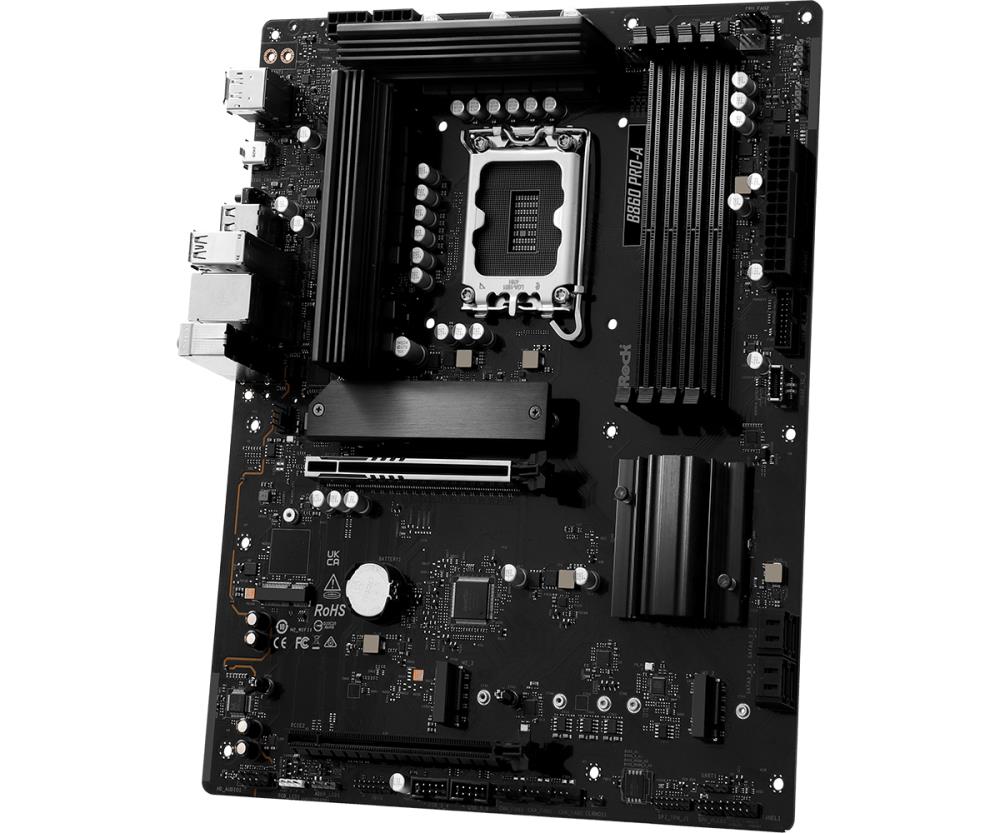

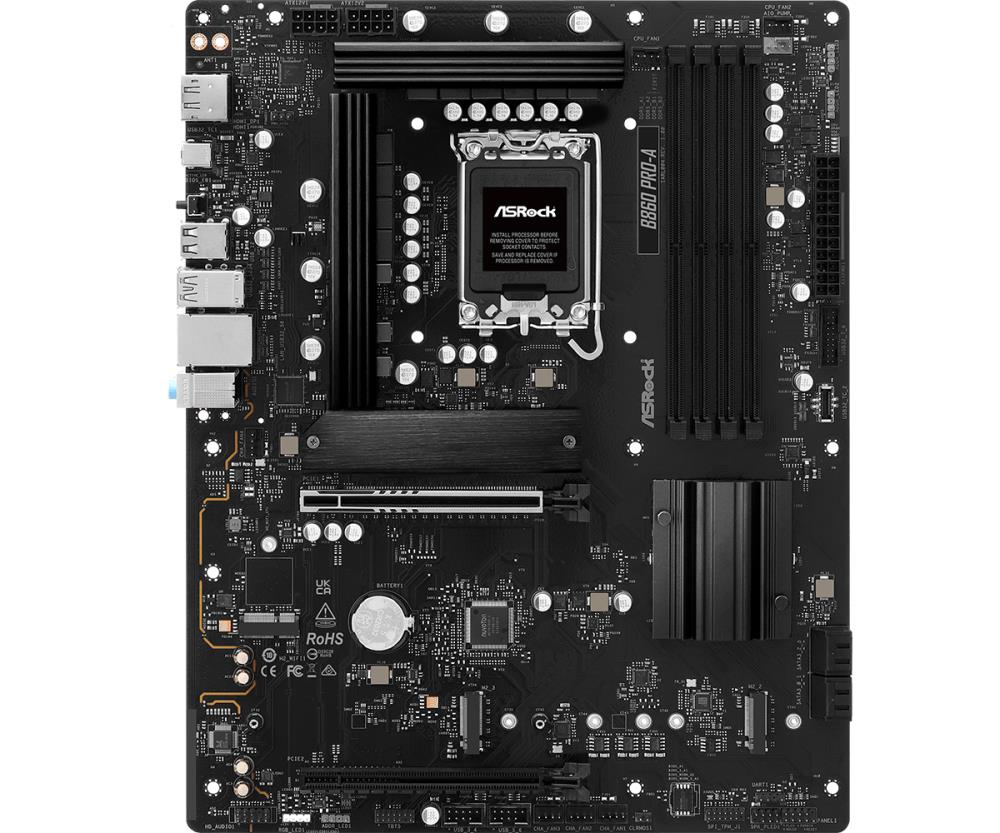

Model: B860 Pro-A
Chipset: Intel B860 Express
Socket: LGA1851
Form Factor: ATX
Memory type: DDR5
Frequency speed: 8666
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 5
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 2
