Description:

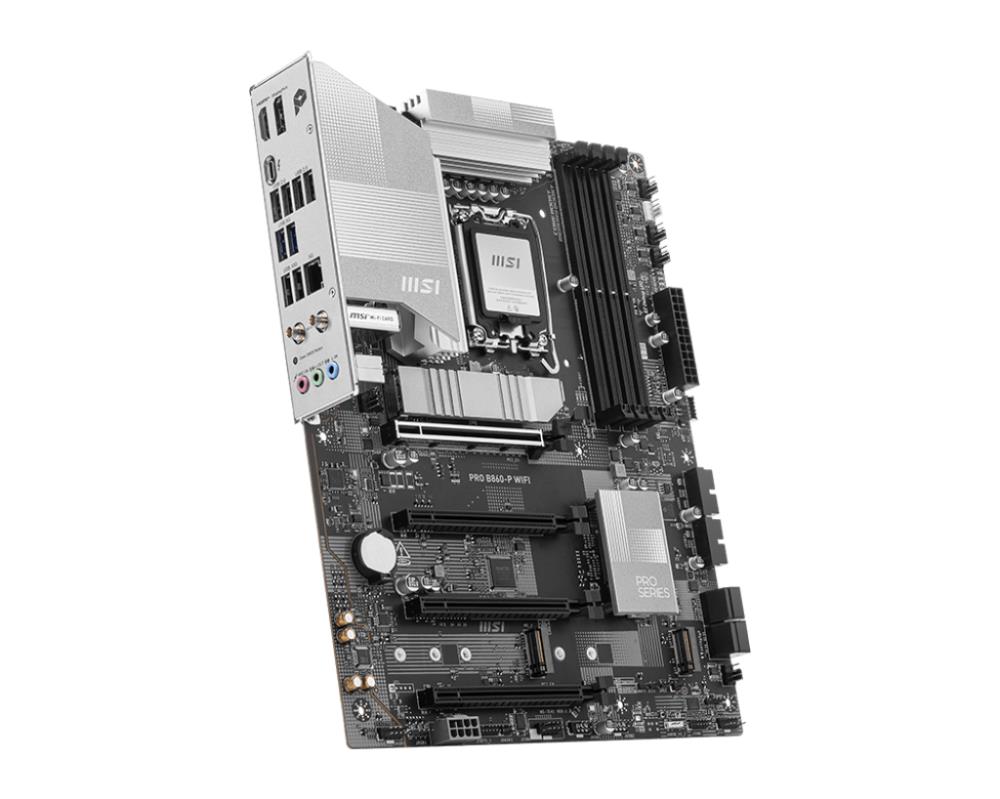

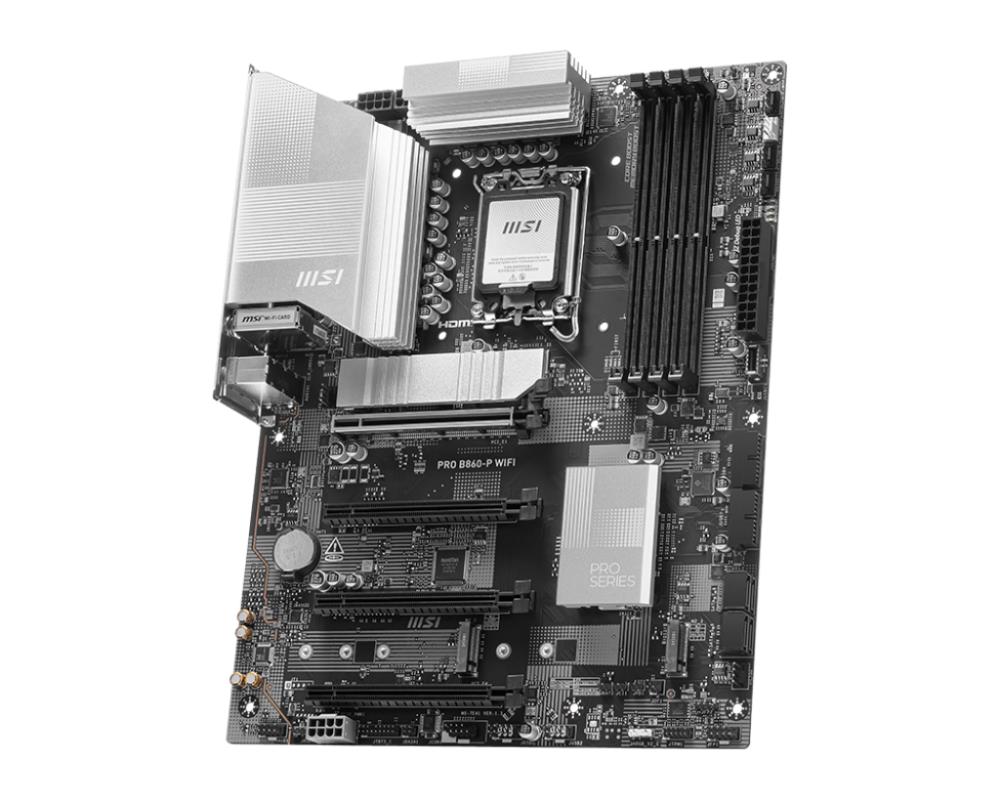

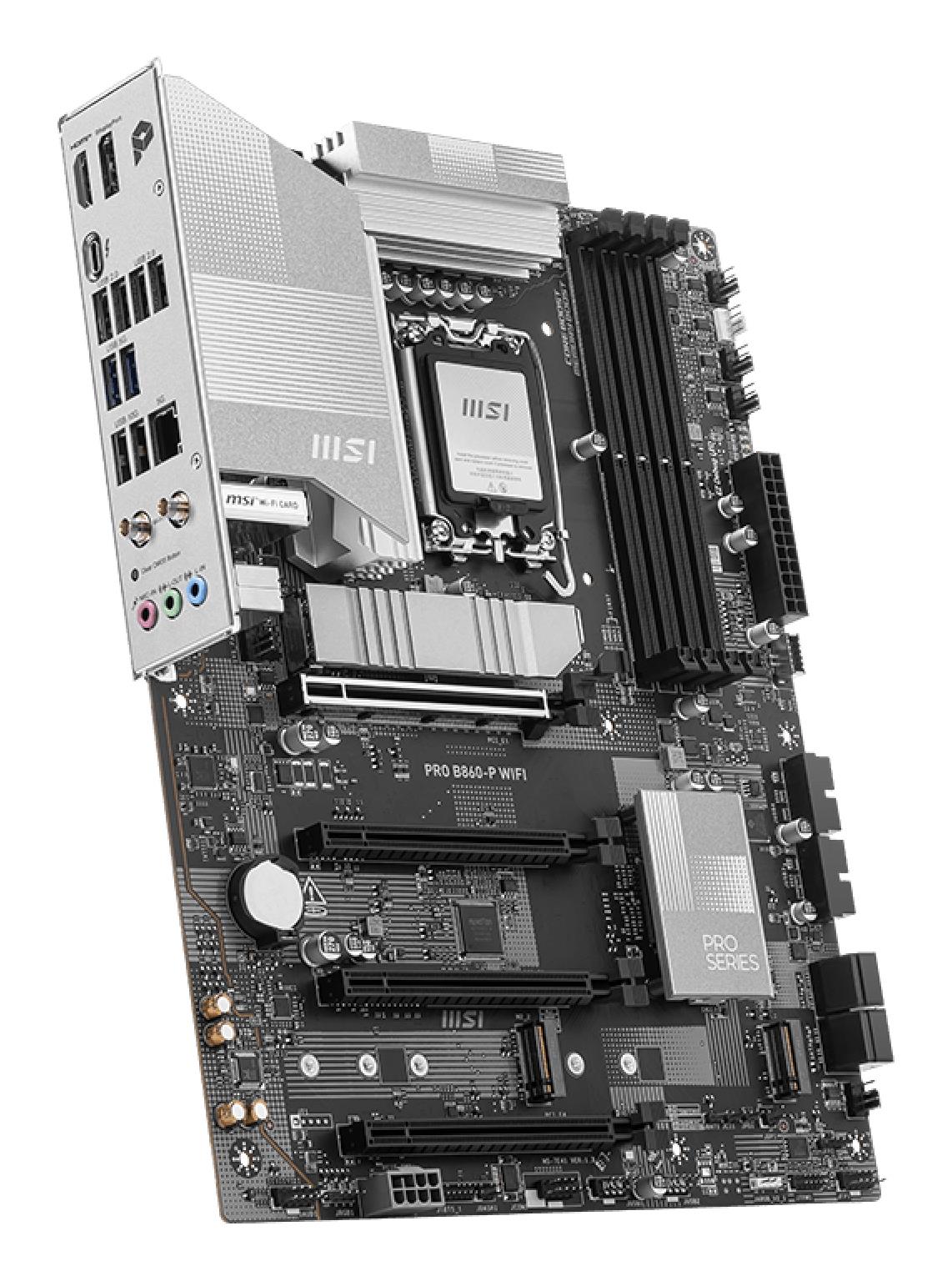

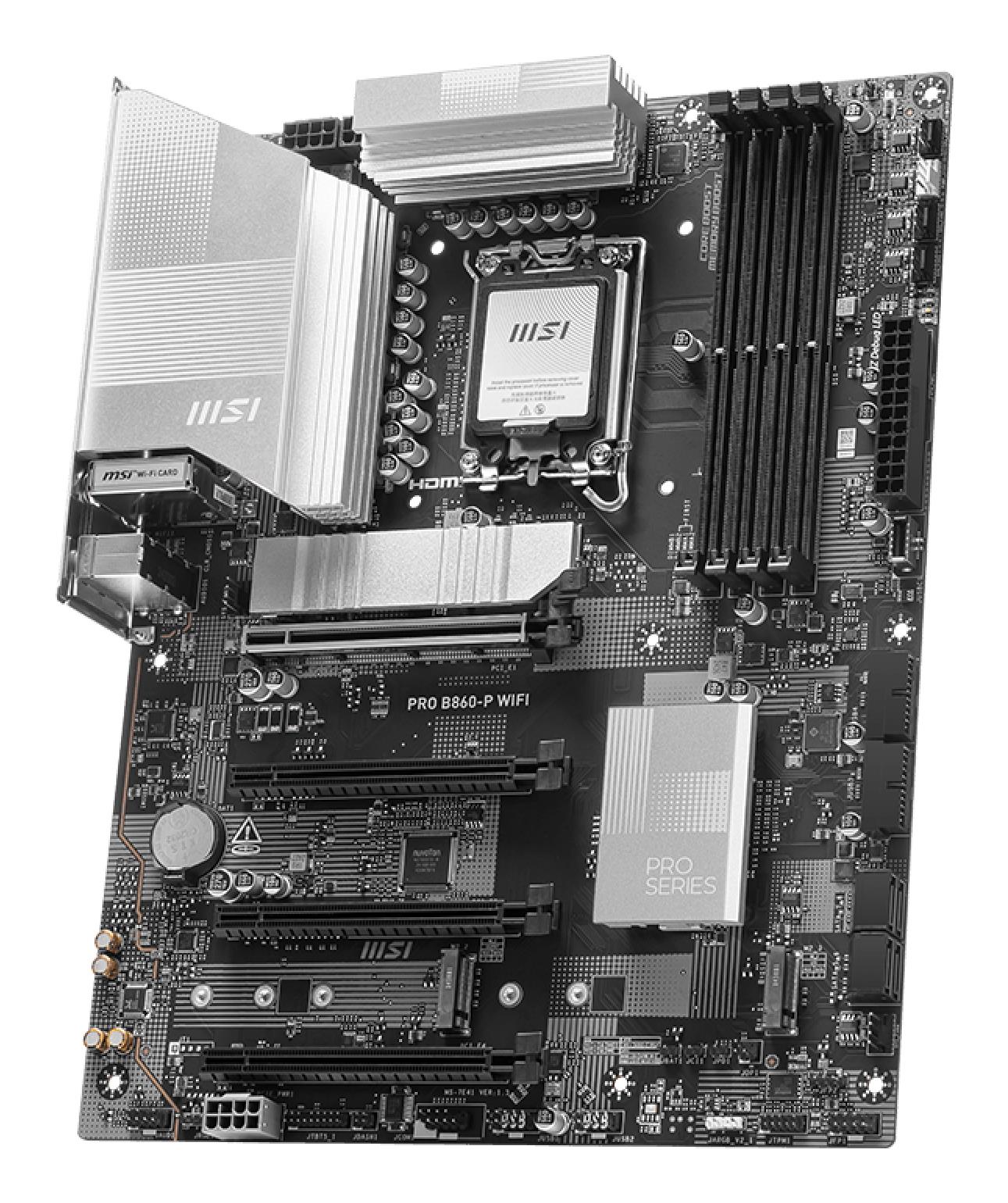

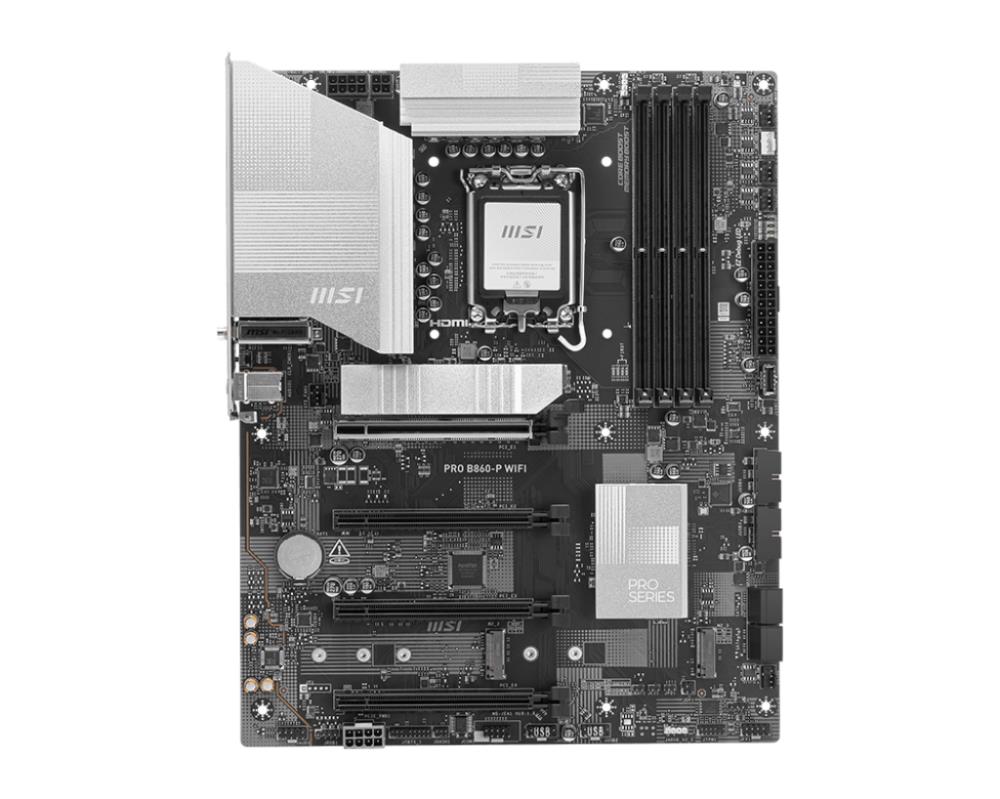

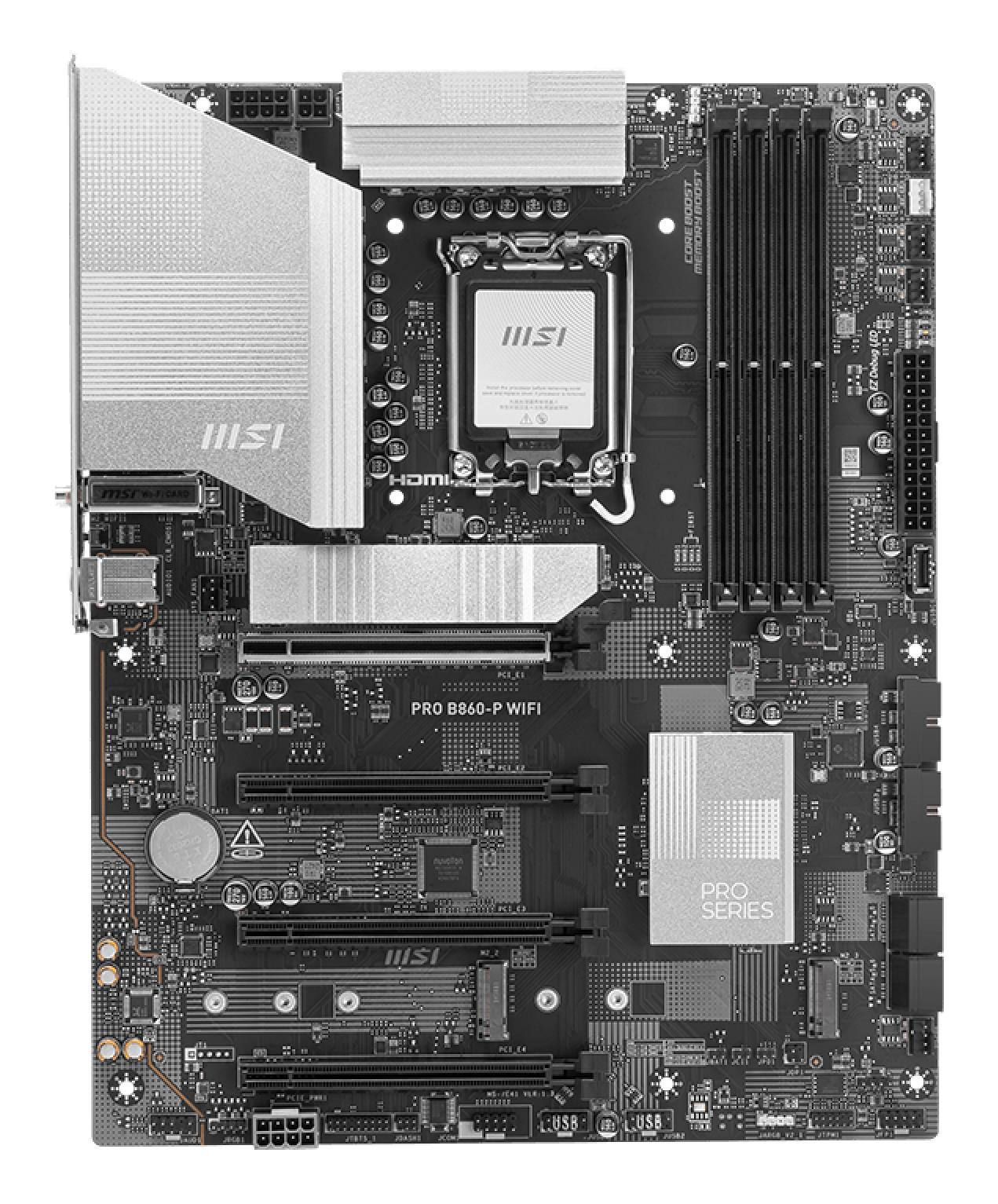

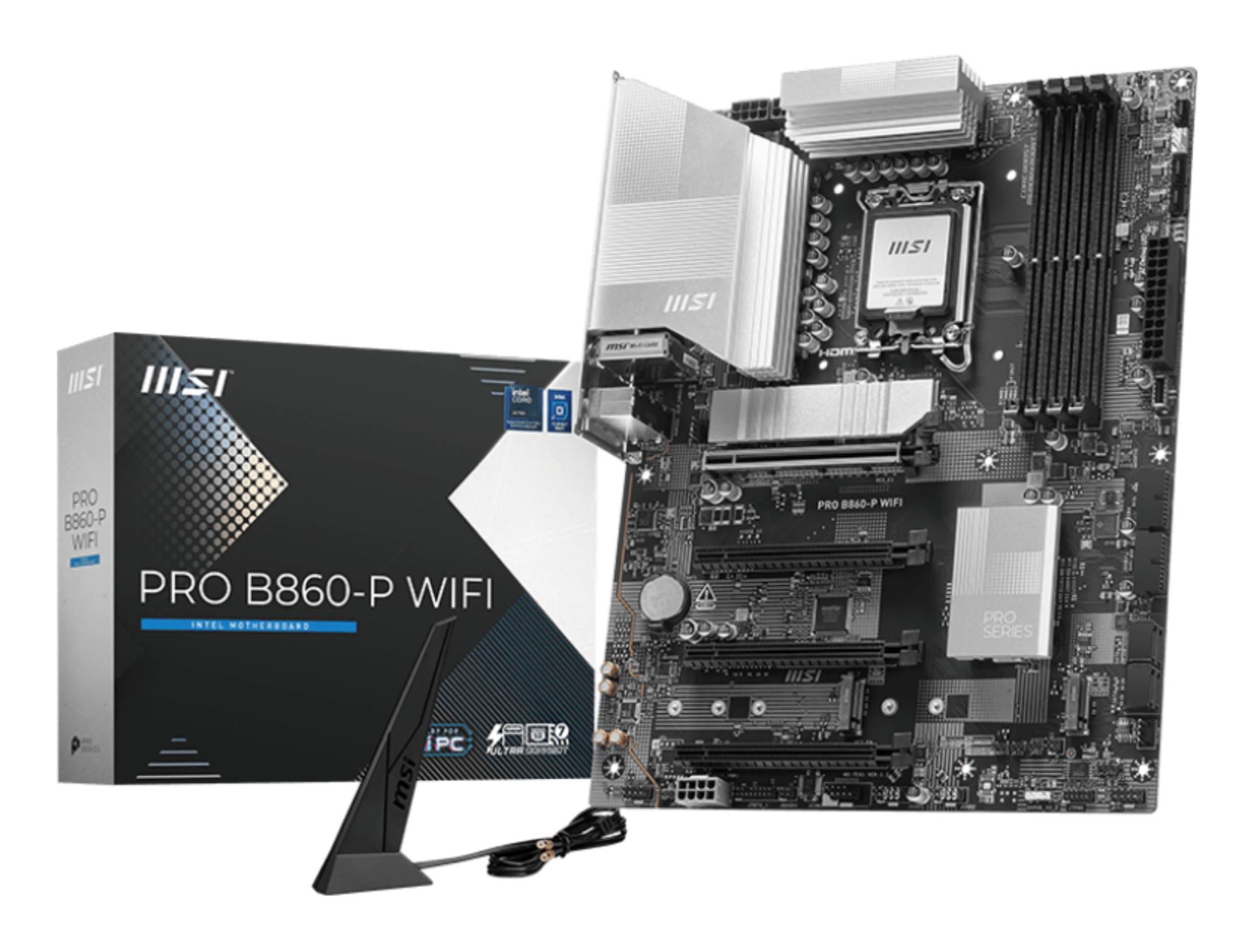

PRO B860-P WIFI
PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

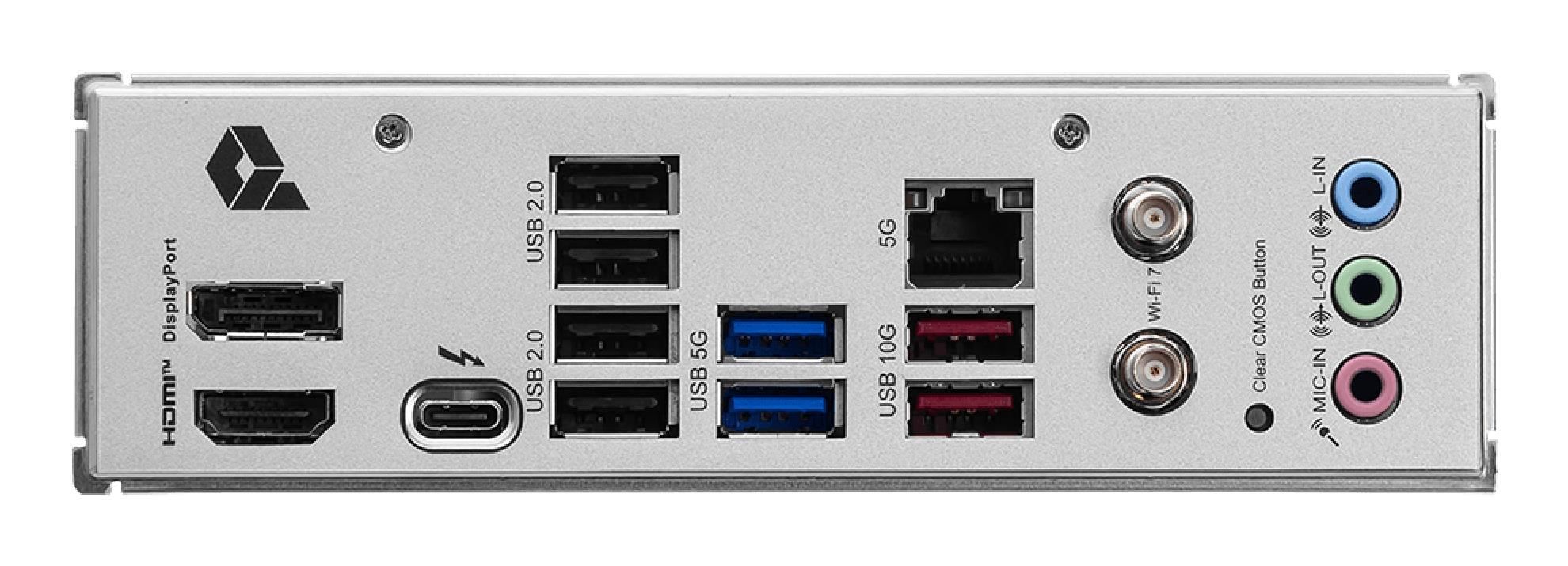

- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/PRO-B860-P-WIFI
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.34
Unit Box Width: 0.27
PCI-Express 4.0 1x: 2
PCI-Express 4.0 4x : 1
PCI-Express 5.0 16x: 1
M.2: 3
HDMI: 1
DisplayPort: 1
USB 2.0: 8
USB 3.2: 2
USB-C: 1
RJ45: 1
Audio port: 3
Thunderbolt: 1
SATA: Yes
USB-C: Yes
USB 2.0: Yes
USB 3.2: Yes
Thunderbolt: Yes
Bluetooth: Yes
WiFi: Yes
Model: PRO B860-P WIFI
Chipset: Intel B860 Express
Socket: LGA1851
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5600/6400/7200/8800
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 2
