Description:

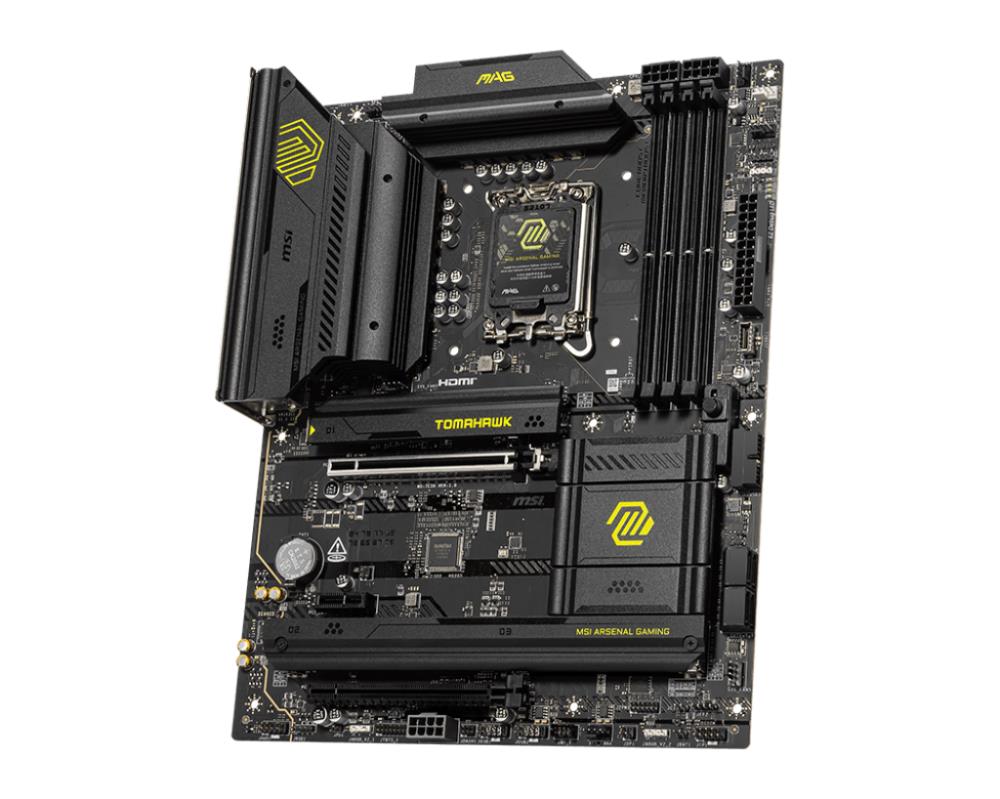

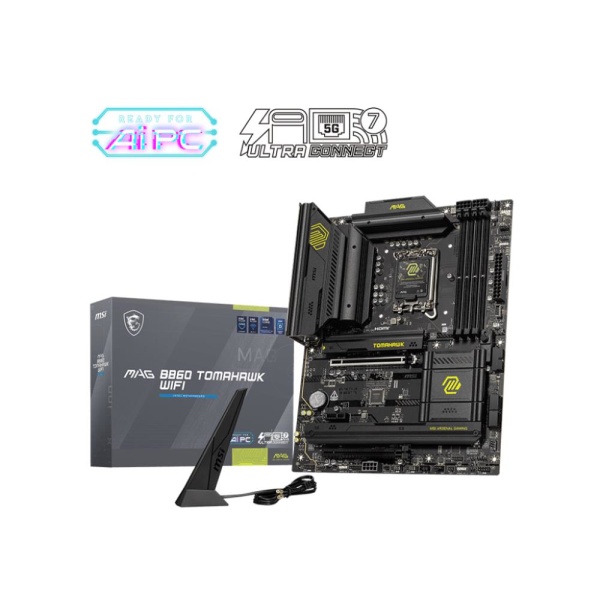

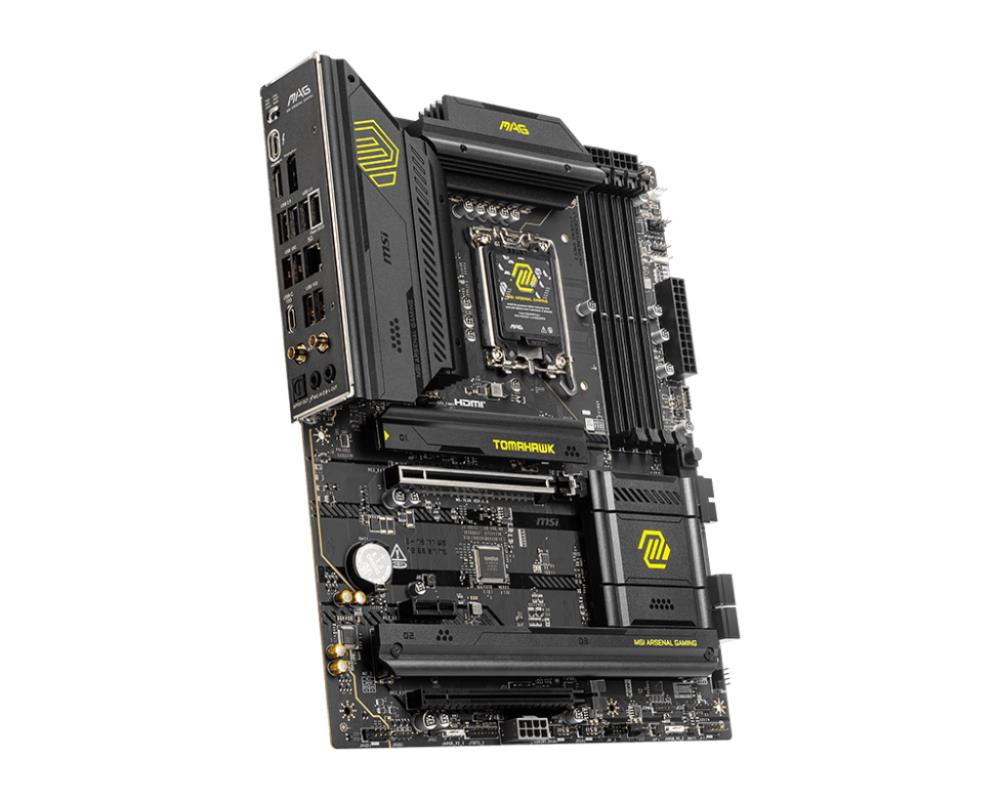

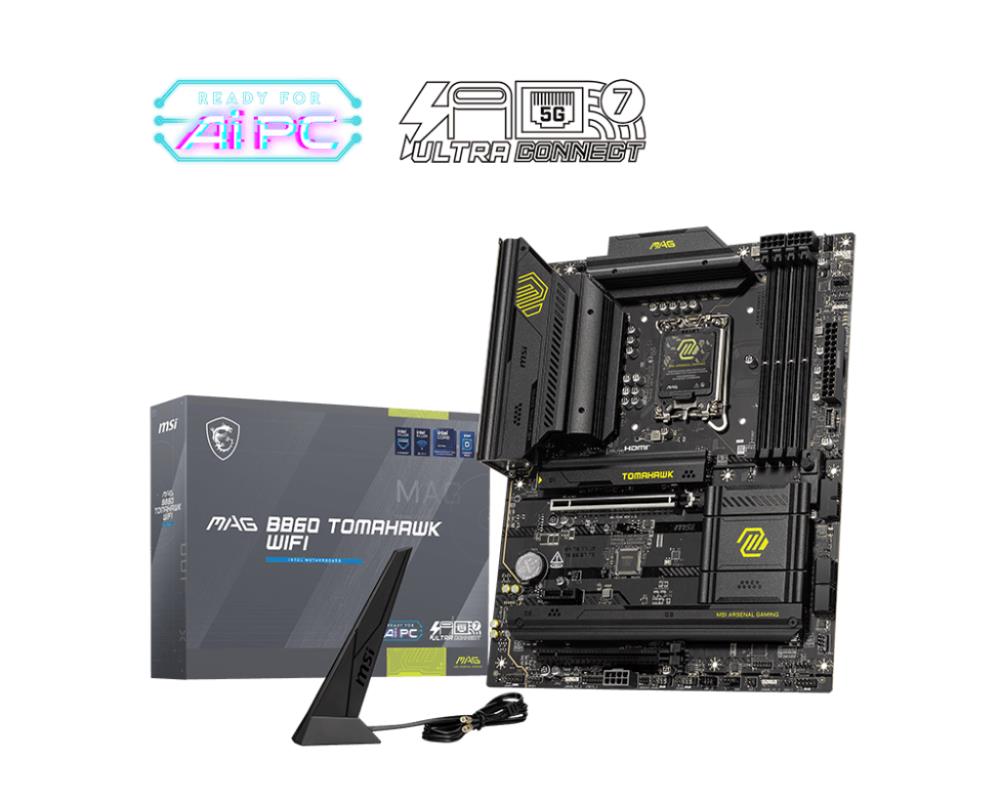

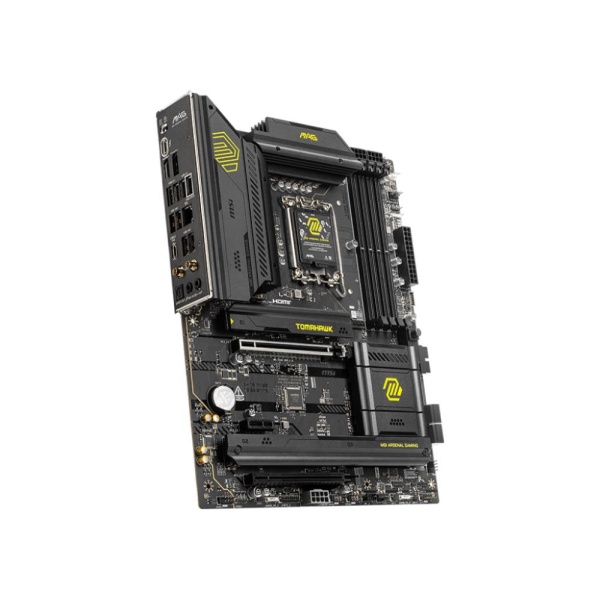

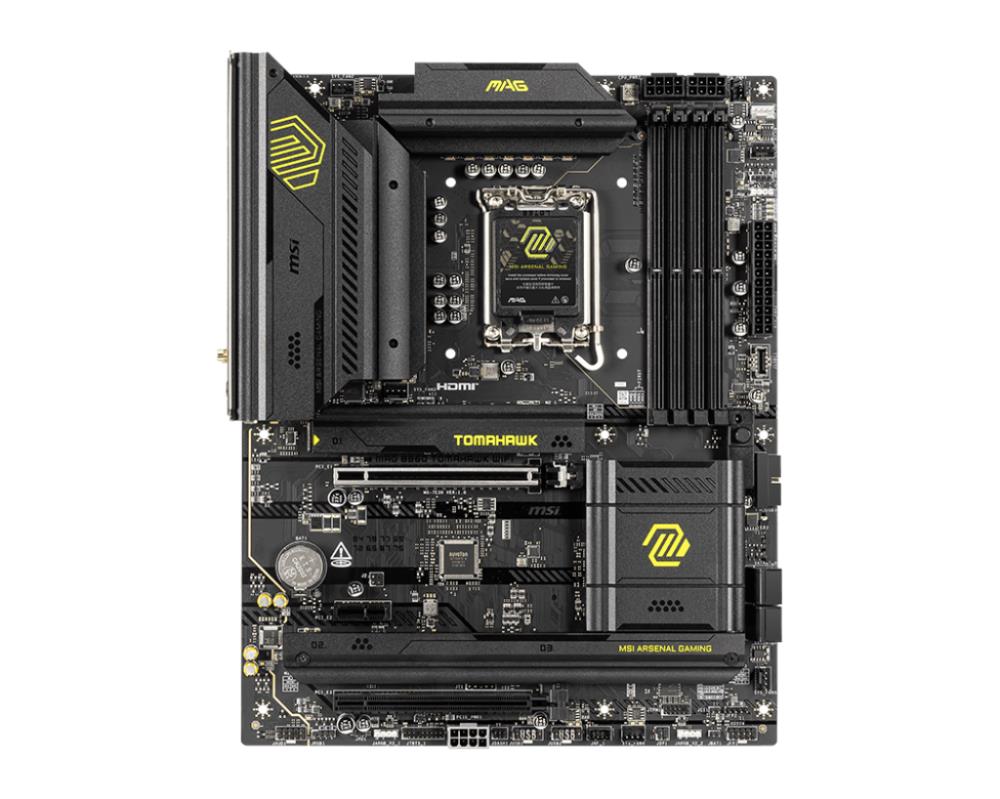

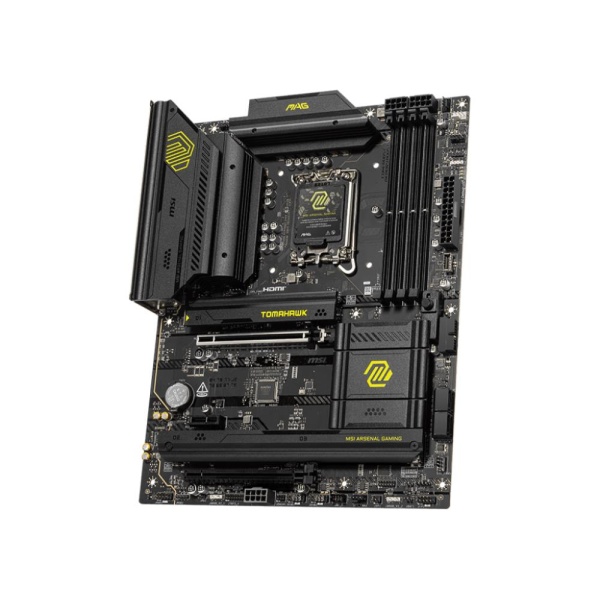

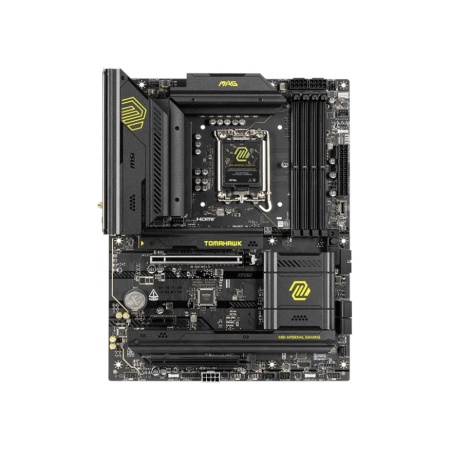

MAG B860 TOMAHAWK WIFI
- MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.35
Unit Box Width: 0.27
PCI-Express 4.0 1x: 1
PCI-Express 4.0 4x : 1
PCI-Express 5.0 16x: 1
M.2: 3

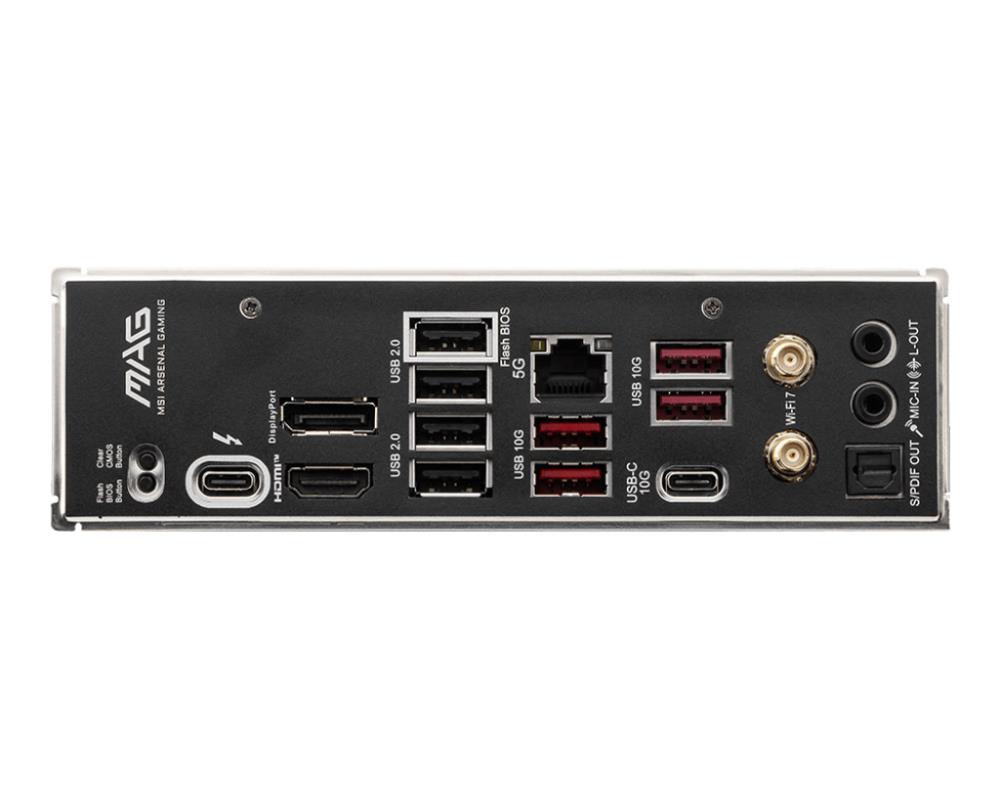

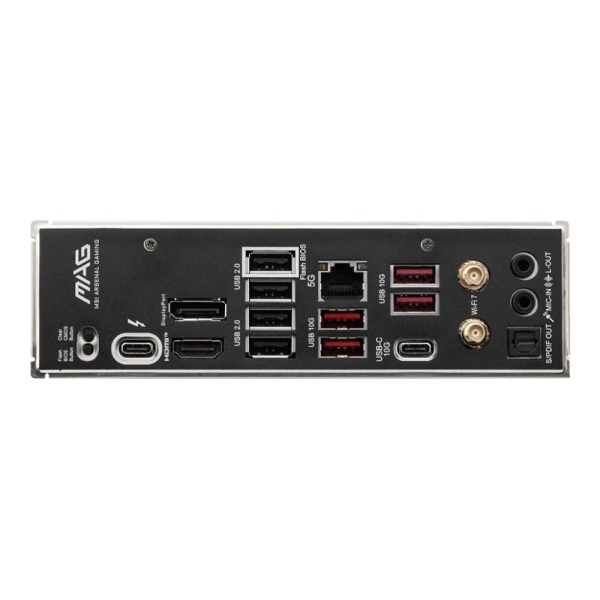

HDMI: 1
DisplayPort: 1
USB 2.0: 8
USB 3.2: 6
USB-C: 3
Optical S/PDIF: 1
RJ45: 1
Audio port: 3
Thunderbolt: 1
SATA: Yes
USB-C: Yes
USB 2.0: Yes
USB 3.2: Yes
Thunderbolt: Yes
Bluetooth: Yes
WiFi: Yes
Model: MAG B860 TOMAHAWK WIFI
Chipset: Intel B860 Express
Socket: LGA1851
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5600/6400/7200/9200
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: 5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 2
