Description: KF560C36BBE2-16
16GB 2G x 64-Bit
DDR5-6000 CL36 288-Pin DIMM

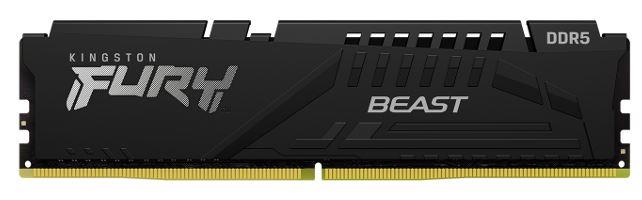

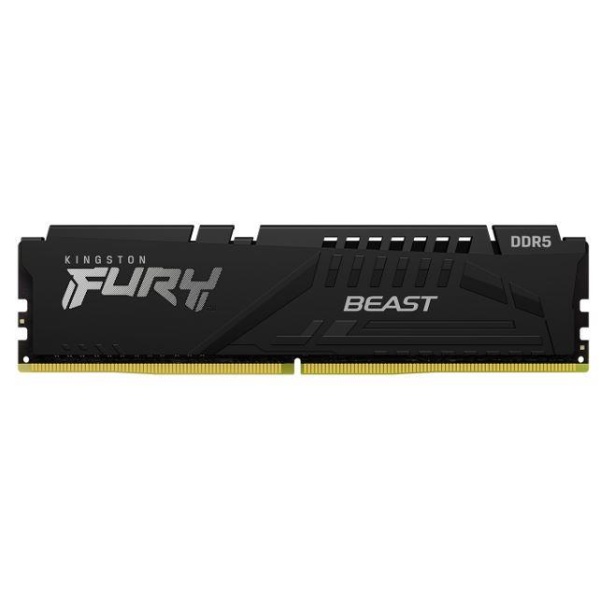

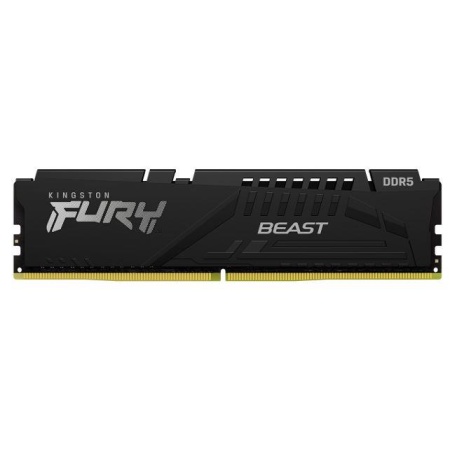

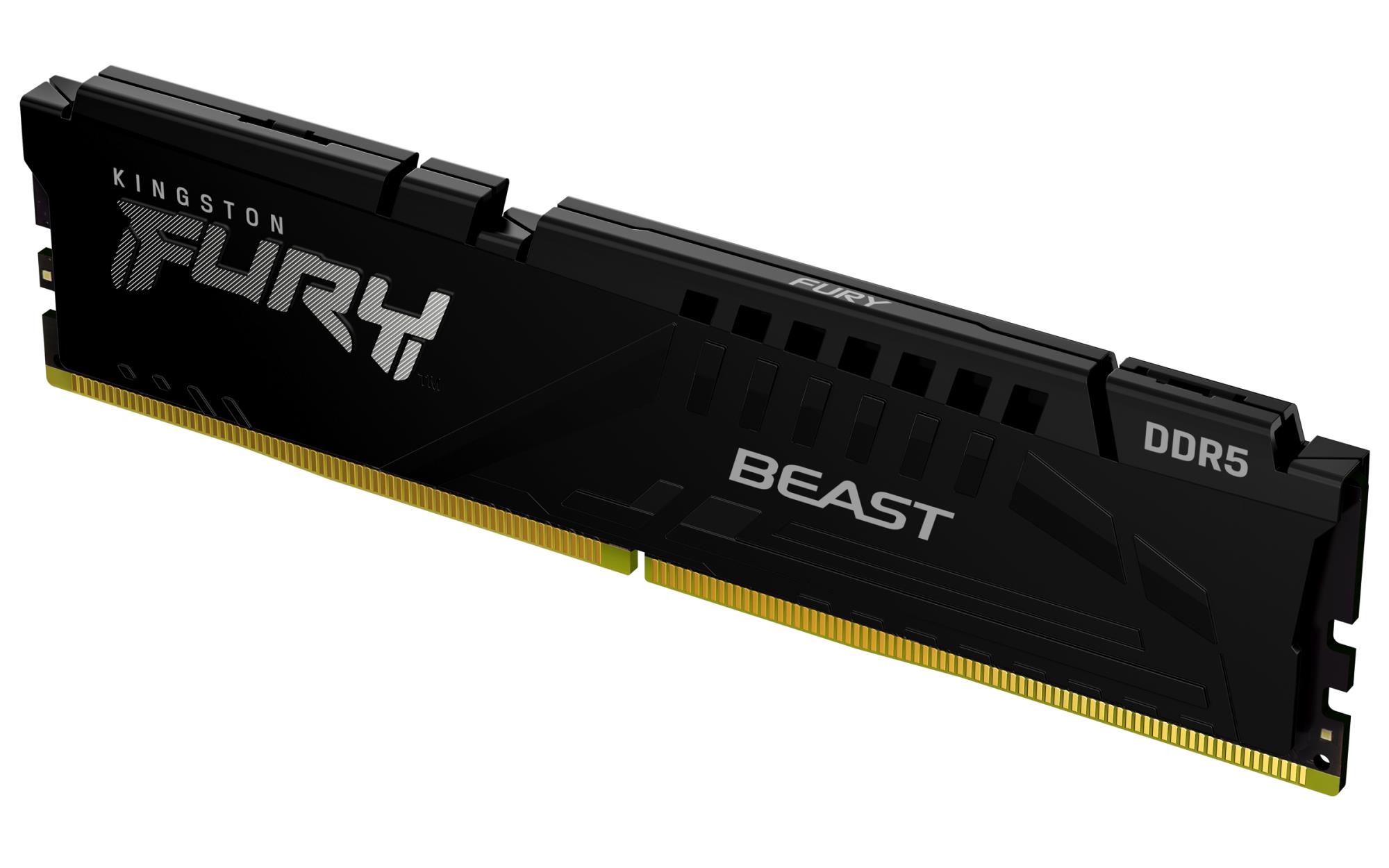

Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Vendor Homepage: www.kingston.com/datasheets/KF560C36BBE2-16.pdf
Model: KF560C36BBE2-16
Memory series: Beast
Memory type: DDR5
Total capacity: 16GB
Memory module capacity: 16GB
Number of modules: 1
Frequency speed: 6000
Module form factor: 288-pin DIMM
Memory features: UDIMM
CL: 36
Memory timings: 40-39-39
Nominal voltage: 1.1
Colour: Black
Units per Shipping Box: 25
Shipping Box Depth: 31
Shipping Box Height: 6.5
Shipping Box Weight: 1.5
Shipping Box Width: 19.5
Unit Calculated Volume: 0.0001572
Product Net Weight: 0.04
Unit Calculated Weight: 0.06
CnCode: 84733020
Unit Box Width: 0.06
Unit Box Length: 0.17
Unit Box Height: 0.015
Full Description Line: Beast|DDR5|Module capacity 16GB|Quantity 1|6000 MHz|288-pin DIMM|CL 36|Memory timings 40-39-39|Nominal voltage 1.1 V|Colour Black
Category Code: MEM
