Description:
Compact productivity magic

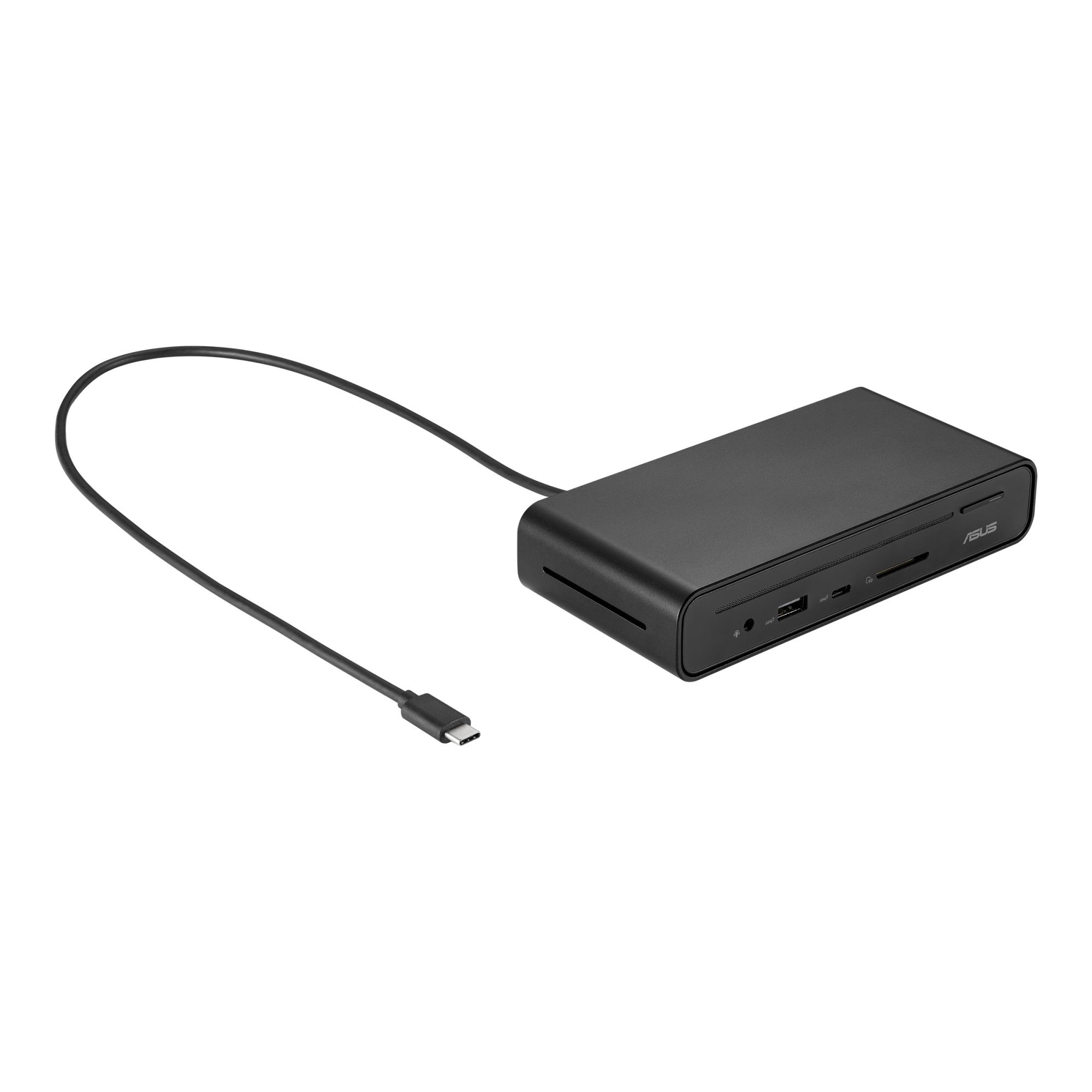

ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors1 — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye.
Triple-display Support
Ready for triple 4K displays
Connect up to three displays via HDMI®, DisplayPort™ and USB-C® for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock even supports up to three 4K2 displays for exceptional visuals.
Connectivity
Connect up to 8 devices
ASUS Triple Display USB-C Dock has a multitude of I/O ports: three external screens can be connected via HDMI®, USB-C® and DisplayPort™, two USB 3.2 Gen 1 Type-A ports support a keyboard and mouse, and there’s a USB-C® port, a USB Type-A port, an RJ45 network port, an audio jack for earphones, and a SD card reader for data transfers. That’s a total of 12 functions3.
Fast Transfers
Connect at super speeds
Enjoy 10 Gbps4 data-transfer speeds via convenient USB-C® and USB-A ports — up to 4x faster than USB 3.0 — so large files and folders can be moved or copied in moments.
High-speed Charging
Charge fast, charge in tandem
ASUS Triple Display USB-C Dock supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C® port that delivers up to 15 watts.
Efficient Control
One-button wake-up and remote management
With ASUS Triple Display USB-C Dock, it takes just one tap to wake your laptop and all connected displays — because the dock’s power button precisely mimics that of your laptop. It also enables IT departments to remotely wake laptops that are in standby modes to apply updates and more, helping speed up routine admin and maintenance tasks5.
One-button wake up
Press the dock’s power button to wake up your laptop and multiple connected monitors during standby mode.
Remote IT management
Enable IT management to update software with Wake-on-LAN (WoL) and PXE.
Clean and Tidy
Reduce desk clutter
ASUS Triple Display USB-C Dock’s compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package — empowering you to get to work in moments.
ASUS Triple Display USB-C Dock DC300 support varies by the processor and graphics capabilities of the connected laptop. Please check specifications for full details.
Video output may vary by input signal. ASUS Triple Display USB-C Dock DC300 supports up to one 4K display for a laptop which supports DSC (Display Stream Compression). When the DSC (Display Stream Compression) standard of your device and monitor supports a compression ratio of 3:1, the dock supports a resolution of up to 4K@60Hz in dual display mode (USB-C® + HDMI™ 2.0 or USB-C® + DisplayPort 1.4) and supports up to 4K@30Hz in triple display mode.
ASUS Triple Display USB-C Dock DC300 is compatible with certain ASUS laptops as well as non-ASUS laptops. It works with laptops that support the industry-standard USB-C Alternate Mode or Thunderbolt protocols via the Type-C port.
Chart depicts expected transfer time for 4 GB of data. Real-world performance may vary.
ASUS Triple Display USB-C Dock DC300 supports additional features, such as MAC address passthrough, WOL, multiple display support and mirrored power button, on many ASUS laptops and displays. Some features may not be available on certain ASUS laptops, ASUS Chromebook, or non-ASUS laptops. Please find tech spec for compatible device.
Summary: ASUS Triple Display USB-C Dock DC300. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, USB, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10
Vendor Homepage: https://www.asus.com/accessories/docks-dongles-and-cable/asus-docks-dongles-and-cable/asus-triple-display-usb-c-dock-dc300/
Category Code: NBK
CnCode: 84733080
Unit Box Height: 0.23
Unit Box Length: 0.245
Unit Box Width: 0.065
Combo headphone/mic port: Yes
Connectivity technology: Docking
DC-in jack: Yes
DisplayPort version: 1.4
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 90
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10/100/1000
Cable lock slot: Yes
Cable lock slot type: Kensington
Card reader integrated: Yes
Compatible memory cards: SD
Housing material: Metal/Plastic
Maximum digital resolution: 3840 x 2160
Maximum refresh rate: 60
Number of displays supported: 3
Product colour: Black
Output current: 7.5
Output voltage: 20
Power source type: DC,USB
Power supply: 150
Mac operating systems supported: Yes
Windows operating systems supported: Windows 10
Depth: 80
Height: 32
Weight: 514
Width: 160
Quantity per pack: 1
AC adapter included: Yes
Manual: Yes
Stand included: Yes
Warranty card: Yes
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.003663
Unit Calculated Weight: 1.48
