Description: · 2-MP 1/2.8″ CMOS image sensor, low illuminance, high image definition.
· Outputs max. 2 MP (1920 × 1080) @25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in efficient IR illuminator, and the max. illumination distance is 30 m.
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access.
· 12 VDC/PoE power supply.
· IP67 protection
· 3.6 mm lens, 88° Field of View
Vendor Homepage: www.dahuasecurity.com/asset/upload/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1230T1-S5_datasheet_20210928.pdf

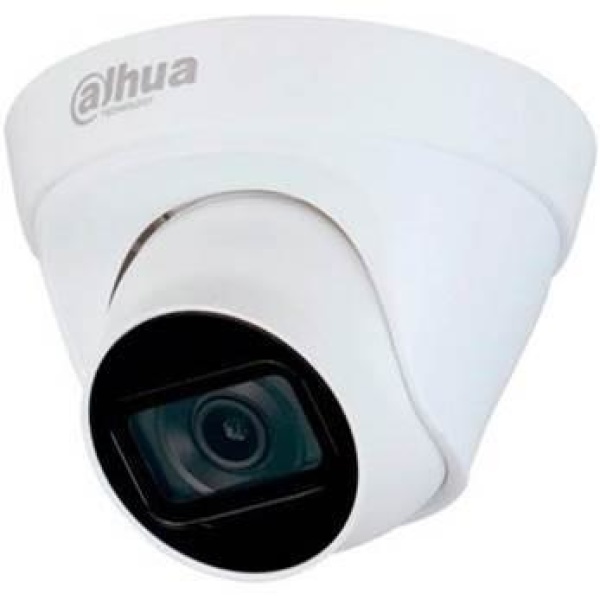

Model: IPC-HDW1230T1-0360B-S5
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 2
Focal Length: 3.6 mm
IR Illumination: Yes
Sensor size: 1/2.8″
Lens Mount: M12
Effective pixels: 1920 (H) × 1080 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
RJ45: 1
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 4.6
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Dimensions: 85.5 mm × Φ109 mm
Units per Shipping Box: 20
Shipping Box Depth: 71
Shipping Box Height: 25.6
Shipping Box Weight: 8.4
Shipping Box Width: 29.7
Unit Calculated Volume: 0.002699
Product Net Weight: 0.24
Unit Calculated Weight: 0.42
CnCode: 85258900
Unit Box Width: 0.139
Unit Box Length: 0.137
Unit Box Height: 0.115
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 3.6 mm|IR Illumination|Sensor size 1/2.8″|Lens Mount M12|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 85.5 mm × Φ109 mm
Category Code: FNC
