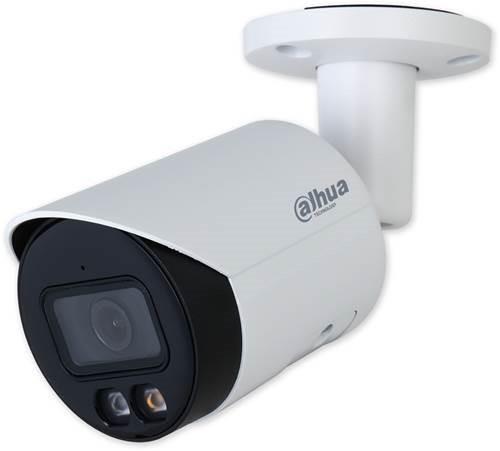

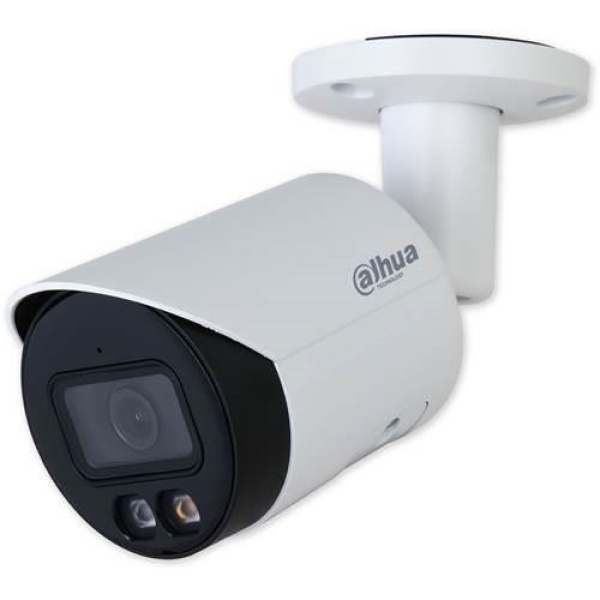

Description:
– 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
– Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
– 2.8 mm fixed lens (95°)
– Up to 30 meters Illumination: white warm light/IR LED
– True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
– H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
– No alarm I/O, no audio I/O, Built-in MIC
– Micro SD card up to 256GB supported
– Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
– Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2449S-S-IL
Model: IPC-HFW2449S-S-IL-0280B
Camera design: Bullet
Network Camera Type: Fixed/Outdoor
Pixel Resolution: 4
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.9″ CMOS
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0008
Effective pixels: Auto/Manual 1/3 s–1/100,000 s
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: PoE / 12VDC power
Power consumption: 7.3
Environment: Outdoor
Operating temperature range: -40°C~+60°C
Dimensions: 166.2 mm × 70 mm × 70 mm
Units per Shipping Box: 1
Shipping Box Depth: 20.5
Shipping Box Height: 11
Shipping Box Weight: 0.588
Shipping Box Width: 10
Unit Calculated Volume: 0.002255
Product Net Weight: 0.48
Unit Calculated Weight: 0.588
CnCode: 85258900
Unit Box Width: 0.1
Unit Box Length: 0.205
Unit Box Height: 0.11
Full Description Line: Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9″ CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Effective pixels Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 166.2 mm × 70 mm × 70 mm
Category Code: FNC
