Description:
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
- Outputs max. 4 MP (2688×1520) @25/30fps
- Built-in IR LED, and the max. illumination distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection
- SMD 3.0

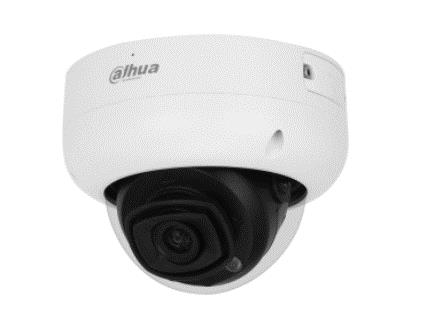

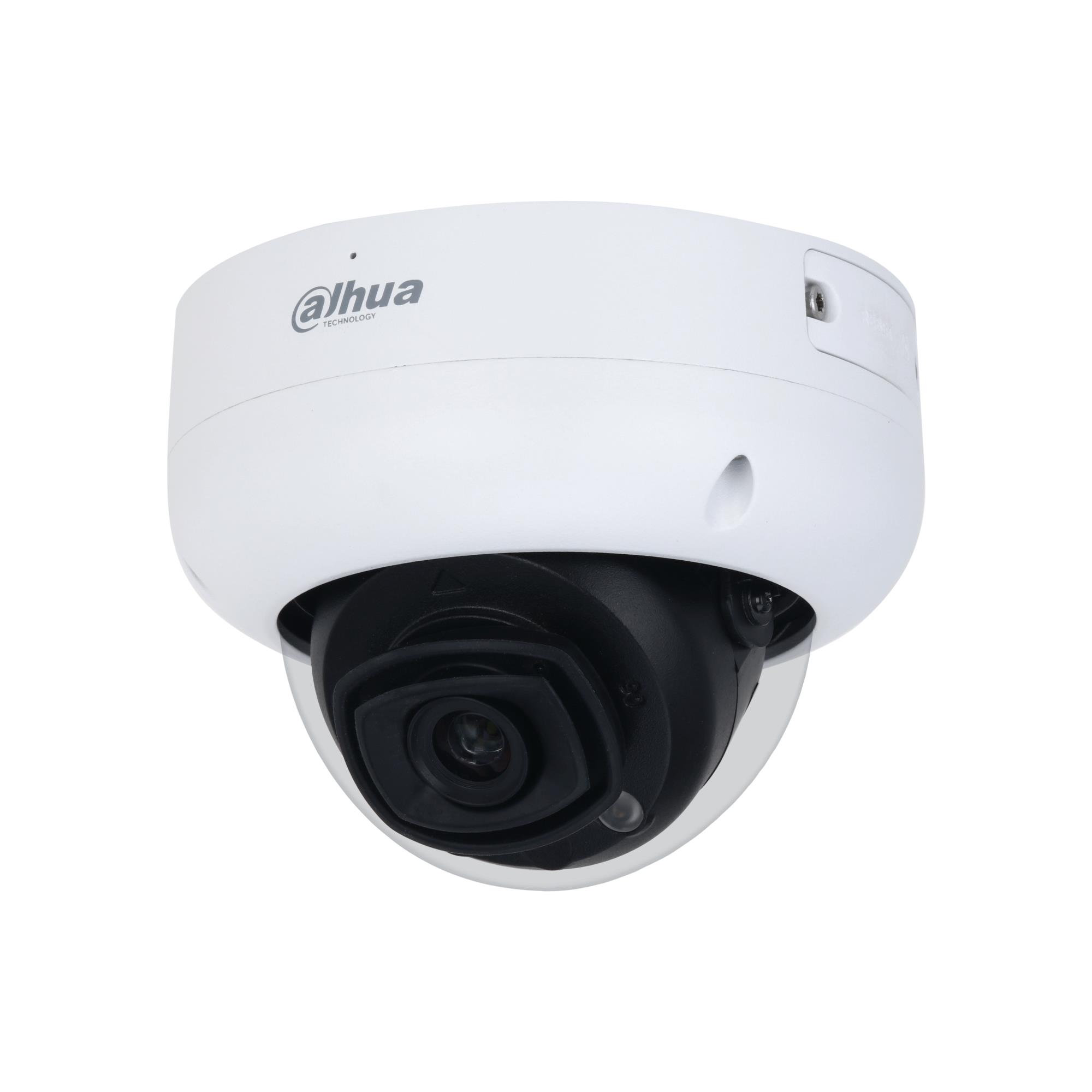

Summary: Dahua Technology WizMind IPC-HDBW5442R-ASE-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 89°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8″), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 50 m, Observe distance: 38.6 m, Recognize distance: 19.3 m
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDBW5442R-ASE=S3
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.15
Unit Box Width: 0.14
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: White
Alarm input/output: Yes
Certification: CE-LVD: EN60950-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355
Camera pan control: Yes
Camera shutter speed: 1/3 – 1/100000
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, horizontal: 89
Lens viewing angle, vertical: 48
Minimum illumination: 0.002
Pan range: 0 – 355
Tilt angle range: 0 – 75
Number of effective pixels (H x V): 2688 x 1520
Number of sensors: 1
Optical sensor size: 1/1.8
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.3
Detect distance: 50
Fixed focal length: 3.6
Identify distance: 9.7
Maximum aperture number: 1.6
Number of lenses: 1
Observe distance: 38.6
Recognize distance: 19.3
LED type: IR
Night vision: Yes
Night vision distance: 50
Number of illumination LEDs: 1
Back Light Compensation (BLC): Yes
Bit rate: 32 – 8192, 19 – 8192 Kbps
Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Flip & mirror: Yes
Frame rate: 30
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 4
Video compression formats: H.264/H.265/M-JPEG
Video streaming: Yes
Audio formats supported: AAC
Audio input channels: 1.0
Audio output channels: 1.0
Voice codecs: G.711a/G.711Mu/G.723/G.726
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af
Number of users: 20
Streaming method: Multicast/Unicast
Supported network protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512
Maximum memory card size: 256
ROM capacity: 128
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Abandoned object/Face detection/Missing object/People counting/Scene change/Tripwire
Video motion detection: Yes
Behavior analysis: Intrusion detection,Line crossing detection
Web browser: Yes
Web-based management: Yes
DC output voltage: 12
Power consumption (max): 6.1
Power source type: DC,PoE
Operating relative humidity (H-H): 0 – 95
Operating temperature (T-T): -30 – 60
Mobile operating systems supported: Android/iOS
Depth: 122
Diameter: 122
Height: 94
Weight: 712.9
Width: 122
Package weight: 986
Number of cameras: 1
Model: IPC-HDBW5442R-ASE-0280B-S3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00294
Unit Calculated Weight: 0.71
