Description:
– 1/2.7” 5Megapixel progressive CMOS, 2592×1944 @20FPS
– Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
– True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
– 2.8 mm fixed lens (111°)
– Up to 50 meters Smart IR Illumination
– H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
– 1/1 Audio I/O, 1/1 Alarm I/O
– Micro SD card up to 256GB supported, Built-in MIC
– Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 8.5W max
– Smart capabilities: Tripwire; intrusion, SMD 4.0, AI SSA
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541E-AS-S2
Model: IPC-HDBW3541E-AS-0280B-S2

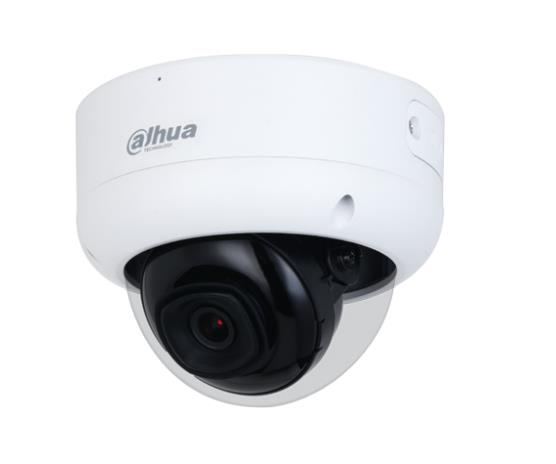

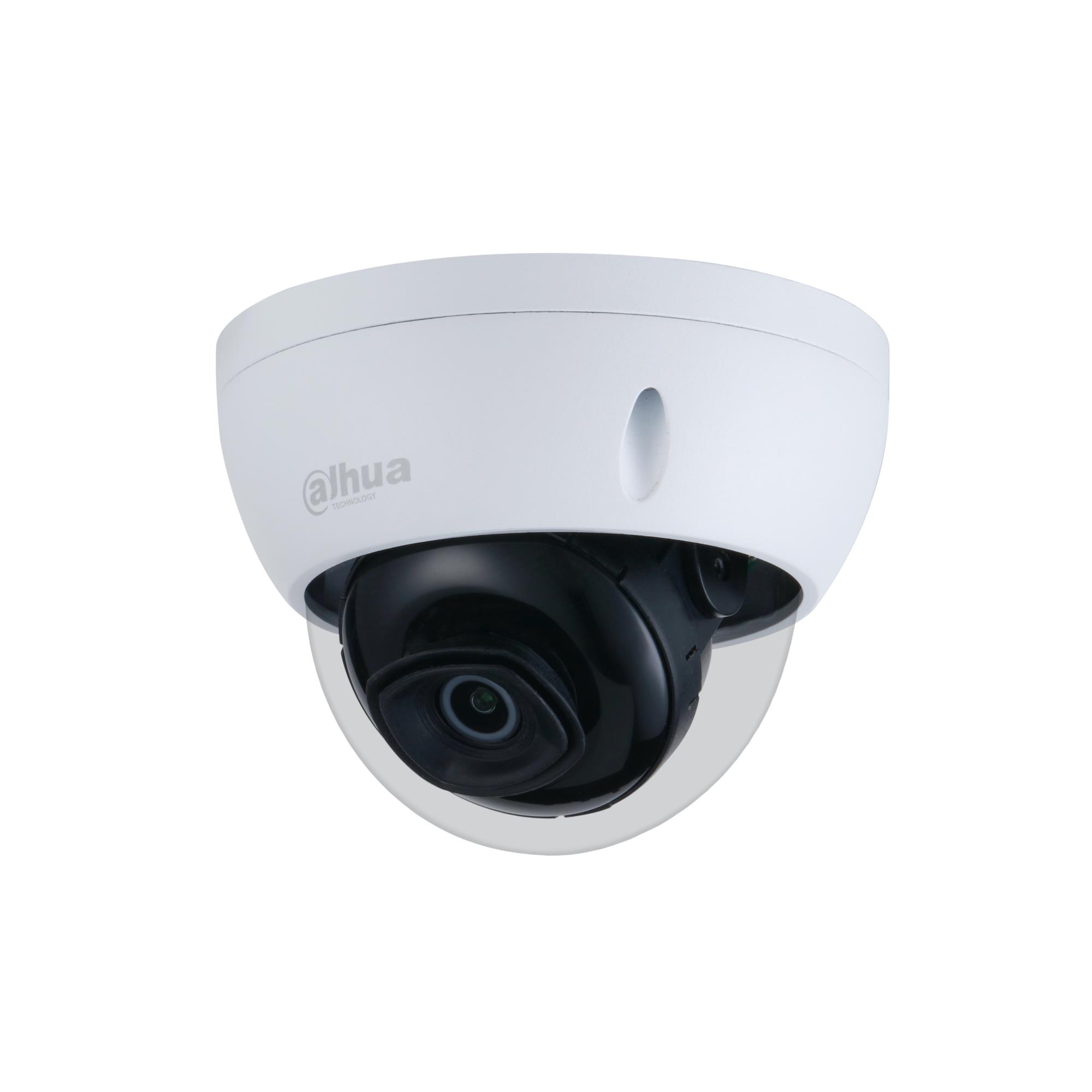

Camera design: Dome
Network Camera Type: Fixed Dome/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7” CMOS
Microphone: Built-in
Lens Mount: M12
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: PoE / 12VDC power
Power consumption: 8.5
Environment: Outdoor
Operating temperature range: -40°C~+60°C
Dimensions: 81 mm × Φ109.9 mm
Shipping box quantity: 1
Shipping Box Depth: 16
Shipping Box Height: 14
Shipping Box Weight: 0.7
Shipping Box Width: 16
Unit Brutto Volume: 0.003584
Unit Net Weight: 0.378
Unit Gross Weight: 0.7
CnCode: 85258900
Unit Box Width: 0.16
Unit Box Length: 0.16
Unit Box Height: 0.14
Full Description Line: Type Fixed Dome/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7” CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 81 mm × Φ109.9 mm
Category Code: FNC
