Description: 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @20FPS
Minimum illumination: 0.003 Lux @F1.0
True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
2.8 mm fixed lens (97°)
Up to 30 meters IR / visible white LED Illumination
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Built-in Mic and spearker
Red and blue flashlight alarm + siren sound
1/1 Alarm I/O, 1/1 audio I/O
Micro SD card up to 256GB supported
Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle). Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HDW3549H-AS-PV=S4
Model: IPC-HDW3549H-ASPV0280BS4

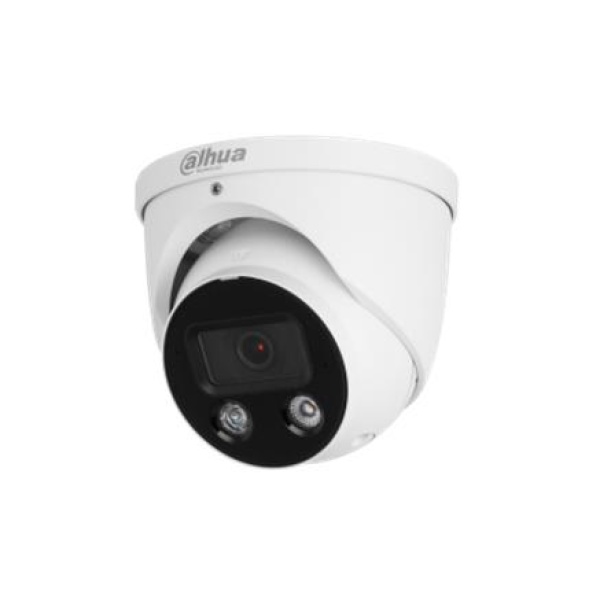

Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.003
Effective pixels: 2960 (H) × 1668 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: PoE / 12VDC power, 7.3W max
Power consumption: 7.3
Environment: Outdoor
Operating temperature range: -40°C~+60°C
Colour: White
Units per Shipping Box: 1
Shipping Box Depth: 15
Shipping Box Height: 14
Shipping Box Weight: 0.94
Shipping Box Width: 15
Unit Calculated Volume: 0.00315
Product Net Weight: 0.745
Unit Calculated Weight: 0.94
CnCode: 85258900
Unit Box Width: 0.15
Unit Box Length: 0.15
Unit Box Height: 0.14
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7″|Microphone Built-in|Lens Mount M12|Min. Illumination 0.003 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 7.3W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White
Category Code: FNC
