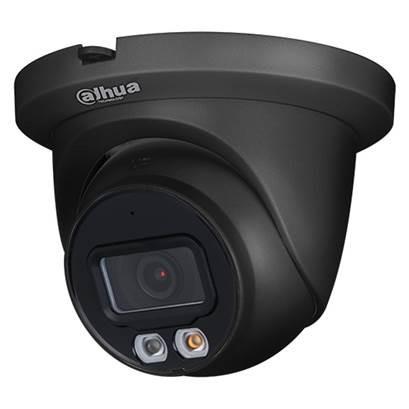

Description: 5MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2549TM-S-IL
Model: IPC-HDW2549TM-S-IL-0280B-B
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 5
IR Illumination: Yes
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0007
Effective pixels: 2960 (H) × 1668 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: Black
Dimensions: 99.1 mm × Φ121.9 mm
Units per Shipping Box: 1
Shipping Box Depth: 14
Shipping Box Height: 11.5
Shipping Box Weight: 0.66
Shipping Box Width: 14
Unit Calculated Volume: 0.002254
Product Net Weight: 0.48
Unit Calculated Weight: 0.66
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.14
Unit Box Height: 0.115
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 99.1 mm × Φ121.9 mm
Category Code: FNC
