Description: IPC-PDW5849-A180-E2-ASTE

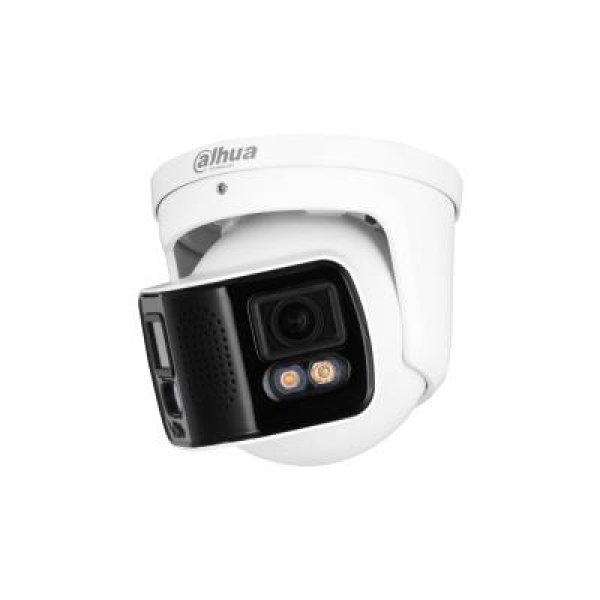

2×4MP Full-color Duo Splicing WizMind Network Camera
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1800)@25 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD3.0.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/Full-color/IPC-PDW5849-A180-E2-ASTE
Model: PDW5849-A180-E2-ASTE-0360B
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 8
IR Illumination: Yes
Sensor size: 1/1.8″
Microphone: Built-in
Lens Mount: M16
Min. Illumination: 0.0002
Effective pixels: 4096 (H) × 1800 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power supply requirements: 12 VDC (±30%)/PoE+ (802.3at)/ePoE
Power consumption: 5.5
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: White
Dimensions: Φ122 × 131.9 mm
Units per Shipping Box: 1
Shipping Box Depth: 17
Shipping Box Height: 17
Shipping Box Weight: 1.2
Shipping Box Width: 17
Unit Calculated Volume: 0.004913
Product Net Weight: 0.99
Unit Calculated Weight: 1.2
CnCode: 85258900
Unit Box Width: 0.17
Unit Box Length: 0.17
Unit Box Height: 0.17
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|IR Illumination|Sensor size 1/1.8″|Microphone Built-in|Lens Mount M16|Min. Illumination 0.0002 Lux|Effective pixels 4096 (H) × 1800 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC (±30%)/PoE+ (802.3at)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions Φ122 × 131.9 mm
Category Code: FNC
