Description:
– 1/2.7” 8Megapixel progressive CMOS
– 8MP 3840 × 2160 @ 20FPS (2688 × 1520 @ 30FPS)
– Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux @ F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
– Up to 30 meters IR Illumination / visible warm white light
– True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR
– Fixed lens 2.8 mm (111°)
– H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
– Micro SD Card slot, up to 256GB
– Built-in MIC
– Metal case, Eyeball design, IP67, -40°C~+55°C, PoE / 12VDC power
– General IVS Analytics: Intrusion; tripwire (detection of vehicle and human)
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2849TM-S-IL

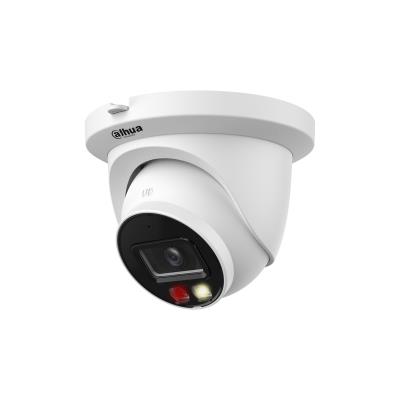

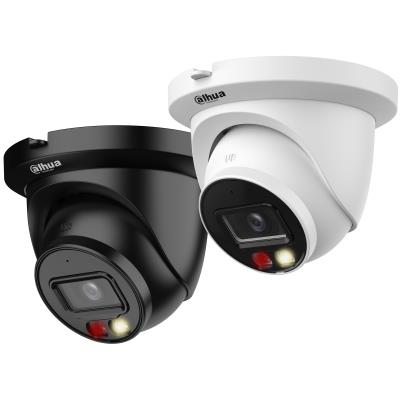

Model: IPC-HDW2849TM-S-IL-0280B
Camera design: Eyeball
Network Camera Type: Fixed
Pixel Resolution: 8
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Lens Mount: M12
Electronic Shutter Speed: 1/3 s–1/100,000 s
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 2.6
Environment: Outdoor
Operating temperature range: –40 °C to +55 °C
Colour: White
Dimensions: 99.1 mm × Φ121.9 mm
Shipping box quantity: 1
Shipping Box Depth: 13.8
Shipping Box Height: 11.5
Shipping Box Weight: 0.7
Shipping Box Width: 13.8
Unit Brutto Volume: 0.00219
Unit Net Weight: 0.48
Unit Gross Weight: 0.7
CnCode: 85258900
Unit Box Width: 0.138
Unit Box Length: 0.138
Unit Box Height: 0.115
Full Description Line: Type Fixed|Pixel Resolution 8 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +55 °C|Colour White|Dimensions 99.1 mm × Φ121.9 mm
Category Code: FNC
