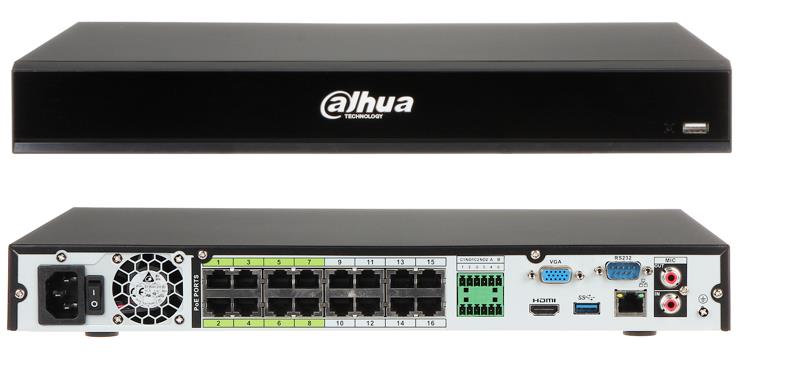

Description: 16 IP channel max, up to 24MP resolution
Record Rate 320 Mbps (160 Mbps when AI function enabled)
VGA/HDMI up to 3840×2160 output
16-ch synchronous playback
2 SATA interfaces, up to 10 TB for a single HDD, Gigabit LAN
PoE: Max 25.5W for single port, 130W total rated power, 80% control for protection, 16 ports (IEEE802.3af/at), 1-8 PoE Ports support ePoE & EoC
Up to 4 Channel video metadata, Up to 12 Channel perimeter protection, SMD Plus, Up to 4 Channel video stream face recognition, Up to 16 face pictures/sec processing, Up to 20 face databases with 200,000 face images in total
No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB
1U 19” chassis, mouse included
Free IP monitoring software available
Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc., ONVIF Version 2.4 conformance
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Recorders/WizMind-Series/NVR5-I/L/2HDD/NVR5216-16P-I/L
Number of Channels: 16
Number of drives/bays: 2
Desktop/pedestal: Yes
SATA: Yes
15pin D-sub: 1
Alarm In: 4
Alarm Out: 2
Audio-In: 1
Audio-Out: 1
HDMI: 1
RS232: 1
RS-485: 1
USB 2.0: 1
USB 3.0: 1
PoE ports: 16
Dimensions: 375.0 × 327.4 × 53.0mm
Operating temperature range: -10°C to +55°C
Shipping box quantity: 1
Shipping Box Depth: 45
Shipping Box Height: 42
Shipping Box Weight: 4
Shipping Box Width: 17
Unit Brutto Volume: 0.03213
Unit Net Weight: 2.7
Unit Gross Weight: 4
CnCode: 85219000
Unit Box Width: 0.17
Unit Box Length: 0.45
Unit Box Height: 0.42
Full Description Line: Channels 16|Drives/bays 2|Desktop/pedestal|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|1xUSB 2.0|1xUSB 3.0|1xRS-485|4xAlarm In|2xAlarm Out|Dim. 375.0 × 327.4 × 53.0mm|Temp. range -10°C to +55°C
Category Code: NVR
