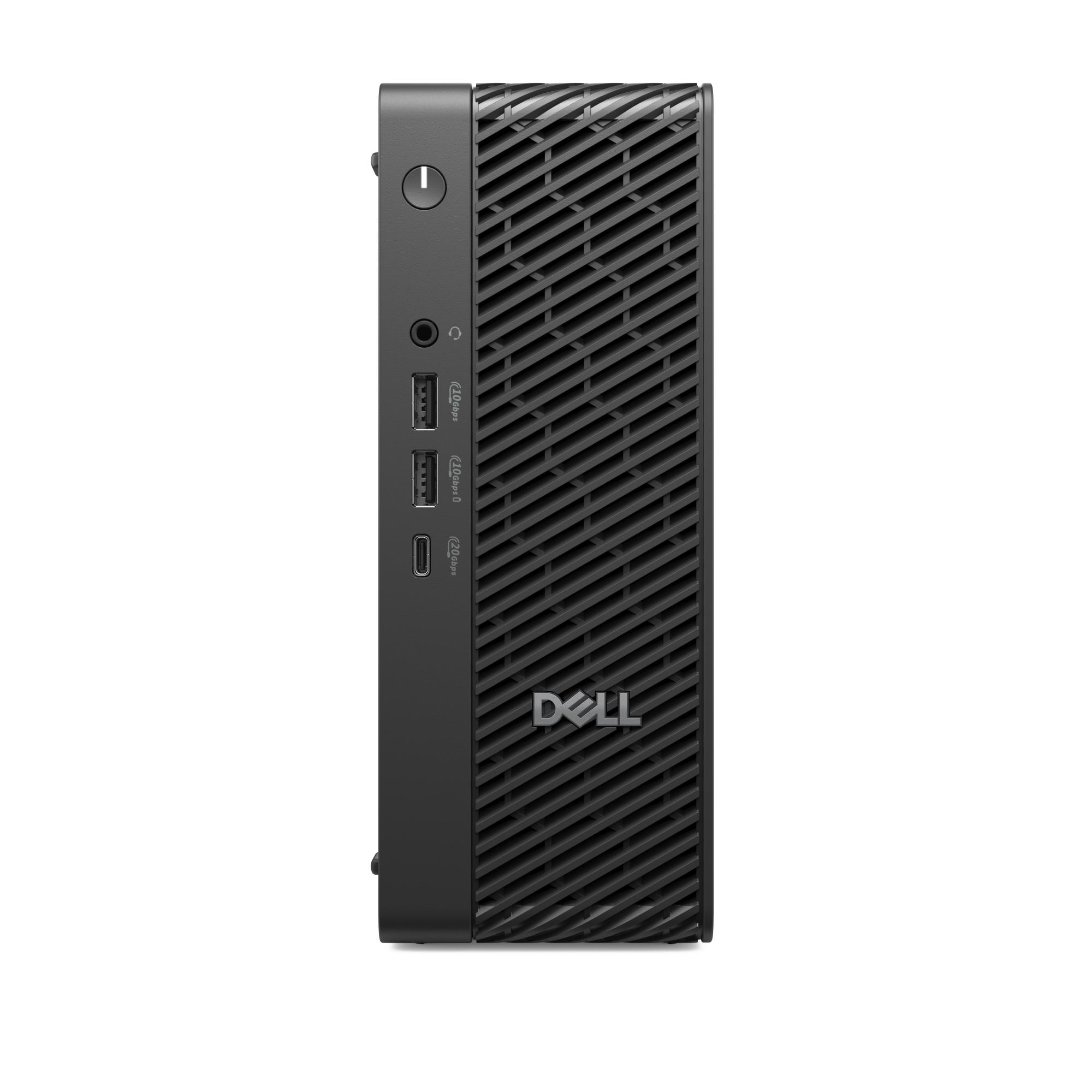

Summary: DELL Pro Max FCM2250. Processor family: Intel Core Ultra 7, Processor model: 265U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 280 W. Chassis type: Micro PC. Product type: PC. Weight: 2.54 kg. Product colour: Black
Vendor Homepage: www.dell.com/en-us/shop/desktop-computers/dell-pro-max-micro-desktop/spd/dell-pro-max-fcm2250-micro/xcto_fcm2250_usx
Category Code: DT
CnCode: 84714900
Unit Box Height: 0.213
Unit Box Length: 0.597
Unit Box Width: 0.27
Efficient cores: 8
Efficient-core base frequency: 1.7
Efficient-core Max Turbo Frequency: 4.2
Low Power Efficient-core Base Frequency: 700
Low Power Efficient-core Max Turbo Frequency: 2.4
Low Power Efficient-cores: 2
Maximum turbo power: 57
Number of processors installed: 1
Performance cores: 2
Performance-core base frequency: 2.1
Performance-core Max Turbo Frequency: 5.3
Processor base power: 15
Processor boost frequency: 5.3
Processor cache: 12
Processor cores: 12
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor model: 265U
Processor threads: 14
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Y
Windows Studio effects support: Y
Internal memory: 16
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64
Memory channels: Single-channel
Memory data transfer rate: 5600
Memory layout (slots x size): 1 x 16
Memory slots: 2x SO-DIMM
Non-ECC: Y
M.2 SSD size: 2280 (22 x 80 mm)
Number of SSDs installed: 1
Number of storage drives installed: 1
Number of storage drives supported: 2
NVMe: Y
Optical drive type: N
SSD capacity: 512
SSD form factor: M.2
SSD interface: PCI Express 4.0
SSD memory type: TLC
Storage media: SSD
Total SSDs capacity: 512
Total storage capacity: 512
Discrete graphics card: Y
Discrete graphics card memory: 4
Discrete graphics card model: NVIDIA RTX A400
Discrete graphics memory type: GDDR6
Graphics card Mini DisplayPort ports quantity: 4
Number of discrete graphics cards: 1
On-board GPU manufacturer: Intel
On-board graphics card: Y
On-board graphics card family: Intel Graphics
On-board graphics card model: Intel Graphics
Antenna type: 2×2
Bluetooth: Y
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Y
Ethernet LAN data rates: 10/100/1000
LAN controller: Intel I219-LM
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Y
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 7 BE200
Combo headphone/mic port: Y
DC-in jack: Y
DisplayPort version: 1.4a
DisplayPorts quantity: 3
Ethernet LAN (RJ-45) ports: 1
Number of front audio ports: 1
Number of front USB ports: 3
Number of rear USB ports: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Cable lock slot: Y
Cable lock slot type: Kensington
Chassis type: Micro PC
Intel® vProT Platform Eligibility: Y
Product colour: Black
Audio chip: Realtek ALC3204
Audio system: High Definition Audio
Market positioning: Business
Motherboard chipset: Intel W880
Product type: PC
Trusted Platform Module (TPM): Y
Trusted Platform Module (TPM) version: 2.0
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: McAfee Business Protection 1-year,No Microsoft Office License included (Fed and Premier, Exception Only)
Power supply: 280
Power supply input frequency: 50 / 60
Power supply input voltage: 100 – 240
Non-operating altitude: -15.2 – 10668
Non-operating shock: 160
Non-operating vibration: 1.3
Operating altitude: -15.2 – 3048
Operating relative humidity (H-H): 10 – 90
Operating shock: 110
Operating temperature (T-T): 0 – 35
Operating vibration: 0.66
Storage relative humidity (H-H): 0 – 95
Storage temperature (T-T): -40 – 65
Sustainability certificates: ENERGY STAR/EPEAT Climate +/EPEAT Gold
Depth: 178
Height: 206
Weight: 2540
Width: 79.3
Display included: N
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.03433
Unit Calculated Weight: 4.67
