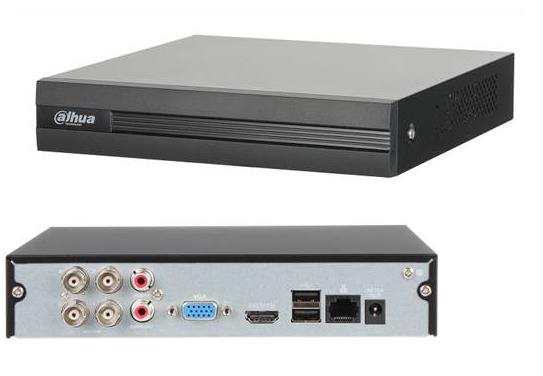

DVR 4CH HDCVI PENTABRID/XVR1B04-I DAHUA

Description:

4 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder

Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)
IP: Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant
SMD Plus: Search by target classification (Human, Vehicle)
G.711A; G.711U; PCM video/audio compression
1x SATA interface up to 6TB storage
VGA/HDMI up to Full HD output, RJ-45, 2x USB ports
No front panel control, 1/1 Audio I/O, no Alarm I/O
Mini 1U case, mouse included
P2P, Coaxial Audio/Alarm/Upgrade
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Free IP monitoring software available


Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B04-I
Category Code: STD
CnCode: 85219000
Unit Box Height: 0.255
Unit Box Length: 0.335
Unit Box Width: 0.1
SATA: Yes
15pin D-sub: 1
HDMI: 1
Audio-In: 1
Audio-Out: 1
USB 2.0: 2
RJ45: 1
DVR type: 4 Channel
Camera Compatibility: AHD 1080P/AHD 720P/Analog/HDCVI 1080P/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 720P/IP
Number of channels: 4
Power supply requirements: DC 12 V/1.5 A
Dimensions: 198 × 202.9 × 41.5mm
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
