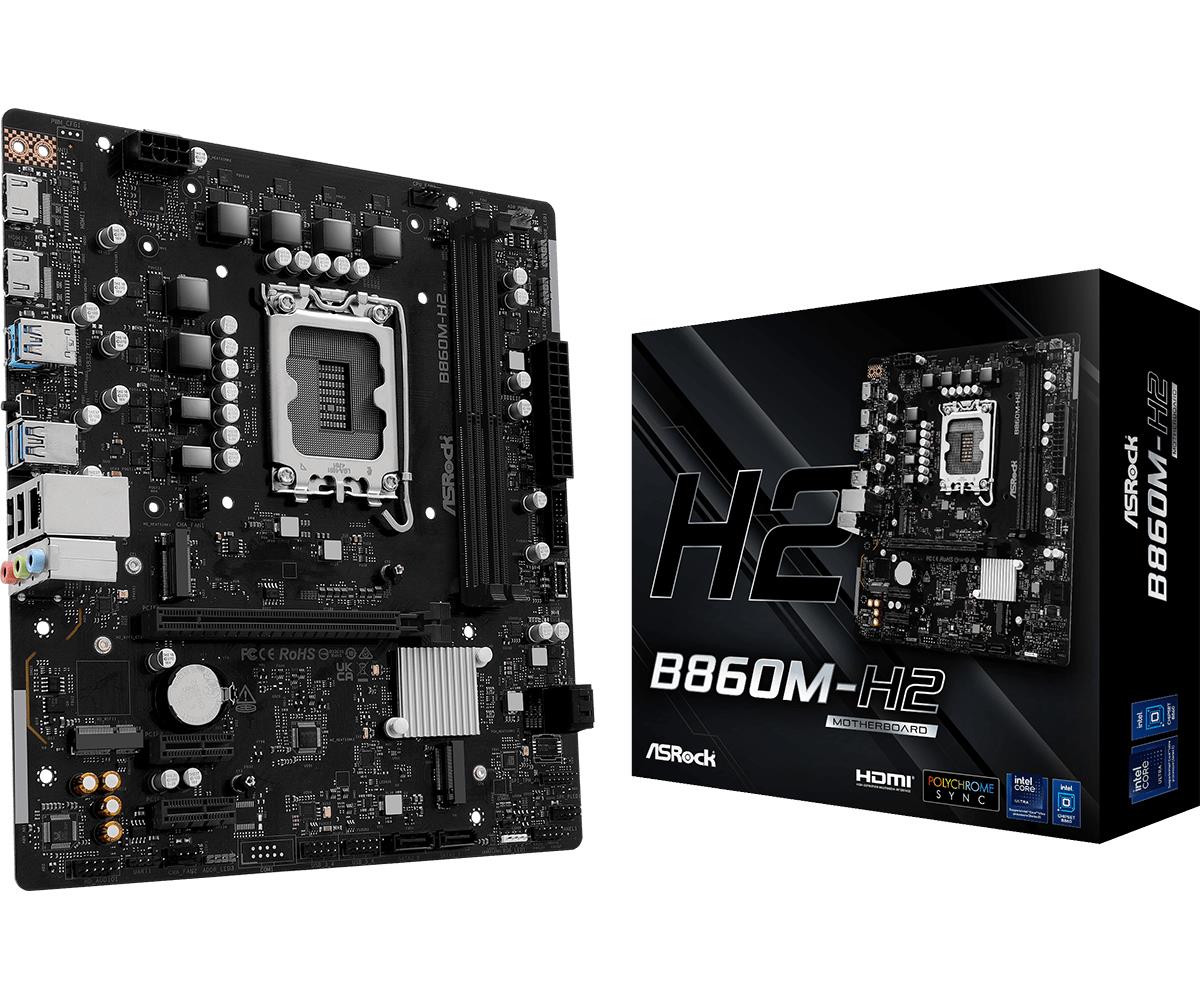

Mainboard ASROCK Intel B860 Express LGA1851 Micro-ATX Memory DDR5 Memory slots 2 B860M-H2

Description:

B860M-H2
Built to deliver reliable performance with versatile features, perfect for daily tasks.

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 5+1+1+1+1 Power Phase
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 8333+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Blazing M.2 (PCIe Gen5x4)
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 USB 3.2 Gen2x2 Type-C (Rear)
• 1 USB 3.2 Gen1 Type-C (Front)
• 5 USB 3.2 Gen1 (3 Rear, 2 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Realtek Gigabit LAN
• Supports BIOS Flashback

Vendor Homepage: https://www.asrock.com/MB/Intel/B860M-H2/index.asp
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.06
Unit Box Length: 0.28
Unit Box Width: 0.24
M.2: 3
PCI-Express 4.0 16x: 1
PCI-Express 4.0 1x: 2
Audio port: 3
HDMI: 2
RJ45: 1
USB 2.0: 2
USB 3.2 type B: 3
USB-C: 1
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
Model: B860M-H2
Chipset: Intel B860 Express
Socket: LGA1851
Form Factor: Micro-ATX
Memory type: DDR5
Memory slots: 2
Integrated video: Depending on CPU
Integrated LAN: Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
Included Accessories: – 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Units per Pallet: 0
Units per Shipping Box: 20
Unit Calculated Volume: 0.004423
Product Net Weight: 0.5
Unit Calculated Weight: 0.798
