Description:
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN

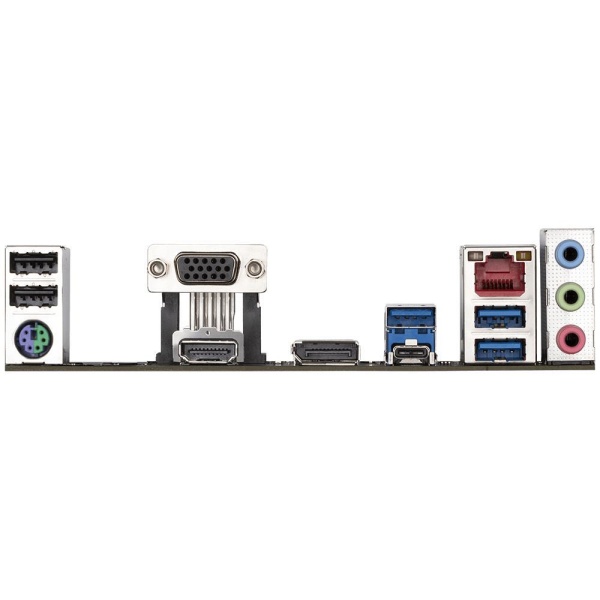

- Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Vendor Homepage: www.gigabyte.com/Motherboard/B760M-GAMING-DDR4-rev-10
Model: B760M GAMING DDR4 1.1
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
Memory slots: 2
M.2: 2
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
15pin D-sub: 1
Audio-In: 2
Audio-Out: 1
DisplayPort: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 3
USB-C: 1
SATA: Yes
Integrated video: Yes
Integrated LAN: 2.5 Gigabit
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Shipping Box Depth: 57
Shipping Box Height: 29
Shipping Box Weight: 9.55
Shipping Box Width: 29
Unit Calculated Volume: 0.004794
Product Net Weight: 0.64
Unit Calculated Weight: 0.955
CnCode: 84733020
Category Code: MBI
Full Description Line: Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|SATA|Video|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
