Networking standards
IEEE 802.11ac/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v
Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save money and save time
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

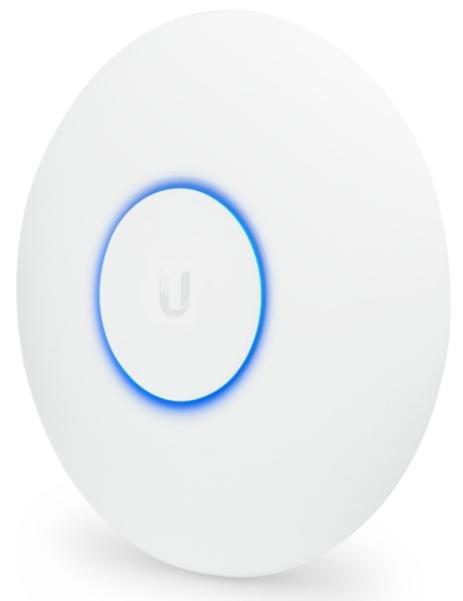

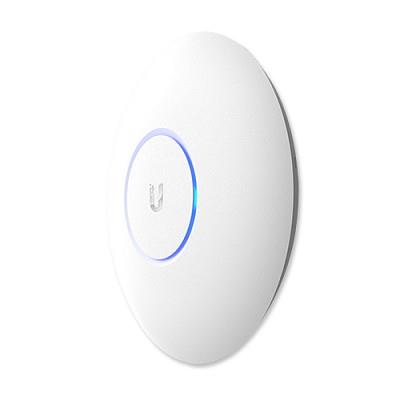

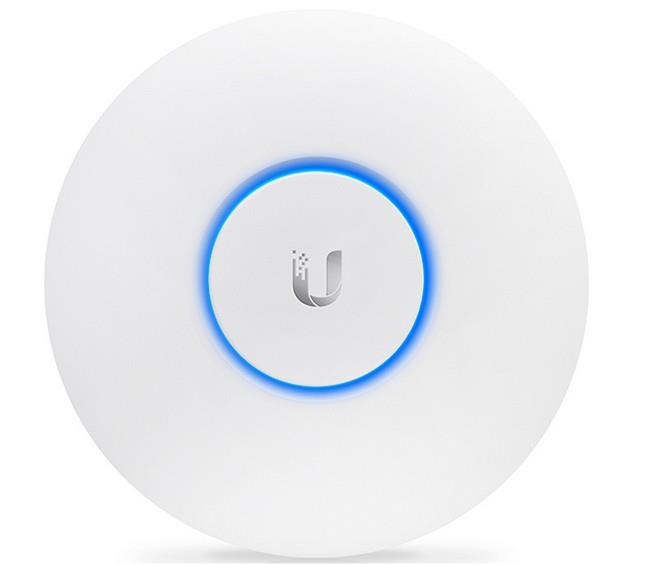

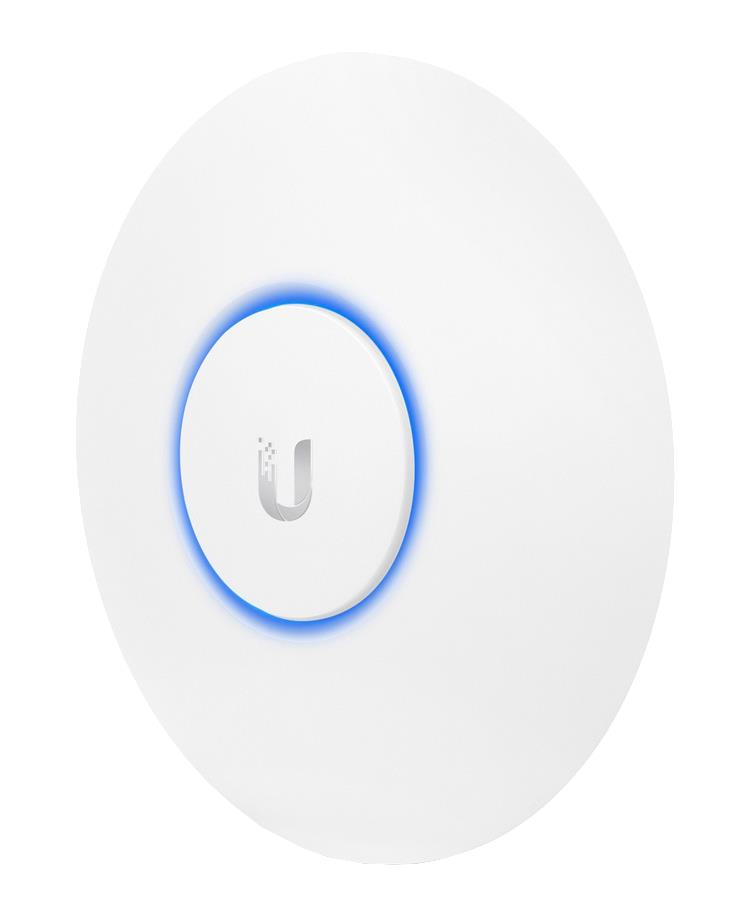

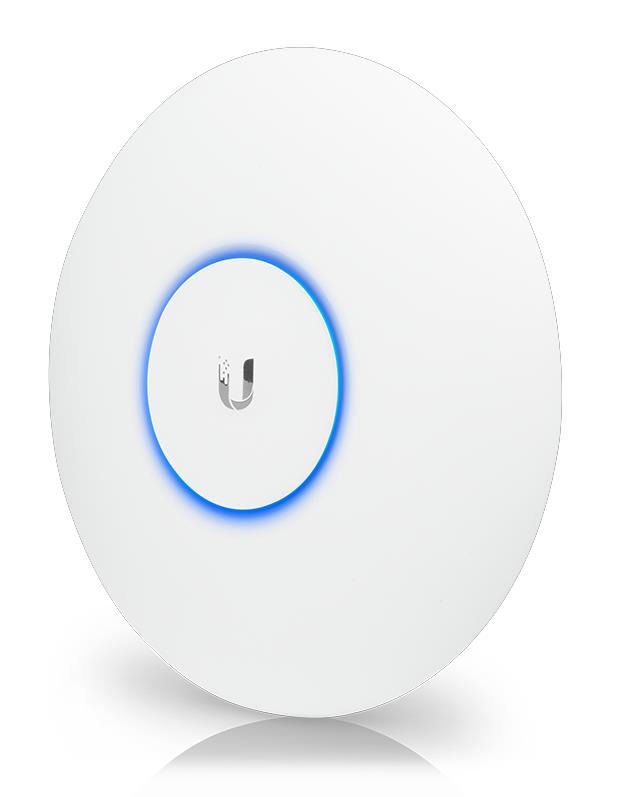

UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance.
Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five‑packs.
Specifikacijos
| Vendor Homepage | https://dl.ubnt.com/ |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.23 |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 1300 Mbit/s |
| Maximum indoor range | 122 m |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Security algorithms | AES/TKIP/WEP/WPA/WPA2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| AC input voltage | 48 V |
| Input current | 0.5 A |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Internal | No |
| Product colour | White |
| Reset button | Yes |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 3 |
| Certification | CE, FCC, IC |
| Depth | 196.7 mm |
| Height | 35 mm |
| Weight | 350 g |
| Width | 196.7 mm |

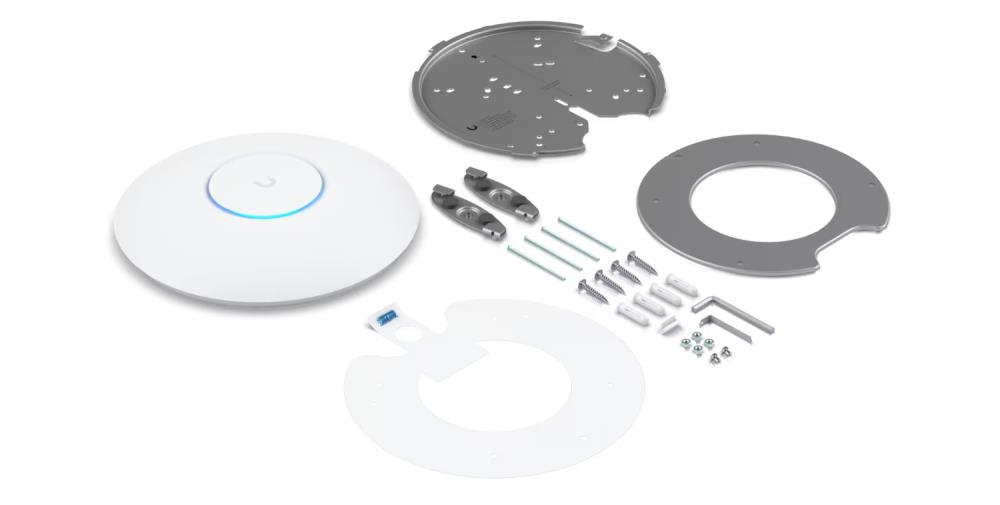

| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 70 °C |
| Harmonized System (HS) code | 85176990 |
| Product Net Weight | 0.45 kg |
| Shipping Box Depth | 51 cm |
| Shipping Box Height | 33 cm |
| Shipping Box Weight | 10 kg |
| Shipping Box Width | 32 cm |
| Unit Calculated Volume | 0.005386 cubm |
| Unit Calculated Weight | 1 kg |
| Units per Shipping Box | 10 |
| Model name | UAP-AC-PRO |
